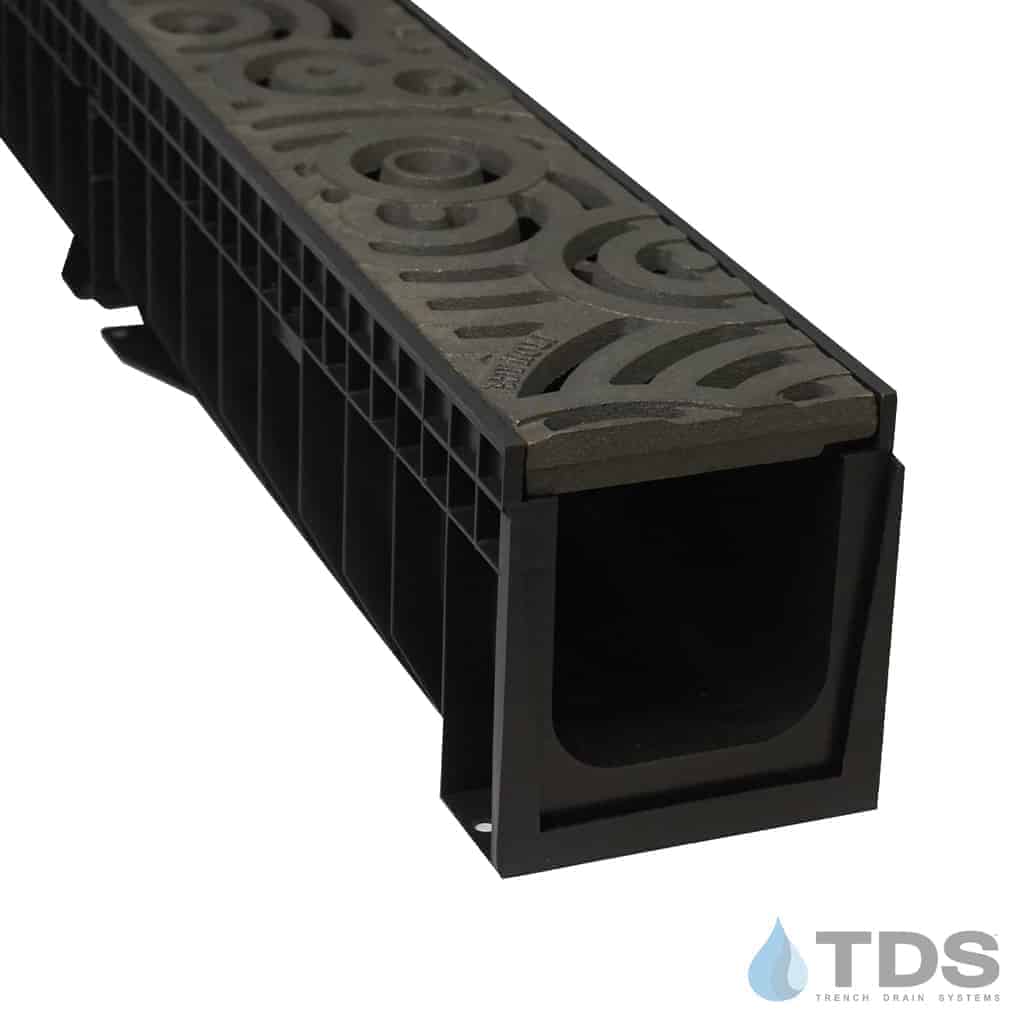

ULMA HYDROPLUS with Iron Age OA5-20I21 / IA-OBLIO-0520 Oblio Raw Cast Iron Grate Class B

SKU: HYDRO-IA-OBLIO

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

$410.36$2,645.72

HYDROPLUS Kit Includes:

  • 1M (3.3 ft) polypropylene channel sections
  • (2) Oblio cast iron raw finish grates per 1M channel Specification Sheet
  • Qty.1, closed end inlet cap (HYDRO-CE) per kit
  • Qty.1, open end outlet cap (HYDRO-OE) per kit
  • Two locking bars (LD100-3) and two screws per 1M channel section

New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Oblio Cast Iron – Raw Finish Grate (IA-OBLIO-0520) is rated as a Load Class B, and measures 19.6 in X 4.80 in. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed. Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.



ULMA Hydro Plus drawing

Oblio IA-OBLIO-0520 Grate Specification Sheet Iron Age Cast Iron Oblio 5x20 Grate

CLICK HERE for HYDROPLUS Installation Instructions

CLICK HERE for ULMA Declaration of Conformity

NOTE: For proper installation, grates must be in channel during installation.

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Your #1 Trench Drain Supply Resource!

Kit Meter Length

, , , , , ,

Manufacturer

ULMA

Load Class

Load Class B

Grate Width

5 inch

Application

Animal and Zoo, Greenhouse, Municipal, Patio, Pool and Spa, Poolside, Residential

Grate Pattern

Channel Material

Plastic

Product Type

Drainage Kit

Grate Finish

,

Finish Type

,

System

HYDROPLUS

CSI Code 22 00 00, 22 14 00, 22 14 26, 22 14 26.19, 33 30 00, 33 40 00, 33 44 00, 33 44 13, 33 44 16, 33 46 13
