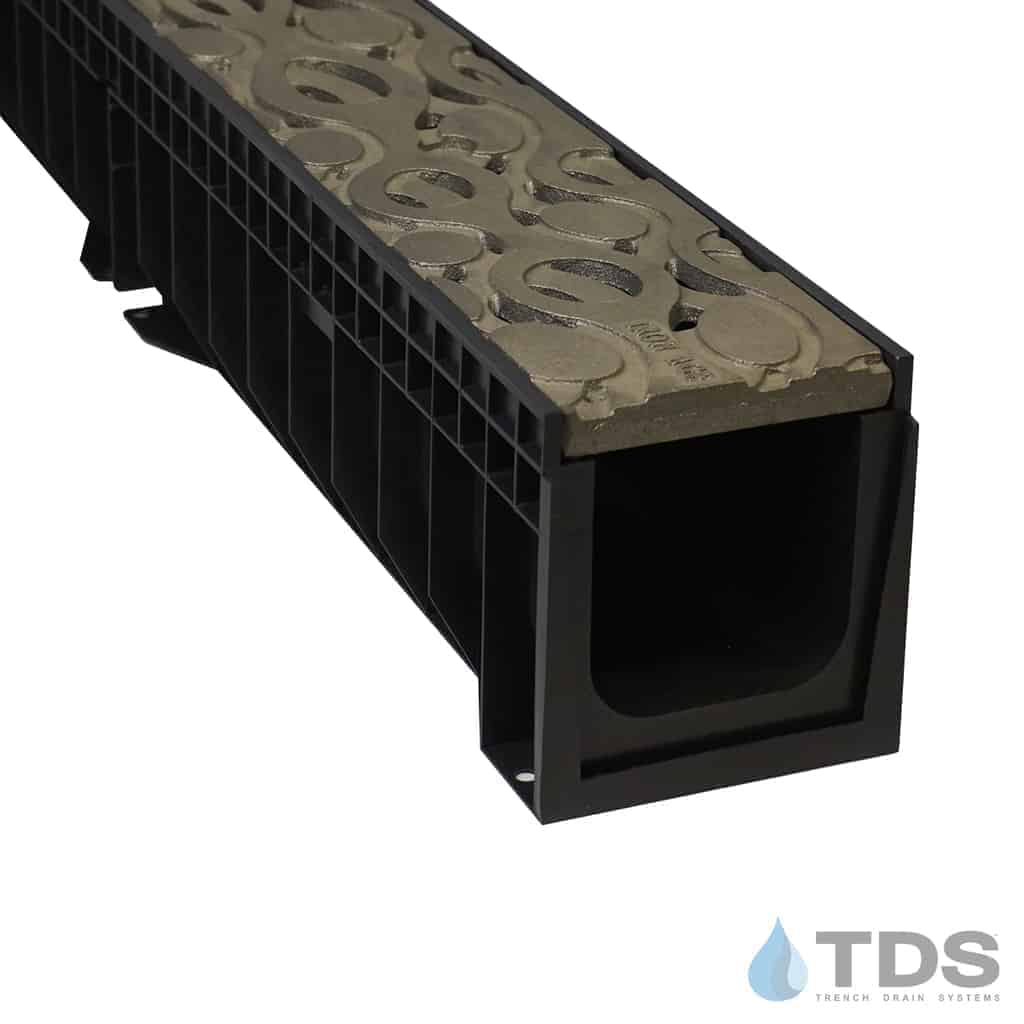

ULMA HYDROPLUS with Iron Age JA5-20I21 / IA-JANIS-0520 Janis Raw Cast Iron Grate Class B
$382.08 – $2,447.76
Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices
HYDROPLUS Kit Includes:
- 1M (3.3 ft) polypropylene channel sections
- Janis Cast Iron Grate – Raw Finish 122mm x 500mm; Qty.2 grates per 1M channel section
- Qty.1, closed end inlet cap (HYDRO-CE) per kit
- Qty.1, open end outlet cap (HYDRO-OE) per kit
- Two locking bars (LD100-3) and two screws per 1M channel section
New from ULMA, the HYDROPLUS is a polypropylene trench drain for pedestrian and occasional car traffic for areas of low hydraulic requirements. Channel external width is 138mm, internal width 100mm and overall height 148mm and 1 meter in length. The HYDROPLUS is compatible with the same full line of grates as offered for the ULMA polymer concrete channels, offering a wide variety of options. The HYDROPLUS with the Janis Cast Iron – Raw Finish Grate (IA-JANIS-0520) is rated as a Load Class B, and measures 19.6 in X 4.80 in. (2 grates per 1M channel section.) Channels are marked to aid in cutting to 0.5M length if needed.
Janis IA-JANIS-0520 Grate Specification Sheet
CLICK HERE for HYDROPLUS Installation Instructions
CLICK HERE for ULMA Declaration of Conformity
NOTE: For proper installation, grates must be in channel during installation.
Your #1 Trench Drain Supply Resource!
| Grate Pattern | |
|---|---|
| System | HYDROPLUS |
| Kit Meter Length | 1 Meter (3'-3"), 2 Meter (6'-7"), 3 Meter (9'-11"), 4 Meter (13'-1"), 5 Meter (16'-5"), 6 Meter (19'-8"), 7 Meter (22'-11") |
| Load Class | Load Class B |
| Manufacturer | ULMA |
| Product Type | Drainage Kit |
| Grate Width | 5 inch |
| Application | Animal & Zoo, Driveway Drainage, Greenhouse, Municipal, Patio, Pool & Spa, Poolside, Residential |
| Channel Material | Plastic |
| Finish Type | |
| Grate Finish |
