ULMA 438 Wedge Wire Reinforced 316L Stainless Steel 122mm x 1M Grate ADA Compliant | Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class C

Grate Pattern: WEDGE WIRE

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

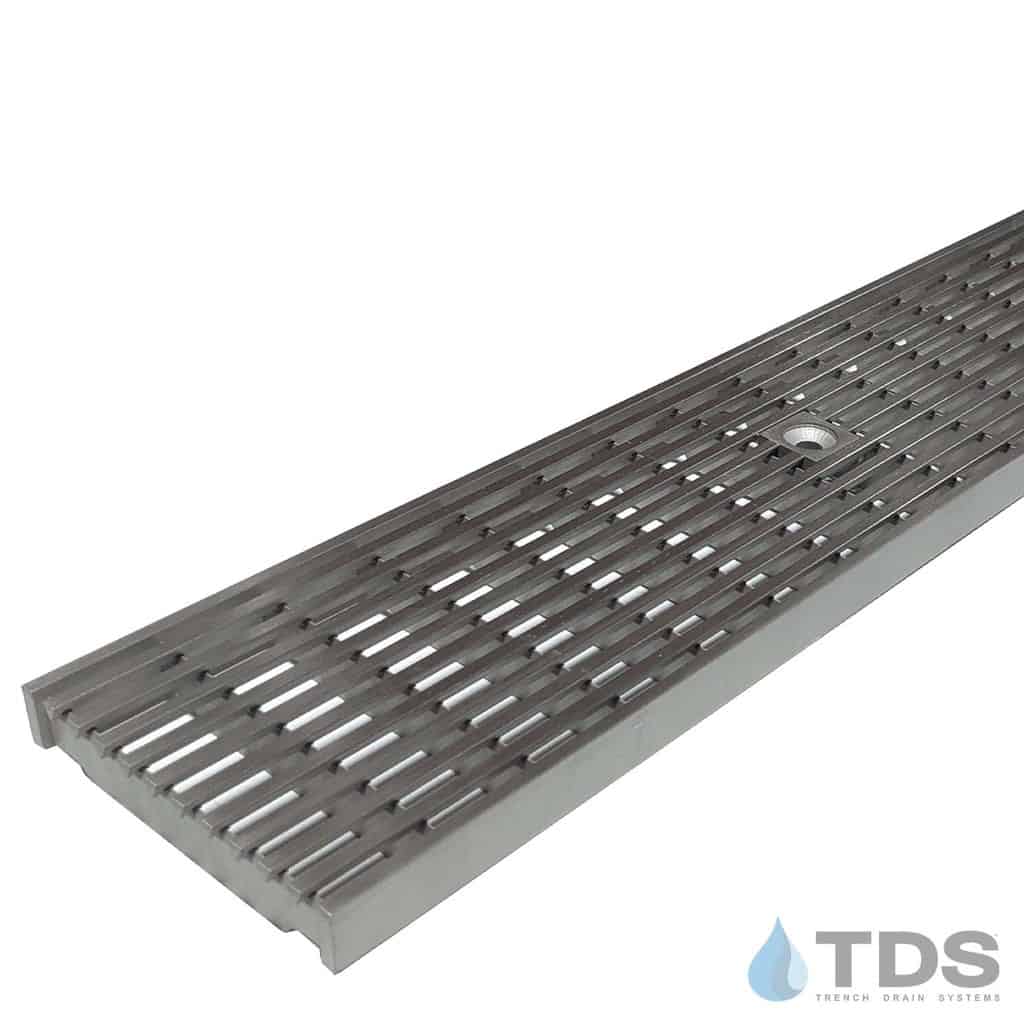

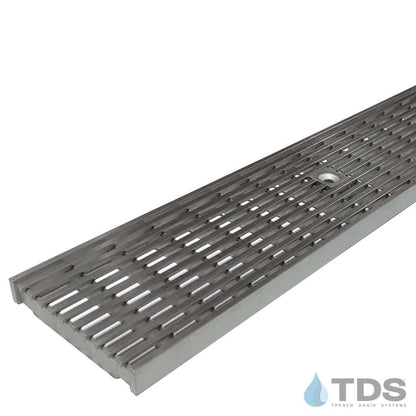

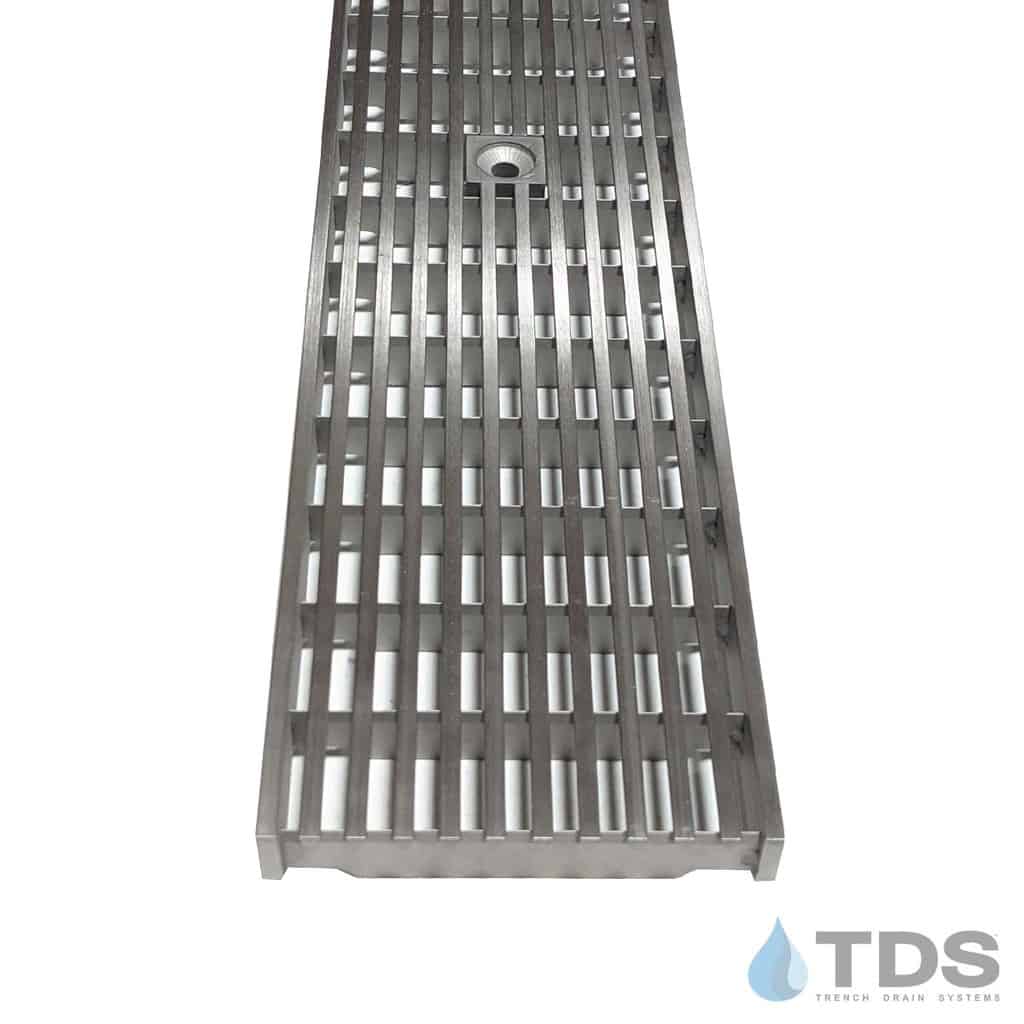

This 316L Marine Grade Stainless Steel Wedge Wire Grate is 122mm (4.80") wide and 1M (39.3") in length and is ADA compliant.

This grate has a Load Class C rating for high traffic areas such as driveways and parking lots. The 316L stainless steel material is marine grade and saltwater resistant to withstand the corrosive environments of pools, spas, kennels, zoos, breweries, wineries and food processing facilities.

Stainless Steel Reinforced Wedge Wire Grate (1M) – Class C, ADA Compliant
For use with ULMA, MEArin, ABT and other metric trench drain systems

Salt Water Grade

Large project? Request a Quote

Locking device sold separately:

• The LD100X-1 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-1 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.

Reinforced Stainless Steel Wedge Wire 438 (1M) Specification Sheet
