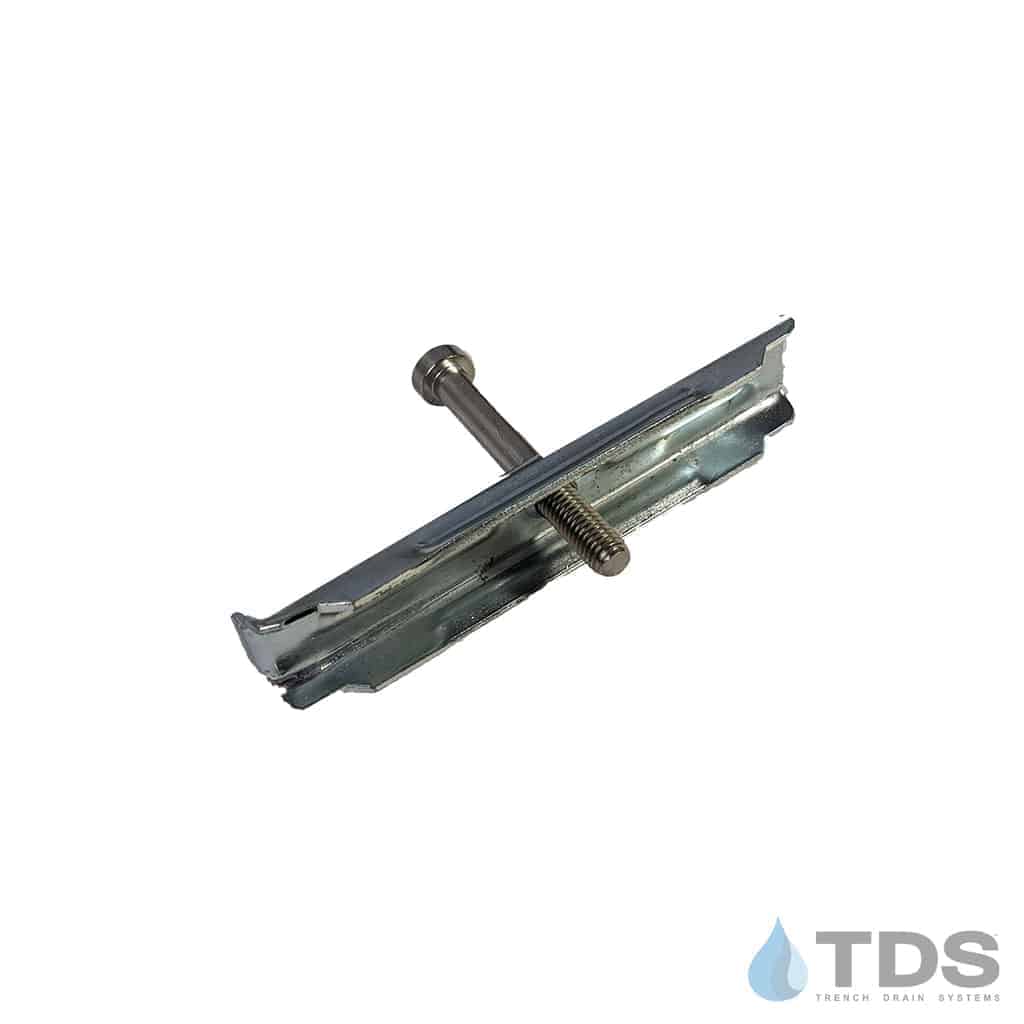

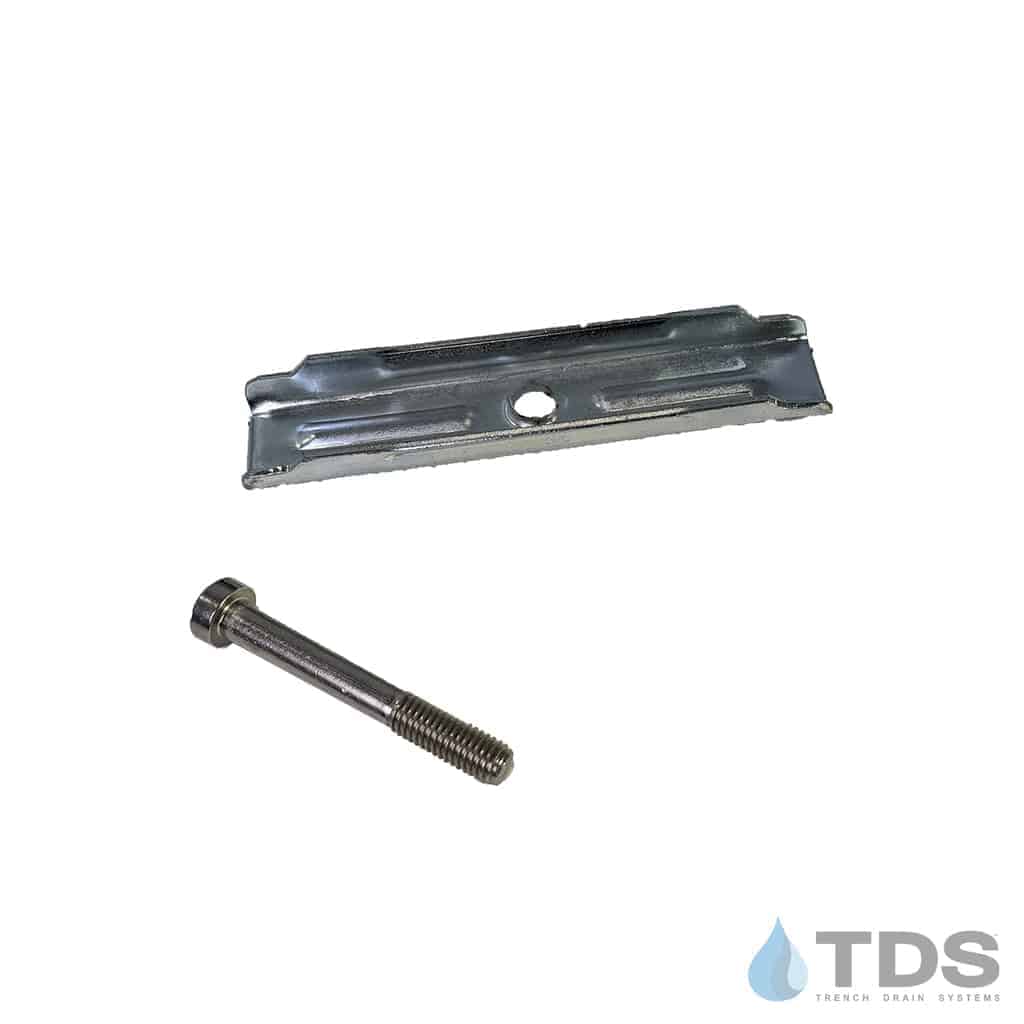

LD100X-1 Locking Device for ULMA Grates

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304 and Galvanized Steel

Manufacturer: ULMA

System: D100, U100K, and U100KX

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Edging - Galvanized and Edging - Stainless

Application:

Locking Device for ULMA UK series and HYDROPLUS with specific grates

Hold-down device for ULMA grates. Compatible with UK series and HYDROPLUS trench drain systems. Depending upon the length of the grate, two devices may be required. Locking devices are necessary for areas where wheel traffic occurs to provide system integrity.

Used on ULMA U100, D100 and HYDROPLUS trench drain systems.

See Specification sheet for list of grates: LD100X-1 Specification Sheet
