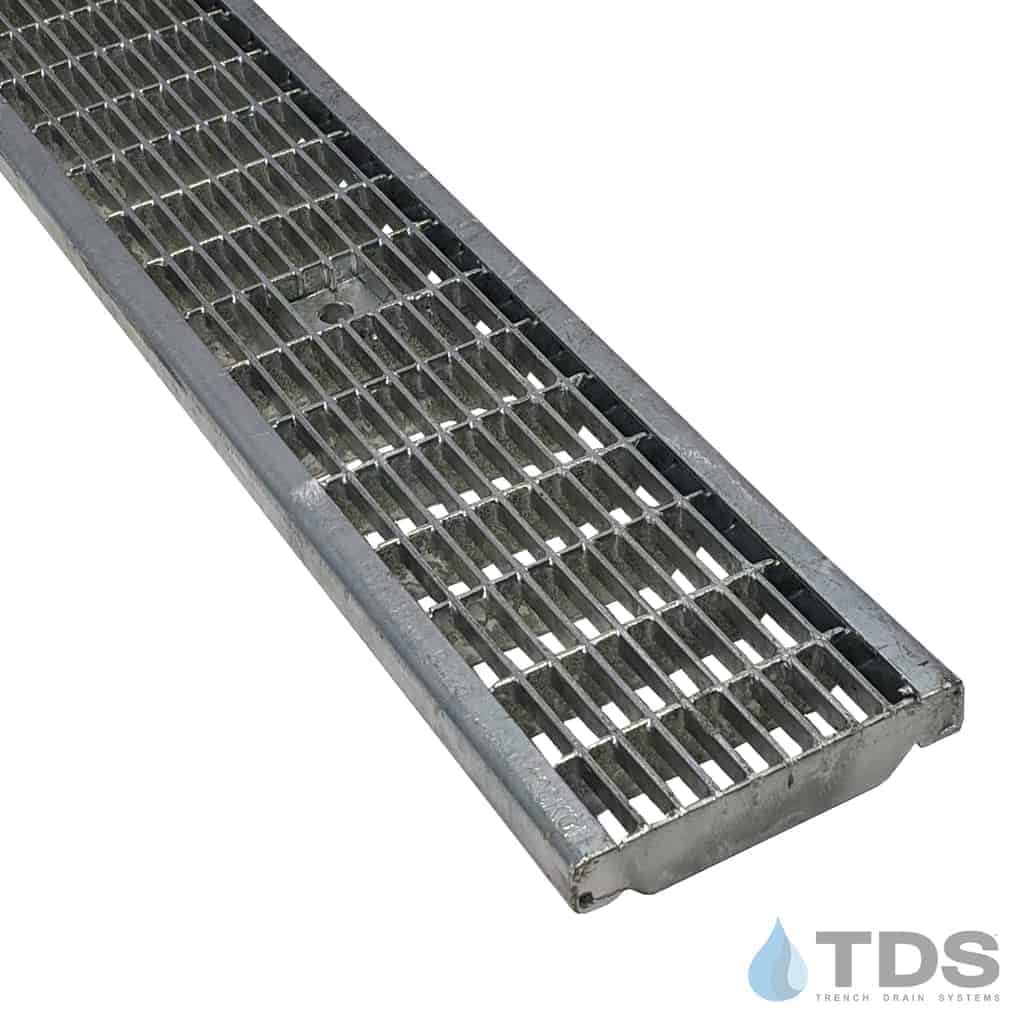

ULMA 407 / GEHX100KCBM Mesh Heelproof Galvanized Grate 0.5M Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Galvanized Heelproof Mesh Grate (0.5 M) – Class B
For use with ULMA, MEArin, ABT and other metric trench drain systems

Large project? Request a Quote

The ULMA 407 / GEHX100KCBM grate has a heelproof mesh design and rated as a Load Class B

Actual Dimensions: 122mm (4.8 in) x .5M (19.66 in) x 20mm (0.787 in)

Compatible with ULMA, MEArin, ABT and other metric trench drain systems

Locking device sold separately:

• The LD100X-1 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-1 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
