ULMA 403 / GEX100KCBM Mesh Galvanized Grate 0.5M Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Galvanized Mesh Grate (1 M) – Class B
For use with ULMA, MEArin, ABT and other metric trench drain systems

Large project? Request a Quote

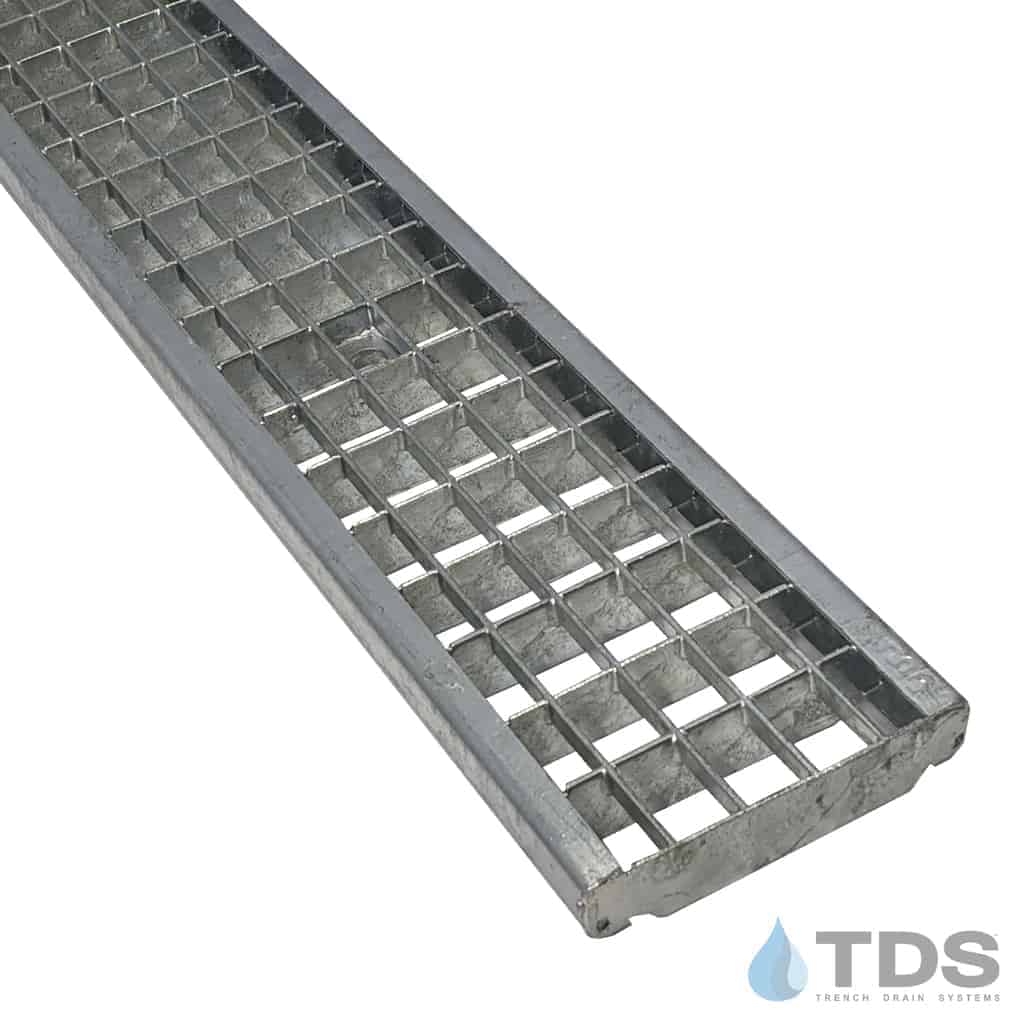

The ULMA 403 / GEX100KCBM galvanized steel grate has a mesh design and rated as a Load Class B

Flow Area measures 31.2mm x 20mm each

Actual Dimensions: 122mm X 0.5M X 20mm thick

This grates fits in these metric systems:

• HYDROPLUS

• K100
• M100K
• M100KX
• MEArin 100
• U100K
• U100KX

Locking device sold separately:

• The LD100X-1 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-1 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-1CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
