POLYCAST DG0647RH Reinforced Slotted Stainless Steel 6"x24" Grate (Nominal) | Load Class C

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Actual Dimensions: 5.12″ x 23.9″ x 0.75″

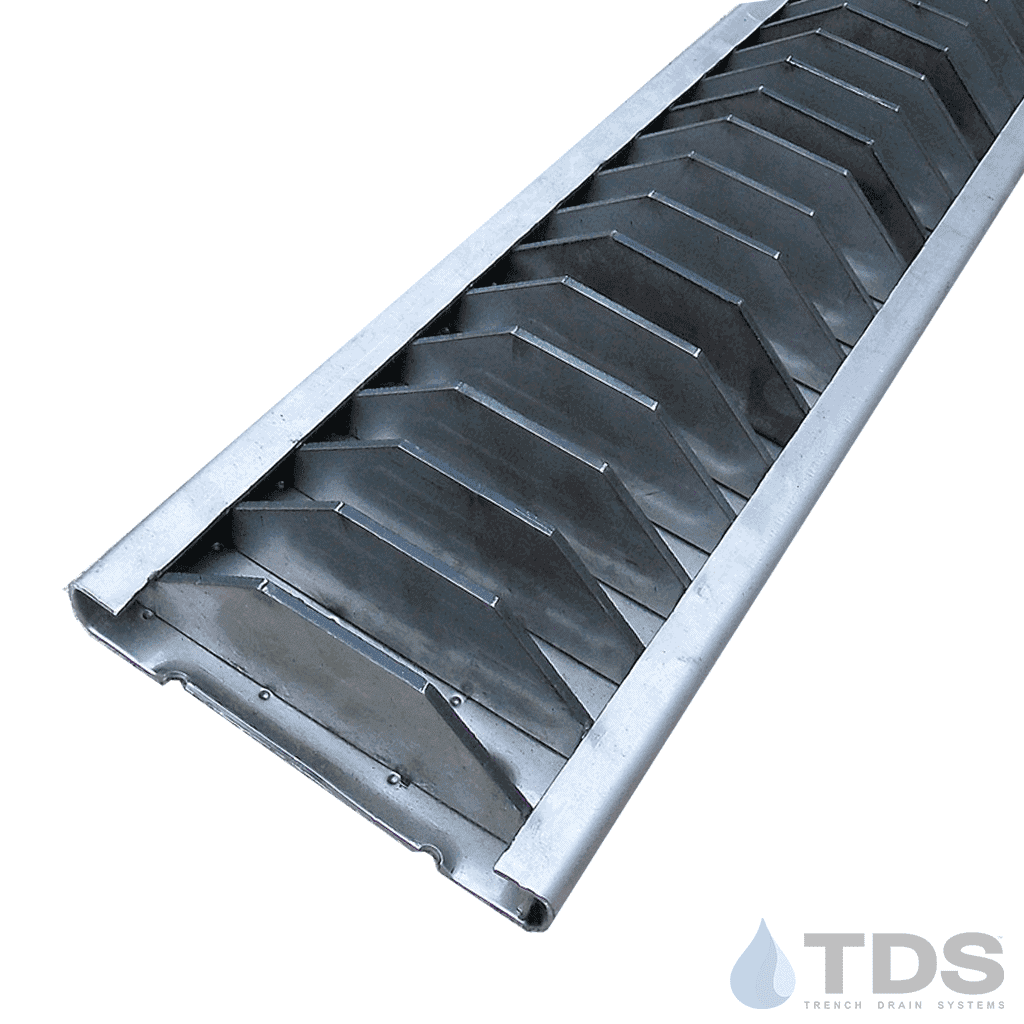

(Height is 1.5″ including the reinforcement fins)
Large project? Request a Quote

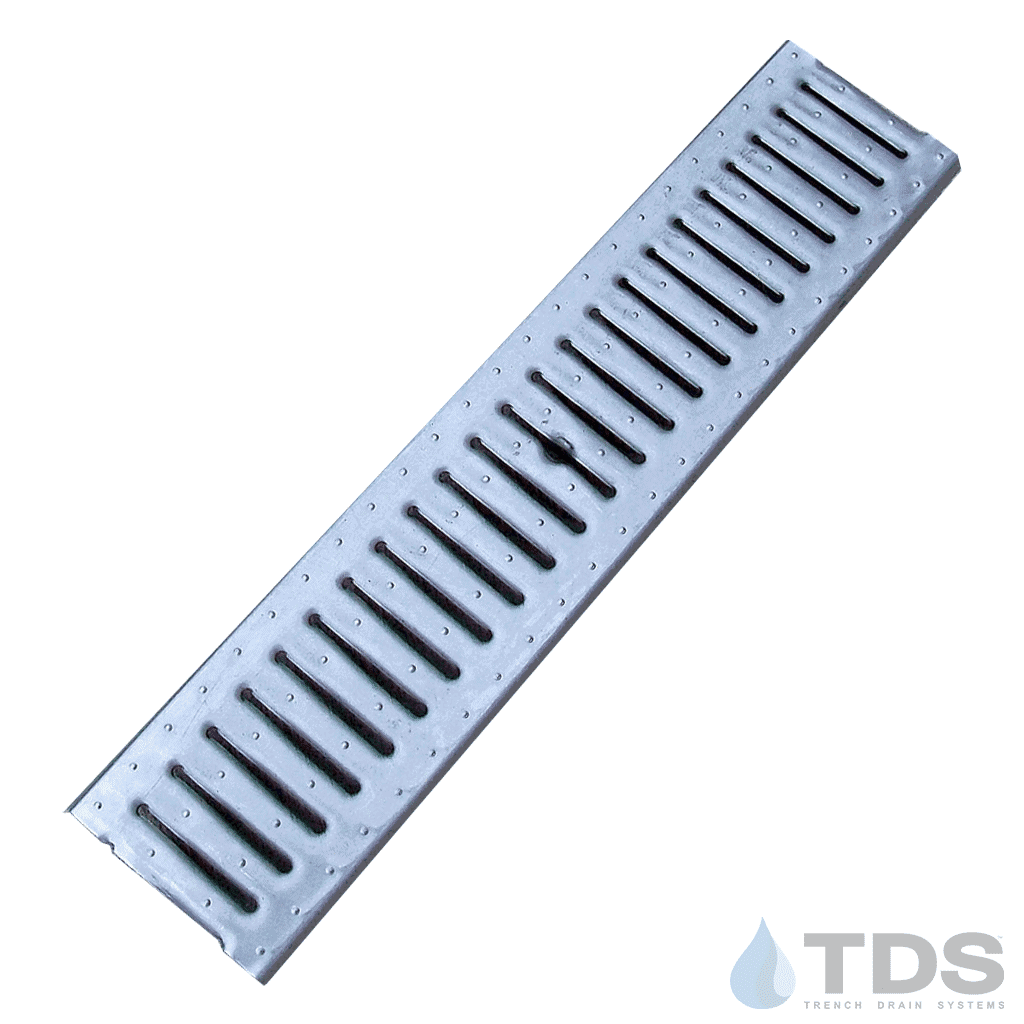

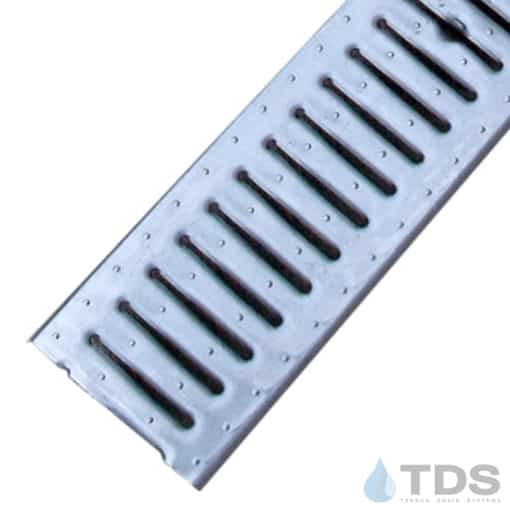

Stainless Steel Slotted Reinforced grate is heelproof and ADA compliant.  Great for a brewery or winery processing room.

Actual Dimensions: 5.12" x 23.9" x 0.75" (Height is 1.5" when including the reinforcement fins).

See the DG0647RH Specification Sheet for actual dimensions.

Class C load rating and is compatible with:

• POLYCAST 500, 600 and 700 Series trench drains
• TDS SS600 Stainless trench drain system

Grate has 17% (34 sq in) of open area, and is made of 14 gauge 304 stainless steel.

Please Note: Locking device not included. See locking device options below:
DA0542SH Locking Device for use with POLYCAST® 500 w/ Frame
DA0642S Locking Device for use with POLYCAST® 600
DA0642SH Locking device for use with POLYCAST® 700

Have Questions? Please Call 610-882-3630
