TDS-POLYCAST DA0542SH Hold-Down Device for 500 Series Stainless Steel and HDPE Grates

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

POLYCAST 500 Grate Locking Device

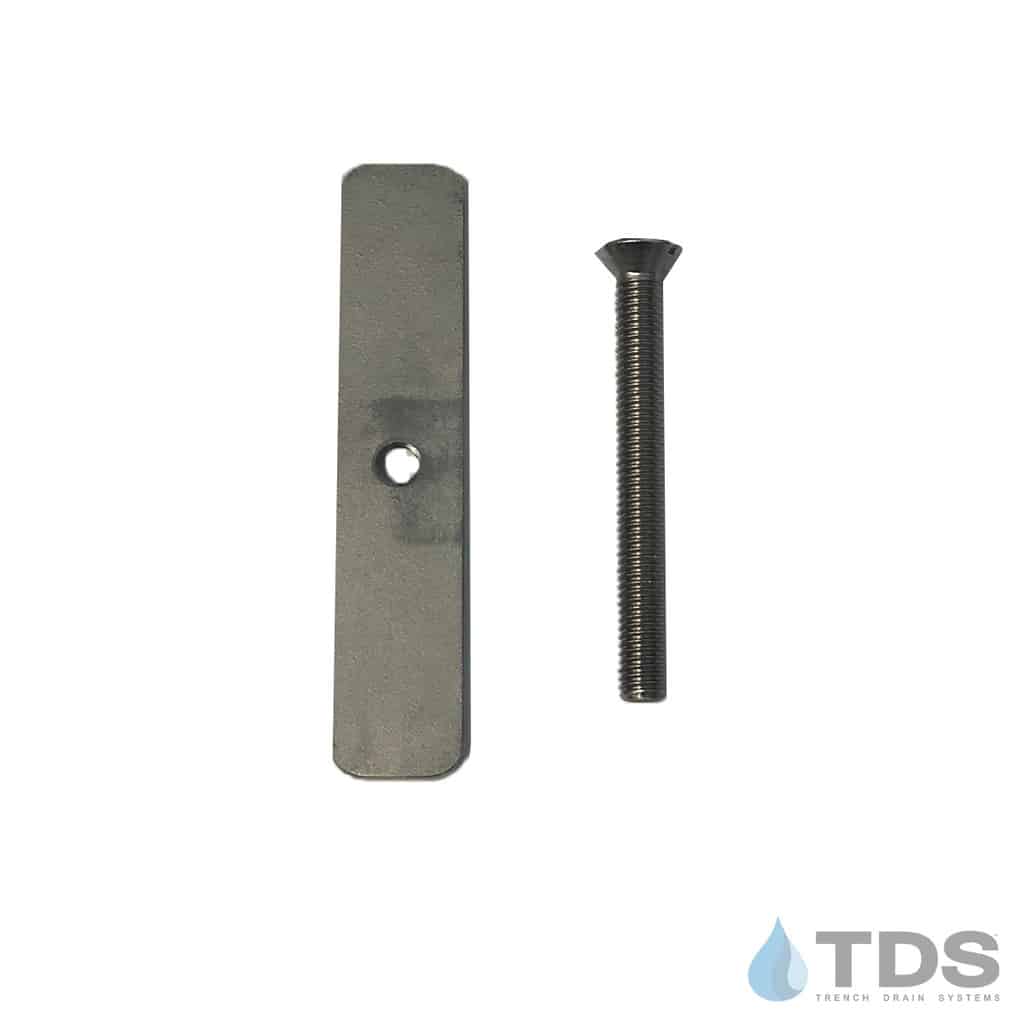

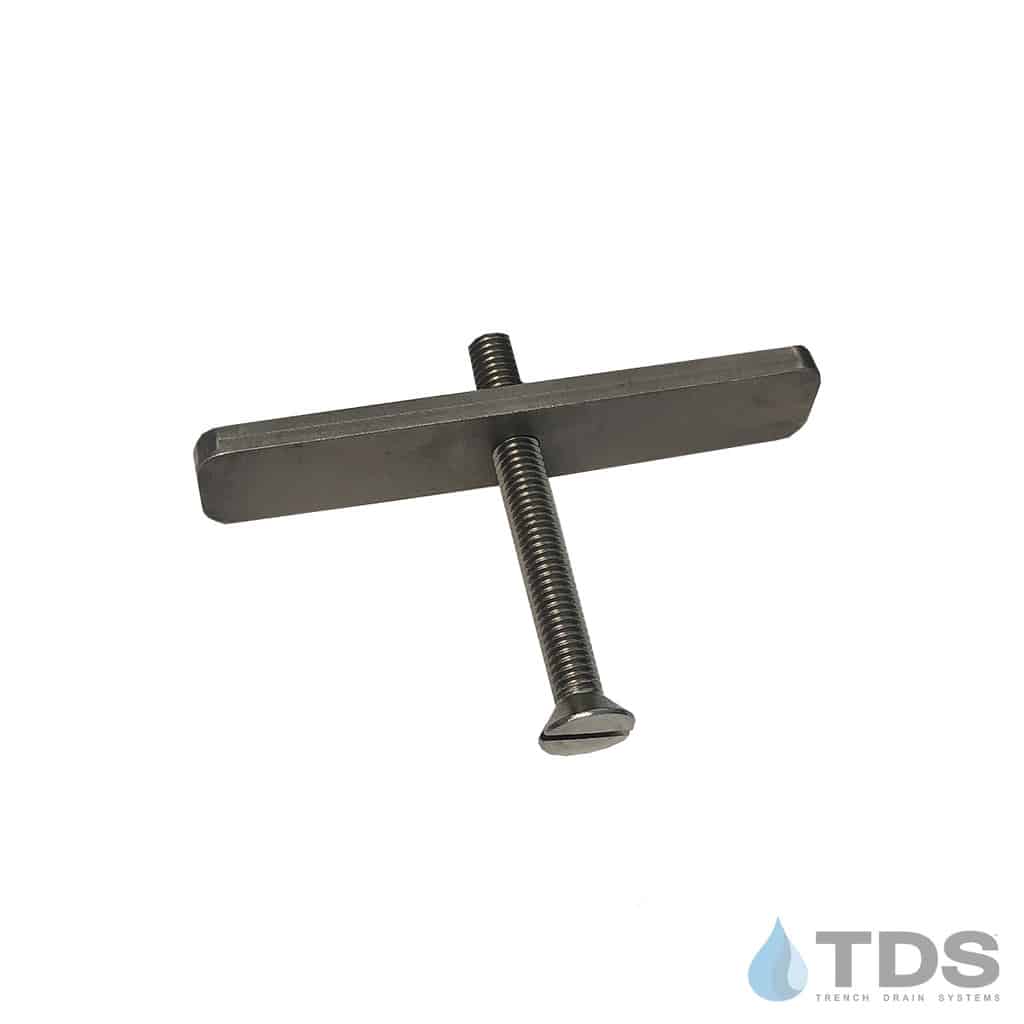

Each locking device includes:
Flat Head Screw
Lock Bar

Locking device for POLYCAST 500 series with flat head screw for stainless steel grates with frame or HDPE grates with frame. Part# DA0542SH

Each locking device includes:
3/8-16 X 3-1/2" Flat Head Screw
Lock Bar that measures 1" x 4-3/4"

Designed to fit: POLYCAST 500 System

Compatible Grates:

• DG0647RH, DG0647R 24" or 48" Slotted Reinforced Stainless Steel Grate
• DG0655RH, DG0655R 24" or 48" Slotted Reinforced Stainless Steel Grate Wedge Wire Grate
• DG0657RH, DG0657R 24" or 48" Perforated Reinforced Stainless Steel Grate
• DG0670, DG0670G (Black or Gray) 24" HDPE Slotted Grate
• DG0675, DG0675G (Black or Gray) 24" HDPE Transverse Slotted Grate

Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.

Specification Sheet for DA0542SH
