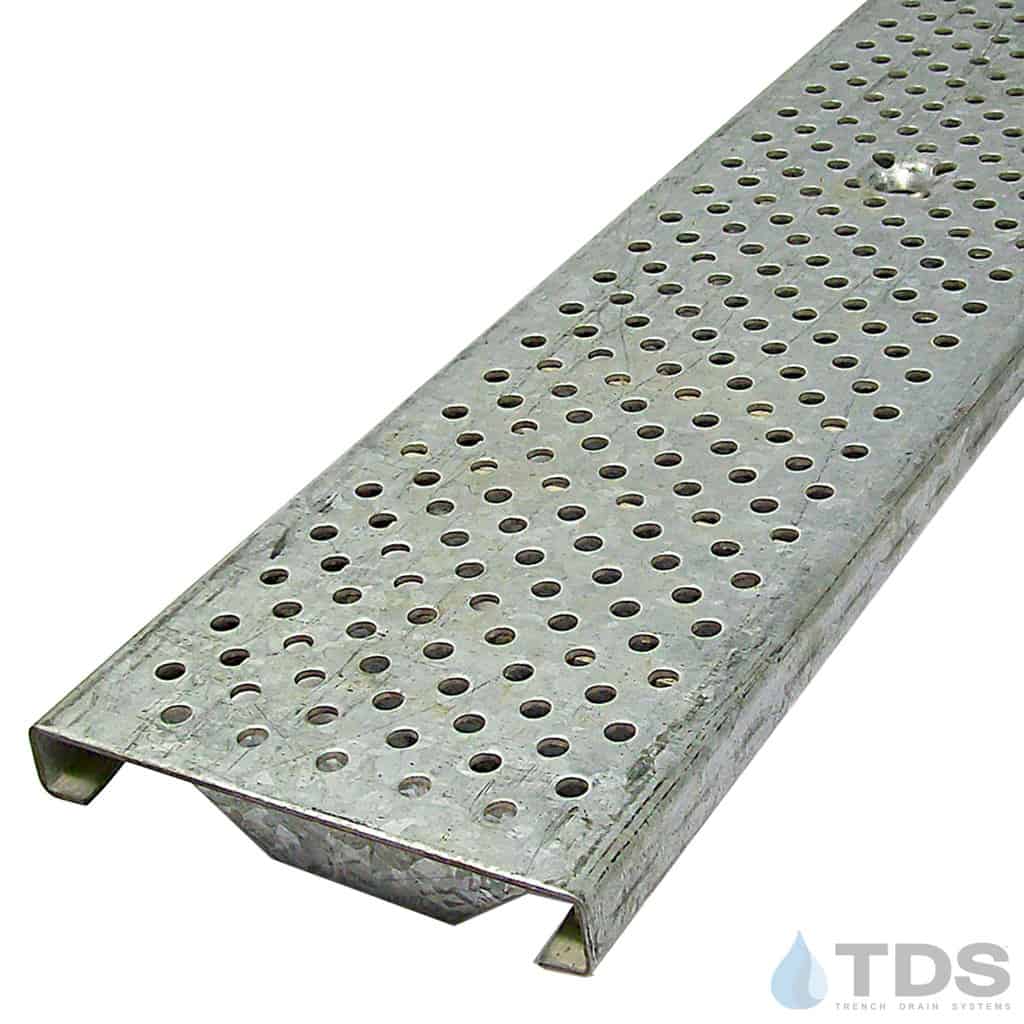

POLYCAST DG0646R Class C ADA Compliant Perforated Reinforced Galvanized 6" x 48" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class C

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Galvanized reinforced perforated ADA & Heelproof grate.

Actual Dimensions: 5.12″ x 47.81″ x .75 (1.50 w/fin)

DG0646R Galvanized steel perforated reinforced grate. Rated at a Load Class C.

ADA Compliant and Heel proof.

Fits POLYCAST® 500, 600, and 700 Series trench drains and holes are 1/4".

Actual Dimensions: 5.12" x 47.81" x 0.75 (1.50 w/fin)

Locking Device for DG0646R for use with POLYCAST®600 system

Locking Device for use with POLYCAST®500 system

Specification Sheet for DG0646R
