TDS-POLYCAST DA0542H Hold-Down Device for 500 Series Galvanized Grates

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

POLYCAST 500 Grate Locking Device

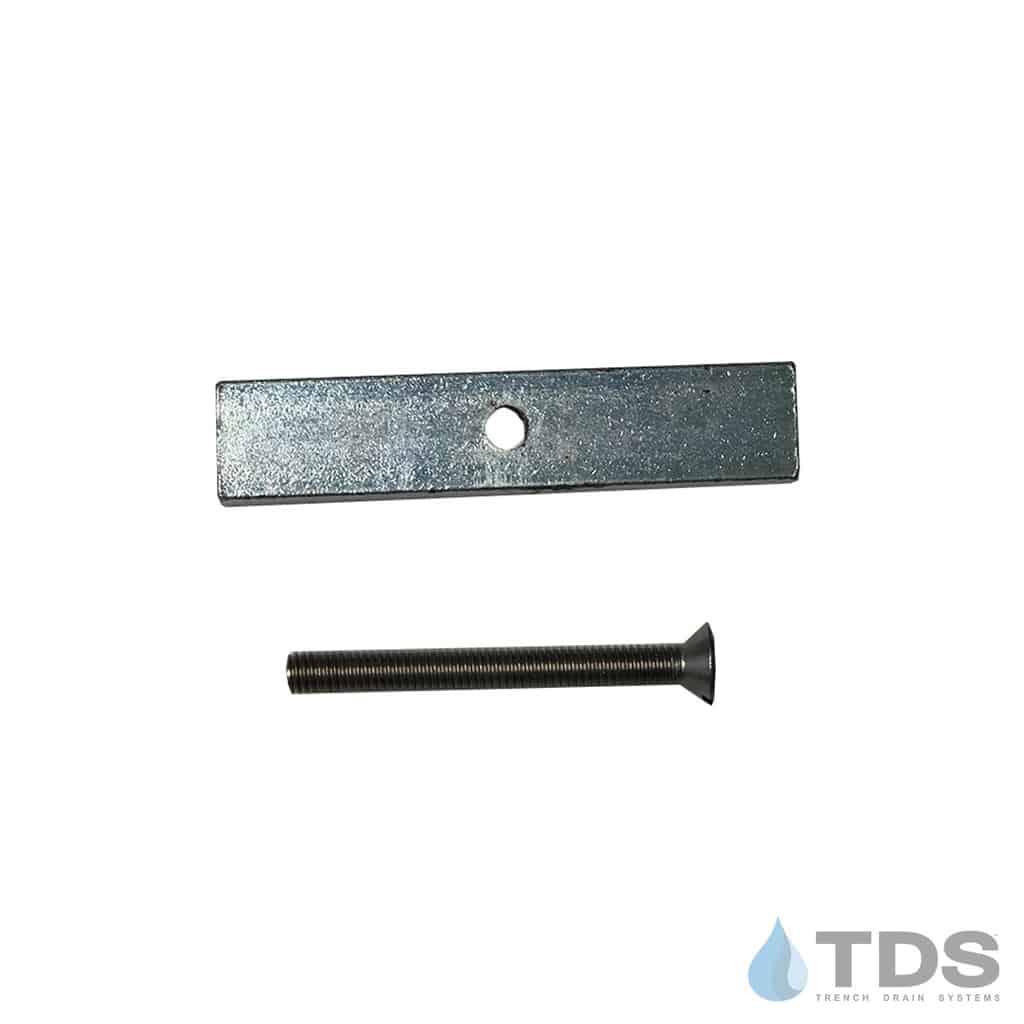

Each locking device includes:
Flat Head Screw
Lock Bar

Locking device for POLYCAST 500 series with flat head screw for stainless steel bar grates with frames.

Grates need to be locked in place in situations where there's a possibility they will be driven over. This helps to provide system integrity when used appropriately.

Each locking device includes:
Flat Head Screw 3/8-16 x 3.5"
U Shaped Lock Bar 1" x 4.88"

Designed to fit: POLYCAST 500 System

Compatible Grates:

• DG0640RH 24" Galvanized Steel Reinforced Slotted Grate
• DG0640R 48" Galvanized Steel Reinforced Slotted Grate
• DG0646R 48" Galvanized Steel Reinforced Perforated Grate

Includes: 3/8 - 16 X 3.50" Flat Head Screw and 4.88" (123.83 mm) Lock Bar

Specification Sheet for DA0542H
