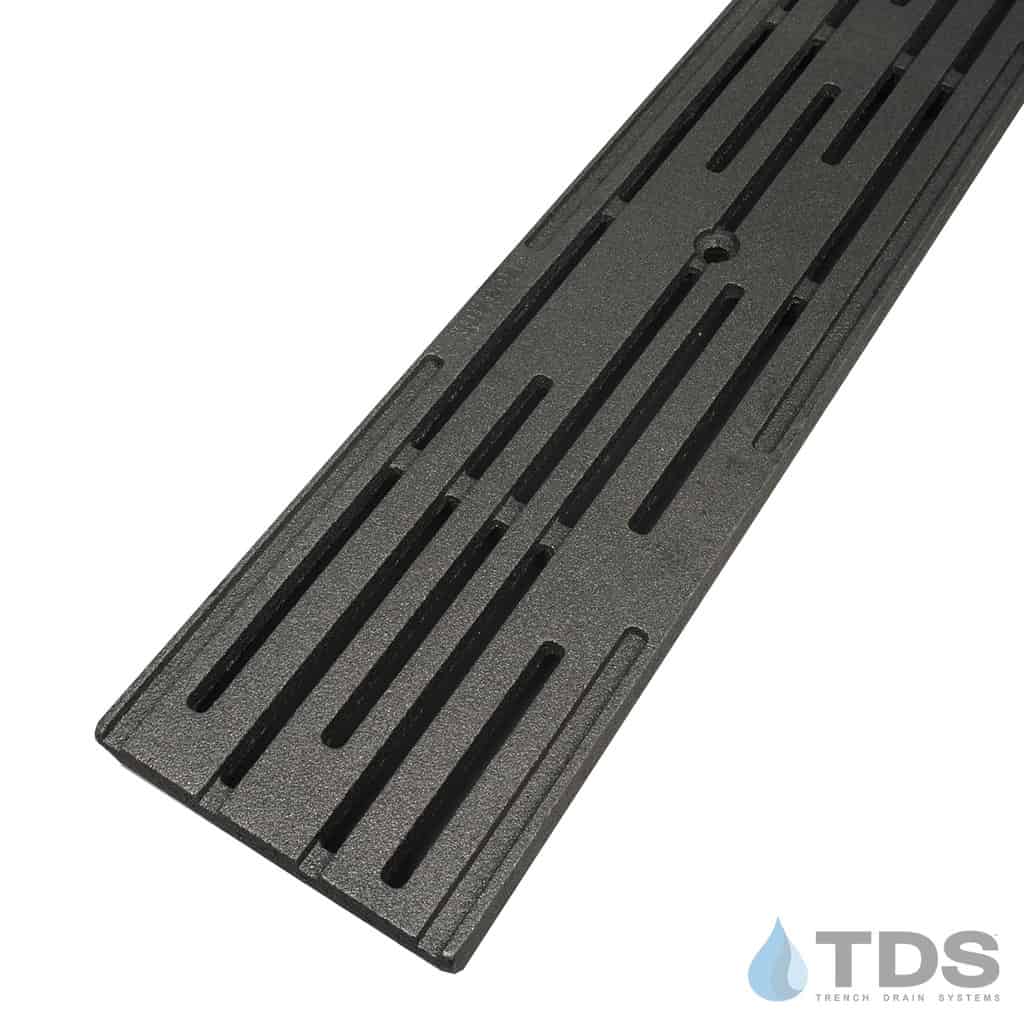

Iron Age IA-RAIN-0520-HP Class B Heel-Proof Rain Cast Iron 122mm x 500mm Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: RAIN

Grate Pattern Style: GEOMETRIC

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate RNA5-20I21HP

Actual Dimensions: 4.84″ [122 mm] x 19.43″ [494 mm] x .81″ [20.5 mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the Mearin 100 Channel drain system and others. The Rain pattern is available in either the raw casting or Baked on Oil Finish (BoOF)

Actual Dimensions: 4.81" [122mm] x 19.56" [497mm] x .81" [20.57mm]

Specification Sheet for IA-RAIN-0520-HP

Designed to fit:

• ULMA - HYDROPLUS
• ULMA - U100 and M100
• MEA-Josam - MEArin 100
• MEA-Josam - MEA J1000
• MultiDrain - Alfa Channel
• J.R. Smith - Enviro-Flo
• ABT - Polydrain
• Other metric drain systems

Locking device sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
