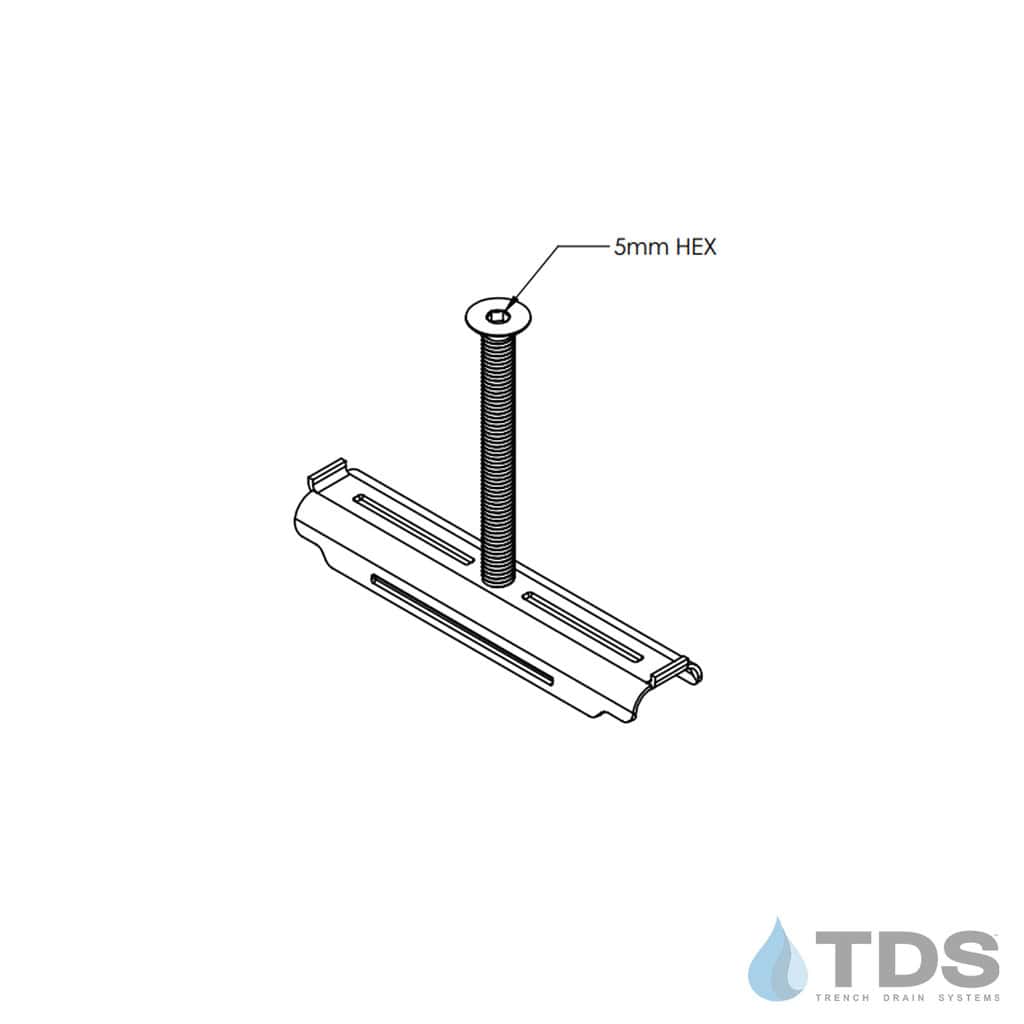

LD100X-2CB Locking Device for ULMA Grates

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304 and Galvanized Steel

Manufacturer: ULMA

System: D100, U100K, and U100KX

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized and Edging - Stainless

Application:

Stainless Steel Locking Device for ULMA AD100 and AK100 Catch Basins with specific grates

The ULMA LD100X-2CB Stainless Steel locking device will be used with all grating systems where wheel traffic occurs to ensure the integrity of the drainage system.

Used on ULMA AD100 and AK100 Catch Basins with specific grates.

See Specification sheet for list of grates: LD100X-2CB Specification Sheet
