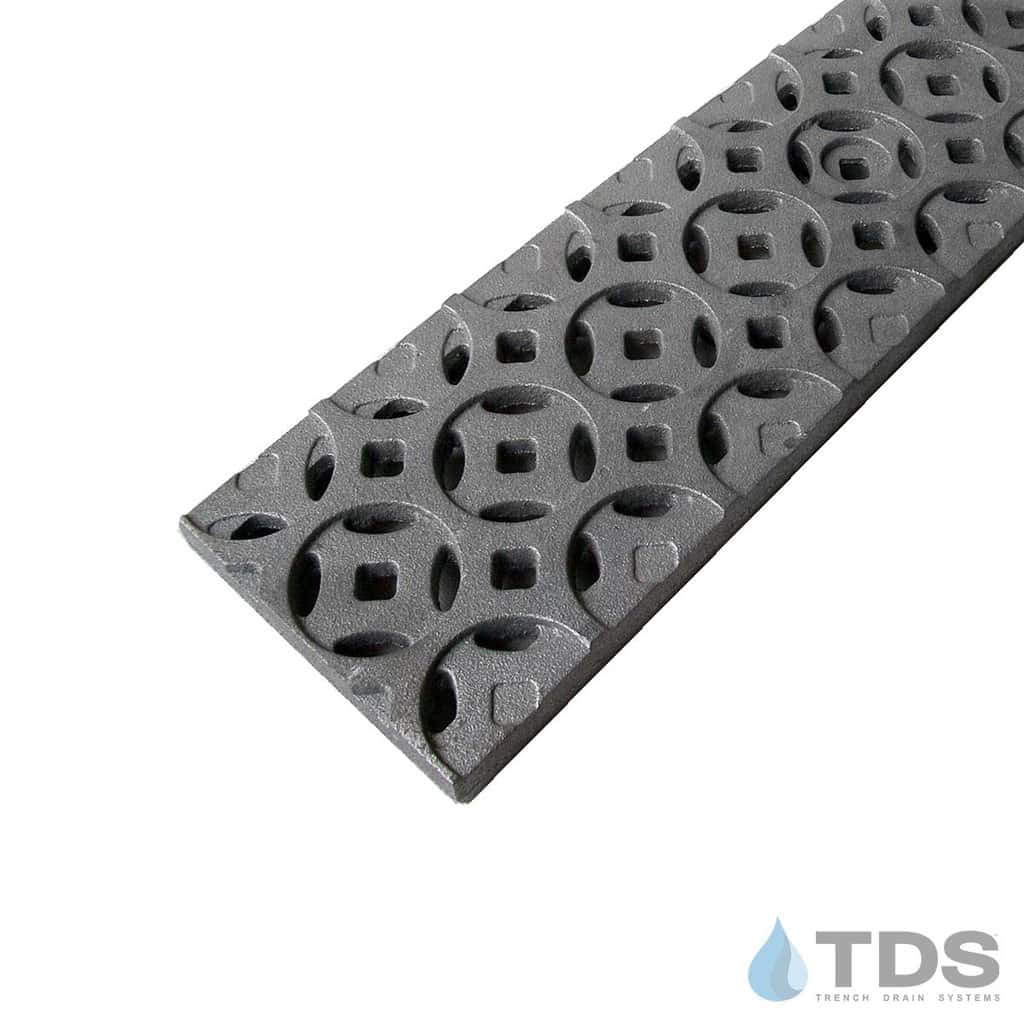

Iron Age IA-INTER-0520 Interlaken Cast Iron 122mm x 500mm Grates Class B - Raw

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate IA5-20I21

Actual Dimensions: 4.81″ [122mm] x 19.44″ [494mm] x .81″ [20.57mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the ULMA U100, MEArin 100 Channel drain system, and others.

The Interlaken pattern is available in either the raw casting or Baked-on Oil Finish (BoOF).

Actual Dimensions: 4.81" [122mm] x 19.63" [498mm] x .81" [20.57mm]

Specification sheet for IA-INTER-0520

Designed to fit:

• ULMA
• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• Polydrain by ABT
• Other Metric drain systems

Locking devices are sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100, and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
