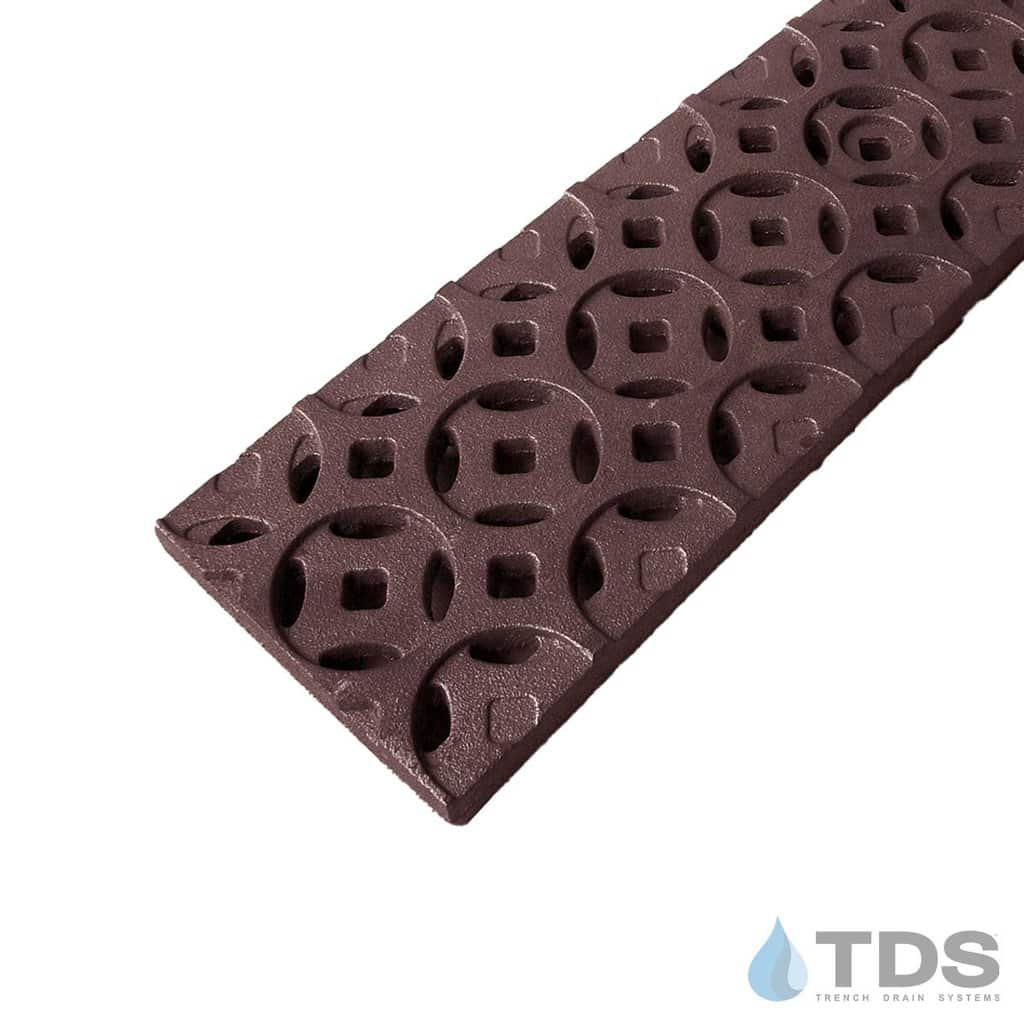

Iron Age IA-INTER-0520-BF Class B Interlaken Cast Iron 122mm x 500mm Grates - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate RRA5-20I21

Actual Dimensions: 4.81″ [122mm] x 19.44″ [494mm] x .81″ [20.57mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the ULMA U100, MEArin 100 Channel drain system and others.

Interlaken pattern is available in either the raw casting or  Baked on Oil Finish (BooF).

Actual Dimensions: 4.81" [122 mm] x 19.63" [499 mm] x .81" [20.5 mm]

Specification Sheet for IA-INTER-0520-BF

Designed to fit:

• ULMA
• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• Polydrain by ABT
• Other metric drain systems

Locking device sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
