POLYCAST DG0647R Reinforced Slotted Stainless Steel 6"x48" Grate (Nominal) | Load Class C

1 2

Drainage Kits

SKU:DG0647R

Actual Dimensions: 5.12" x 47.81" x 0.75" (Height is 1.5" when including the reinforcement fins) Large project? Request a Quote

$399.00 USD

~~$0.00 USD~~ $399.00 USD

Sale Sold out

Option 1 --

Quantity

View full details

Additional Information

Grate Width: 5.25"
Grate Thickness: 0.75"
Product Type: Channel Grate, Grate
Grate Material / Color / Finish: Stainless Steel 304
Manufacturer: Polycast
System: Polycast 500, Polycast 600, Polycast 700
Grate Load Class: C
Grate Pattern: Slotted
Grate Pattern Style: Slotted
Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl-Ester
Frame/Edging: No Frame, No Edging, Galvanized, Stainless, Ductile Iron, HDPE
Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational, Transportation

Description

Actual Dimensions: 5.12″ x 47.81″ x 0.75″
(Height is 1.5″ when including the reinforcement fins)
Large project? Request a Quote

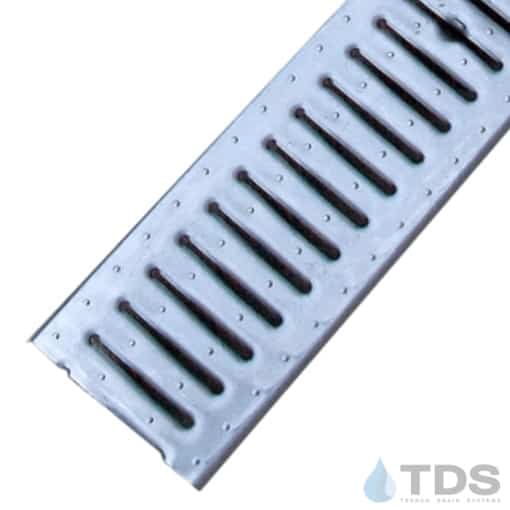

Stainless Steel Slotted Reinforced grate is heelproof and ADA compliant. Great for a brewery or winery processing room.

Actual Dimensions: 5.12" x 47.81" x 0.75" (Height is 1.5" when including the reinforcement fins).

See the DG0647RH Specification Sheet for actual dimensions.

Class C load rating and is compatible with:

POLYCAST 500, 600 and 700 Series trench drains
TDS SS600 Stainless trench drain system

Grate has 17% (34 sq in) of open area, and is made of 14 gauge 304 stainless steel.

Please Note: Locking device not included. See locking device options below:
DA0542SH Locking Device for use with POLYCAST® 500 w/ Frame
DA0642S Locking Device for use with POLYCAST® 600
DA0642SH Locking device for use with POLYCAST® 700
