The TDS Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with high-strength, corrosion-resistant material and designed to be used as collection points or drain run transitions.
The TP0750S can be used as an individual catch basin with a ductile iron frame, or with a POLYCAST® drain system. It can also be set on top of the taller POLYCAST® DP0650 catch basin for deeper installation and larger capacity.
This neutral short catch basin accepts the same grating options, edging, and frames as the POLYCAST® 600/700 trench drain systems.
Cut-outs for side, bottom, and end outlets are located on the catch basin for ease of installation. Core drill is available prior to shipment (at an additional cost).

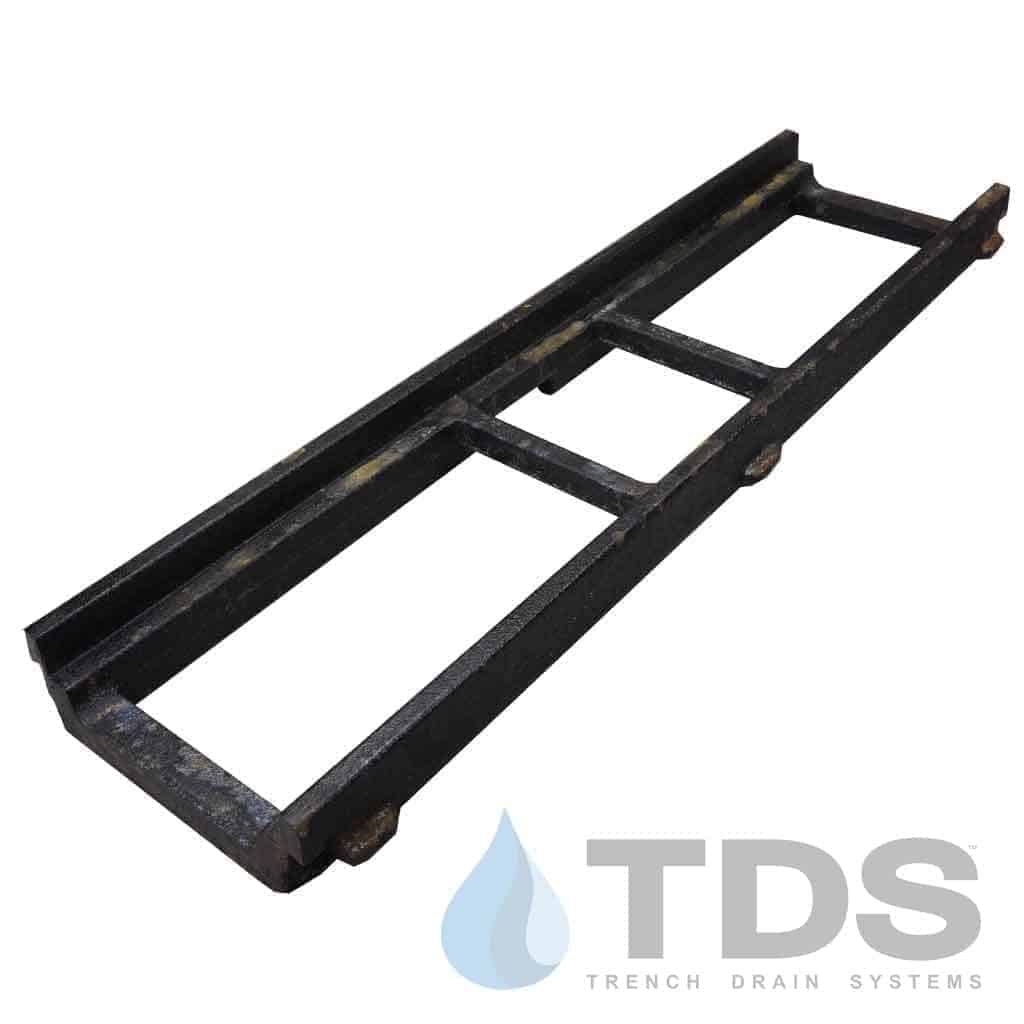

The following POLYCAST® channels correspond with the catch basin (add DG0700AA frame for 700 series): 600N, 605, 610, 615, 620, 625, and their corresponding halves and neutrals.
Catch Basin with Frame Actual Dimensions: 6 1/4″W x 24″L x 13 3/16″H
Specification Sheet for DG0641D
Catch Basin Kit Includes:
- Grate
- Locking Device
- Catch Basin
- Frame (Cast Iron)
