Zurn Z888-18 High Capacity Slot Drain

The Z888-18 High Capacity Slot Drain System is designed for the collection and conveyance of stormwater for high-flow applications in highways, ports, and airports.
Limited Supply – Get Yours Now

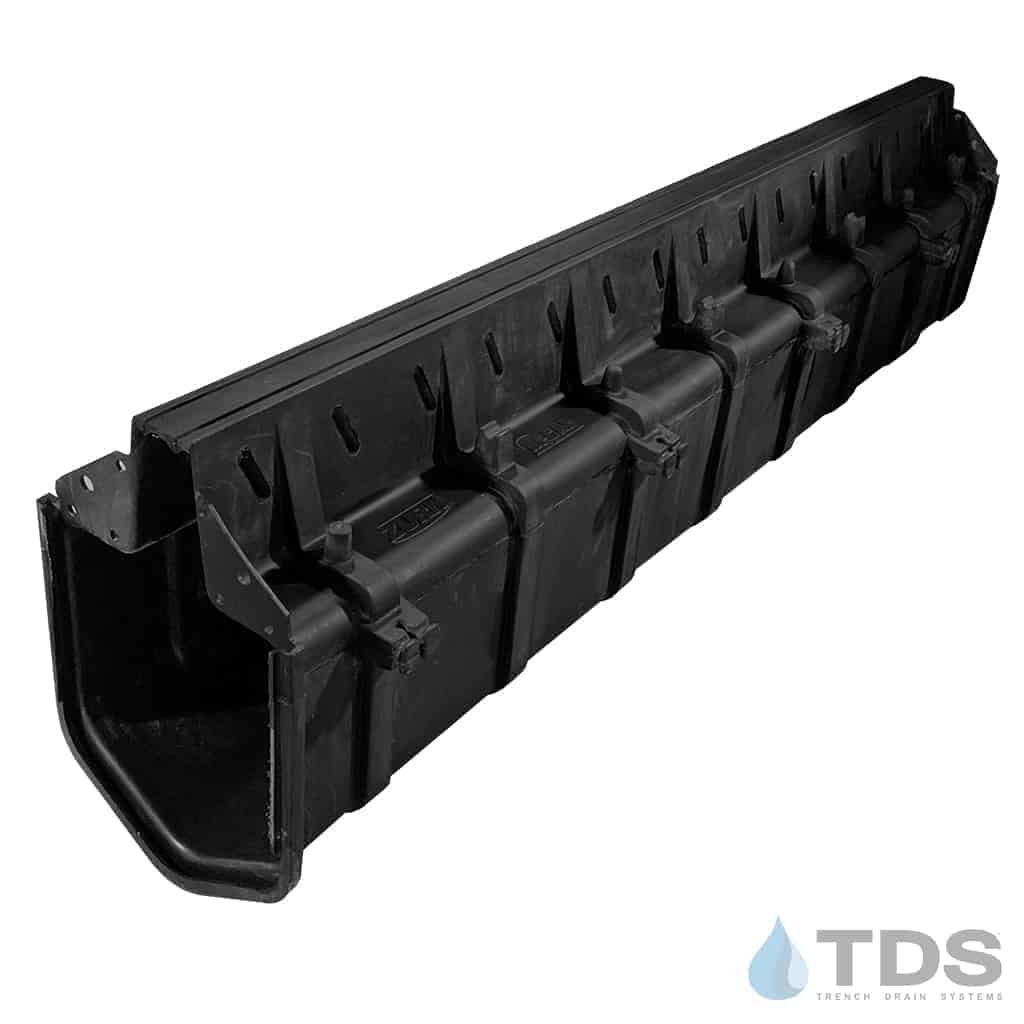

The Zurn Z888-18 is made from LLDPE linear Low Density Polyethylene. Each section is 80 inches long and 13 inches wide with a smoothed radius bottom. Channel sections are neutral non-sloping body with interlocking tongue and groove joints. The top slot opening of 1.75 inches wide is non-removable. Accessories are also available including an end cap (Z888-18-E1) and 8" end outlet (Z888-18-E8).

NOTE: Overnight deliveries are not available for this product

Applications: Loading Docks, Highways, Airports, Pools, Wineries, Parking Lots, Gas Stations, Warehouses, Cargo Ports
Channel Material: Polyethylene
Top Width Opening: 1.75 inches

Features:

• 80 inch long modular lengths for ease of installation
• "V" shaped radiused bottom provides Manning's coefficient .011 for better flow rate and less debris buildup due to higher velocity
• Smooth polyethylene interior provides 0% water absorption and superior chemical resistance
• Integral molded rebar clips for quick elevation adjustment
• Integral mechanical joints connect without the added time and expense of an external coupling
• Labor saving lightweight construction

Z888-18 Specification Sheet

Installation Instructions:
Asphalt

Pavers

Special

Click HERE to Watch Z888-18 Installation Video
