Zurn Z886 Drainage Kit w/P6-FS Stainless Slotted Grate - Bottom Outlet

Grate Width: 5.38" for Zurn Z886

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Zurn

System: Z886

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

The ZURN Z886 is a 6" wide system that is designed to handle high water flow rates. The Z886 system's smooth HDPE (polyethylene) structural composite drain channel with 3.5" [76mm] through 12.5" depth range guarantees efficient drainage and weather resistance. Each channel section is 80" (6.6ft) long with interlocking ends, and a radiused bottom. This system includes a bottom outlet.

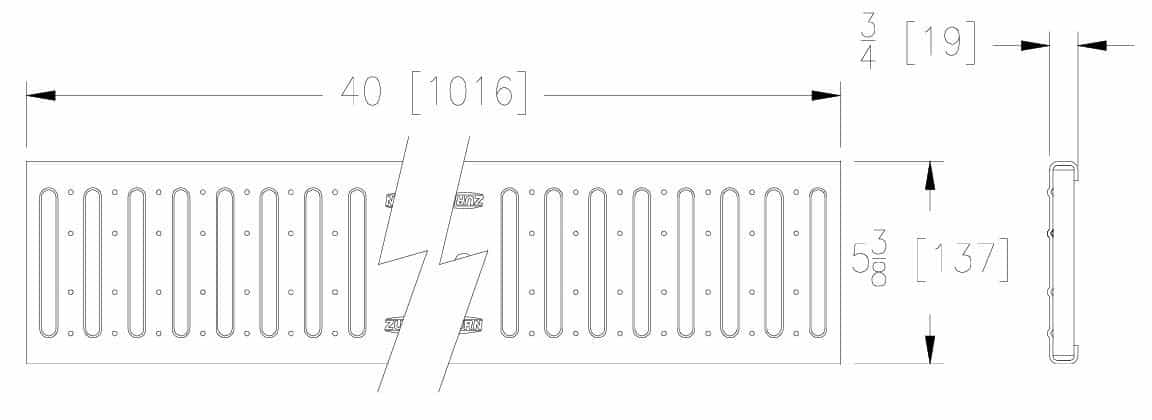

P6-FS Specification Sheet

NOTE: Expedited deliveries are not available for this product

Uses: Patios, Landscapes
Channel Material: HDPE (polyethylene)
Clear Width: 4" interior
Total Width: 6"
Grating: Stainless slotted grates (Load Class: A)
Grate Width: 5-3/8"
Grate Length: 40"

Our ZURN Z886 kits include:

• 1 – 80" drain channel for each section
• 2 – 40" grates for each section
• Grate Locking Devices
• End caps
• Bottom outlet
• Installation instructions
