Full kit great for residential installation.
The ZURN Z886 6" wide system is designed to handle a high water flow rate. The Z886 system's smooth HDPE (polyethylene) structural composite drain channel with 3.5" [76mm] through 12.5" depth range guarantees efficient drainage and weather resistance. Each channel section is 80" (6.6ft) long with interlocking ends, and radiused bottom. Channel is made for many years of service.

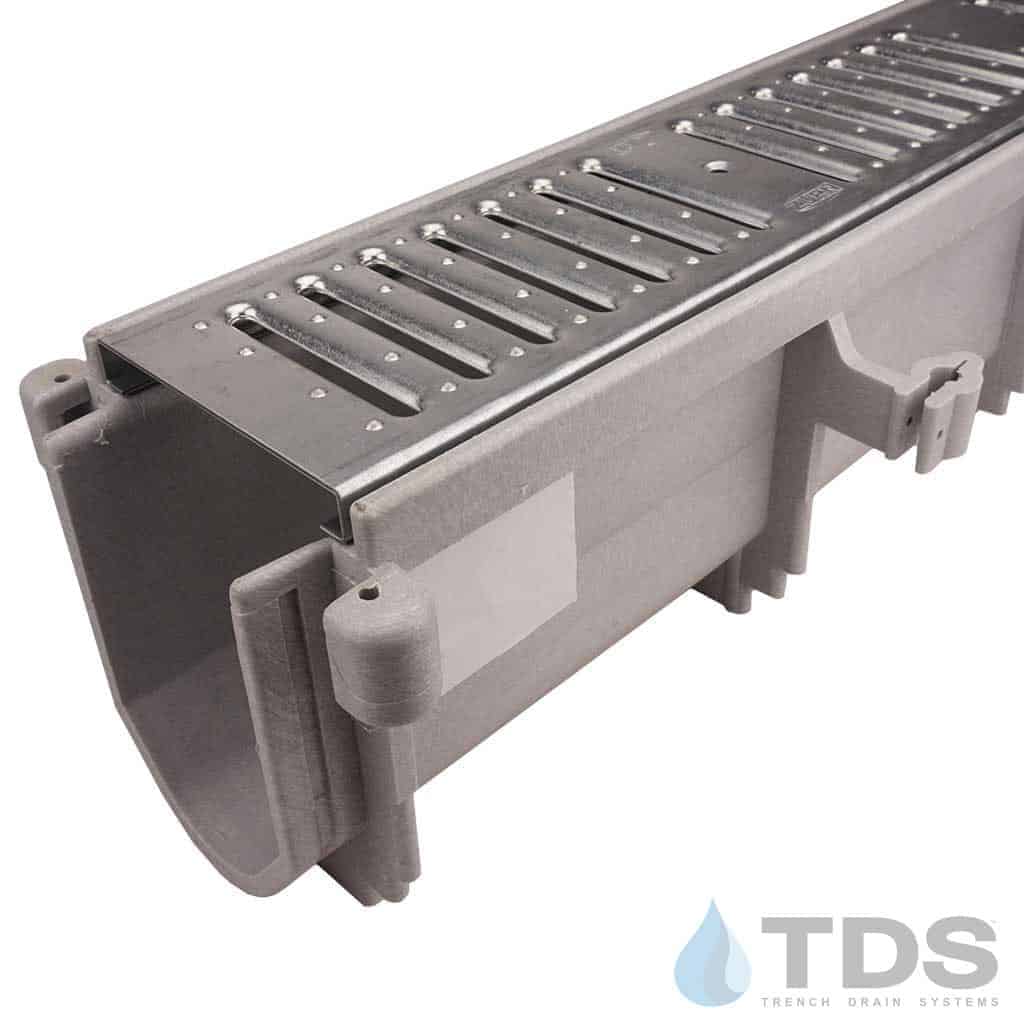

Galvanized slotted grates (P6-FG Grate Specification Sheet) are rated Load Class A for pedestrian traffic.
2 grates are included for each section of channel ordered.
Rebar stake holders are molded into the channel on sides. Channel sections lock together making your trench drain run easier to work with during installation.
NOTE: Overnight deliveries are not available for this product
Uses: Patios, Landscapes
Channel Material: HDPE (polyethylene)
Clear Width: 4" interior
Total Width: 6"
Grating: Galvanized slotted grates (Load Class: A)
Grate Width: 5-3/8"
Grate Length: 40"
