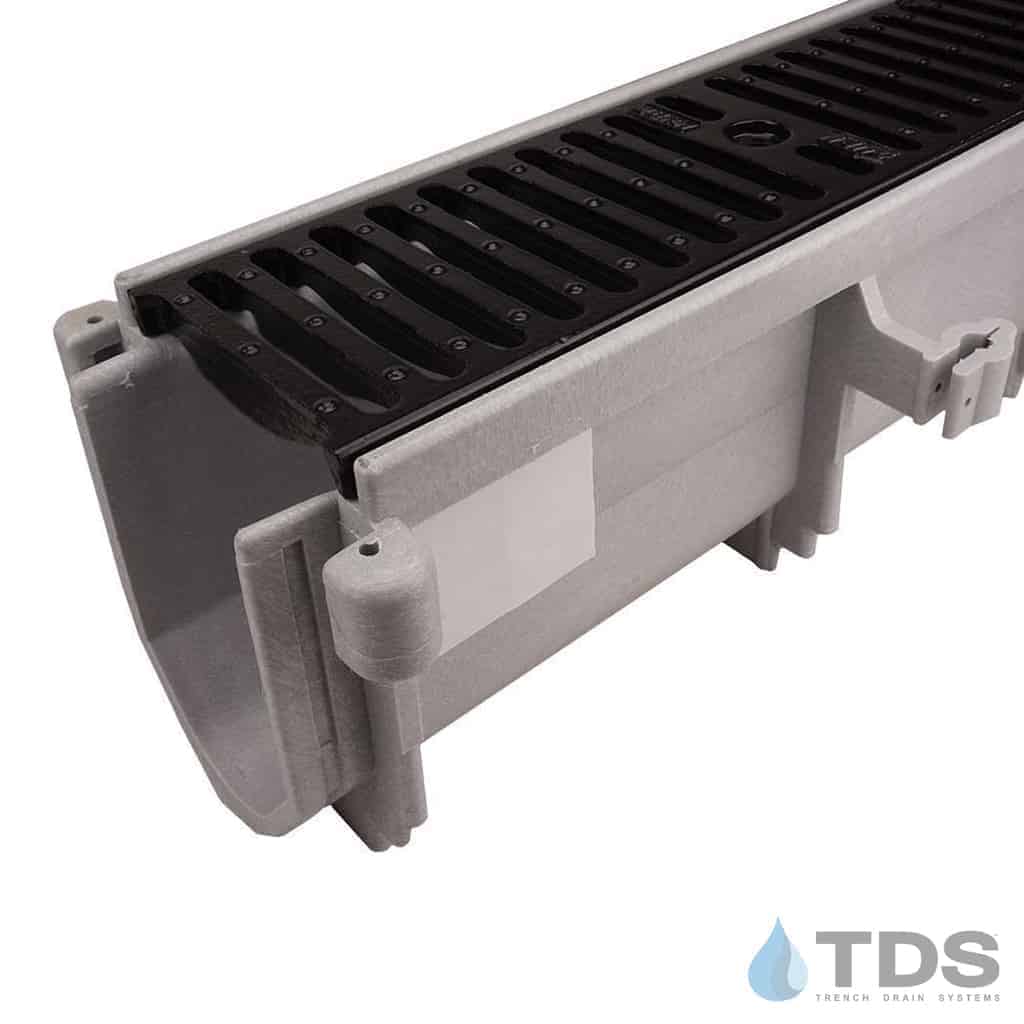

Zurn Z886 Drainage Kit w/ DGE Class E Ductile Iron Slotted Grate

Zurn Z886 Drainage Kit w/ DGE Class E Ductile Iron Slotted Grate

1 1

Drainage Kits

Z886-DGE-E1-E4-(6'-8")

Full kit great for residential and commercial installation.
$1,148.05 USD
$1,148.05 USD
Sale Sold out
Kit Length
View full details

Additional Information

  • Grate Width: 5.38"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: ZURN
  • System: Z886
  • Grate Load Class: E
  • Grate Pattern: SLOTTED
  • Grate Pattern Style: SLOTTED
  • Channel Material: Plastic (PP, HDPE, PE)
  • Channel Frame / Edging: No Frame, No Edging
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Transportation

Description

The ZURN Z886 6" wide system with the DGE slotted ductile iron Class E grate. The Z886 system's smooth HDPE (polyethylene) structural composite drain channel with a 3.5" [76mm] through 12.5" depth range guarantees efficient drainage and weather resistance. Each channel section is 80" (6.6ft) long with interlocking ends and radiused bottom. Molded Rebar stakeholders are molded onto each channel side, making an easier installation.

P6-DGE Grate Specification Sheet

NOTE: Overnight deliveries are not available for this product

Uses: Patios, Landscapes, Parking Lots, Warehouses, Driveways
Channel Material: HDPE (polyethylene)
Clear Width:  4" Interior
Total Width: 6"
Grating: Ductile Iron slotted grates (Load Class: E)
Grate Width: 5-3/8"
Grate Length: 20"

Our ZURN Z886 kits include:

  • 1 – 80" drain channel for each section
  • 4 – 20" grates for each section
  • Grate Locking Devices
  • 1 – End cap
  • 1 – End outlet (2 inch)
  • Installation instructions
