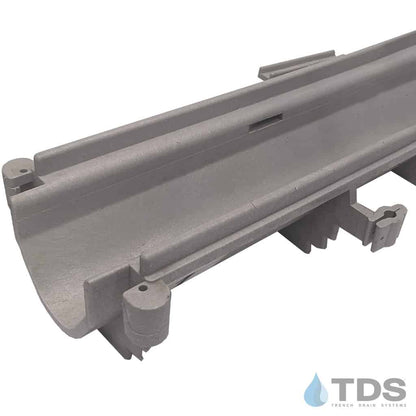

The ZURN Z886 6" wide system with the Class C slotted ductile iron grate is designed to handle light to medium traffic loads. This versatile linear drain system has a smooth HDPE (polyethylene) composite drain channel with bottom outlet. Channel measurements include a 3.5" [76mm] through 12.5" depth range, guaranteeing efficient drainage and weather resistance. Each channel section is 80" (6.6ft) long with interlocking ends, and a radiused bottom.

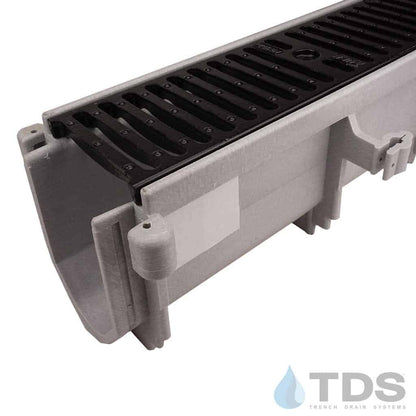

Ductile iron slotted grates (P6-DGC Grate Specification Sheet) have an open area of 18.57 square inches per linear foot, DIN Rating of C, ANSI Rating of Heavy Duty, and are suitable for H-20.
**Vandal-proof hardware included.
NOTE: Overnight deliveries are not available for this product
Common Uses: Patios, Landscapes, Parking Lots, Warehouses, Driveways
Channel Material: HDPE (polyethylene)
ID (Inner Dimension): 4" interior
OD (Outer Dimension): 6"
Grating: Ductile Iron slotted grates (Load Class: C)
Grate Width: 5-3/8"
Grate Length: 20"
