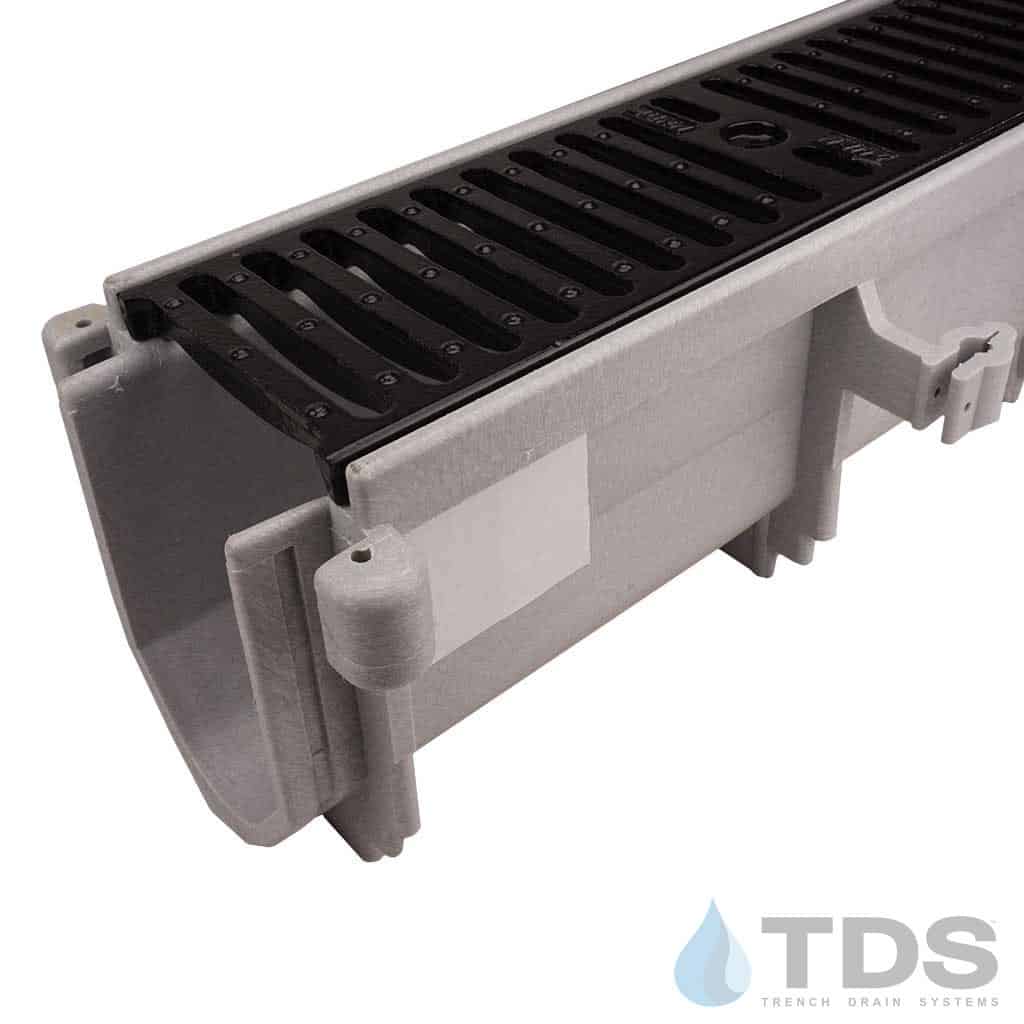

Zurn Z886 Drainage Kit w/ DGC Ductile Iron Slotted Grate - Class C

Grate Width: 5.38" for Zurn Z886

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Zurn

System: Z886

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

The ZURN Z886 is a 6" wide full-kitted system that is designed to handle high water flow rates. The Z886 system's smooth HDPE (polyethylene) structural composite drain channel with 3.5" [76mm] through 12.5" depth range guarantees efficient drainage and weather resistance. Each channel section is 80" (6.6ft) long with interlocking ends, and a radiused bottom.

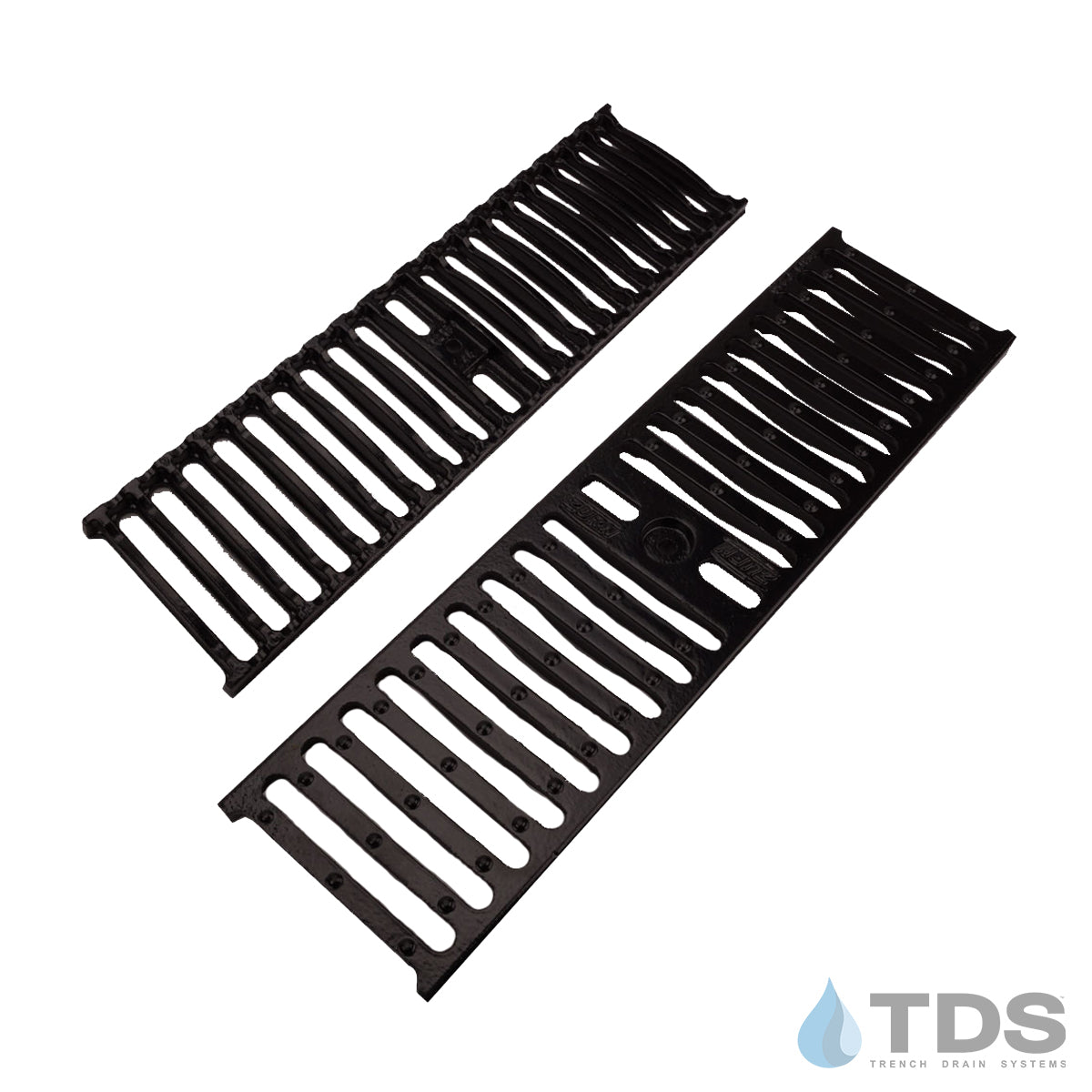

Ductile iron slotted grates (P6-DGC Grate Specification Sheet) have an open area of 18.57 square inches per linear foot, DIN Rating of C, ANSI Rating of Heavy Duty, and are suitable for H-20.

NOTE: Expedited deliveries are not available for this product

Common Uses: Patios, Landscapes, Parking Lots, Warehouses, Driveways
Channel Material: HDPE (polyethylene)
ID (Inner Dimension): 4" interior
OD (Outer Dimension): 6"
Grating: Ductile Iron slotted grates (Load Class: C)
Grate Width: 5-3/8"
Grate Length: 20"

Kit includes:

• 1 – 80" drain channel for each section
• 4 – 20" grates for each section
• Locking Devices
• 1 – End cap
• 1 – End outlet (2 inch)
• Installation instructions
