Z886 channel is designed for light traffic areas with a high water flow rate.

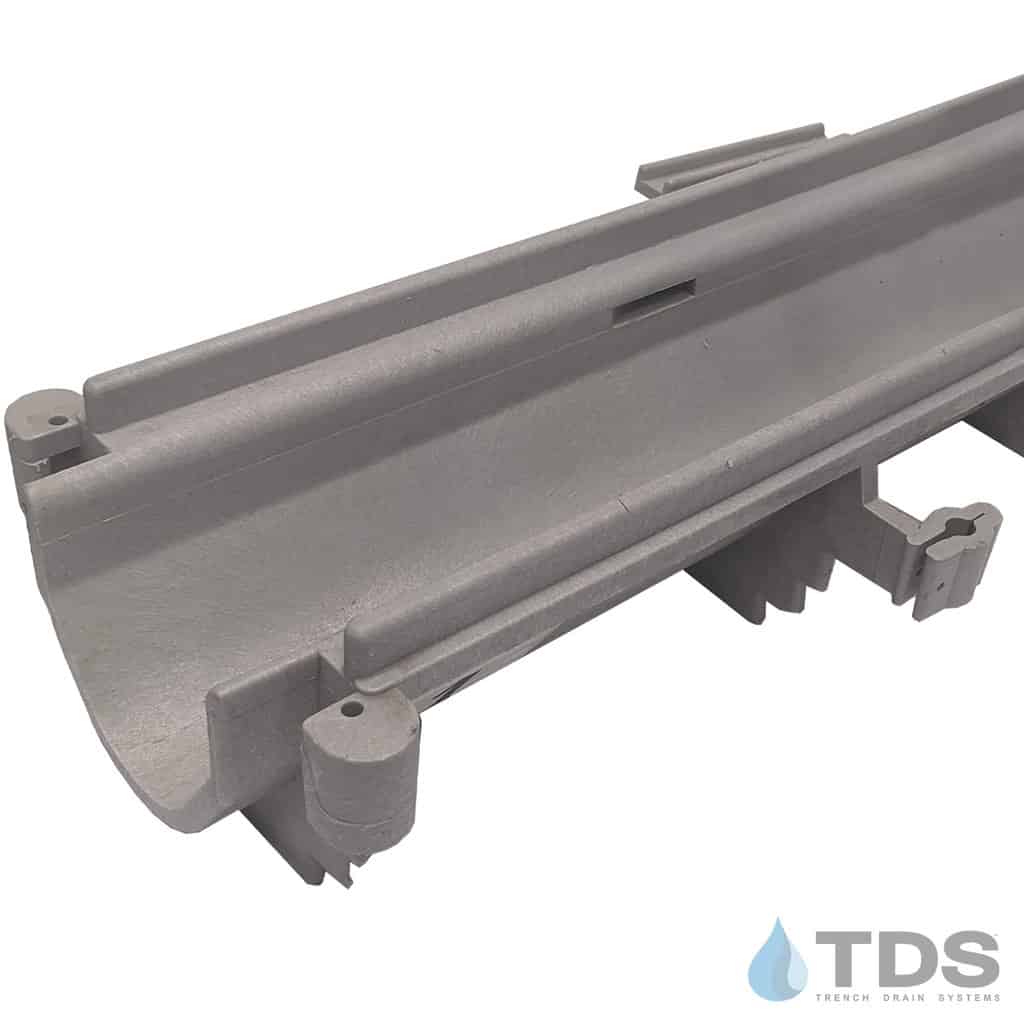

Trench Drain Z886 6" [152 mm] external wide pre-sloped trench drainage system as a 0.75% bottom slope, with a 4-inch channel throat width. The Z886 system's smooth 0% water absorbent High Density Polyethylene (HDPE) structural composite drain channel has a 0.75% bottom slope. All sections are 80-inch modular lengths. Each channel is designed with inter-locking ends and a 1-1/2" self-cleaning radiused bottom, making your trench drain run easier to work with during installation. Rebar stake holders are molded into the channel on sides. This Linear trench drain has combination tie-down/levelling devices at 20-inch intervals.
A variety of grates are offered for the Z886 system. (Grates sold separately.) This system is a great drainage solution for many residential and commercial situations with its durability and longevity.
NOTE: Overnight deliveries are not available for this product
Uses: Driveways, landscapes, patios
Channel Material: High Density Polyethylene (HDPE)
Channel Width: 4" throat
Individual Channel Dimensions: 6.25"W x 80"L
Depth Range: 3.5" - 8.3" (Channel Numbers P886-8601 thru P886-8608, See Chart Below)
