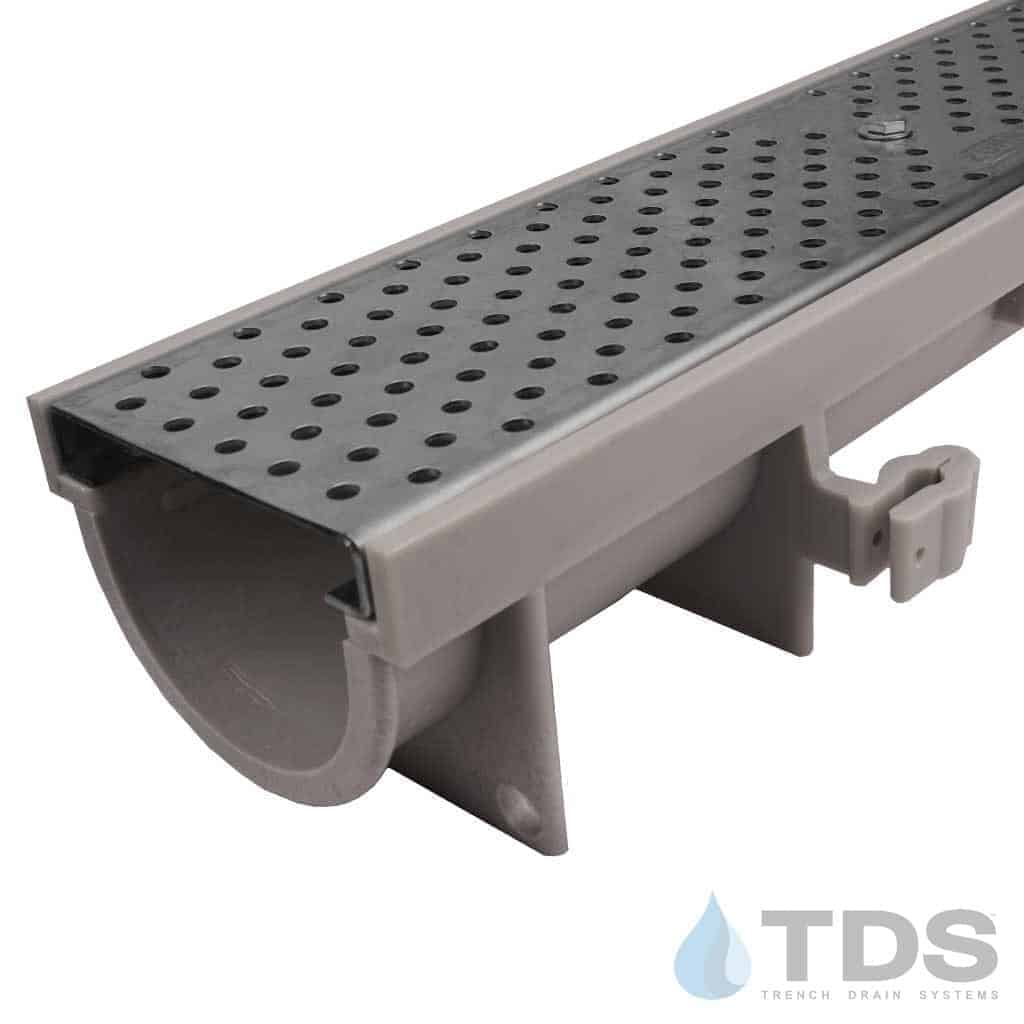

The ZURN Z884 4.75" wide system is designed for light traffic drainage systems with depth restrictions and a high water flow rate. The Z884 system's smooth HDPE (polyethylene) structural composite drain channel with 3.0" [76mm] depth guarantees efficient drainage and weather resistance. Each channel section is 40" (3.3ft) [1016mm] long, with interlocking ends, and radiused bottom. Our Z884 Drainage Kit is a great drainage solution for many residential and commercial situations.

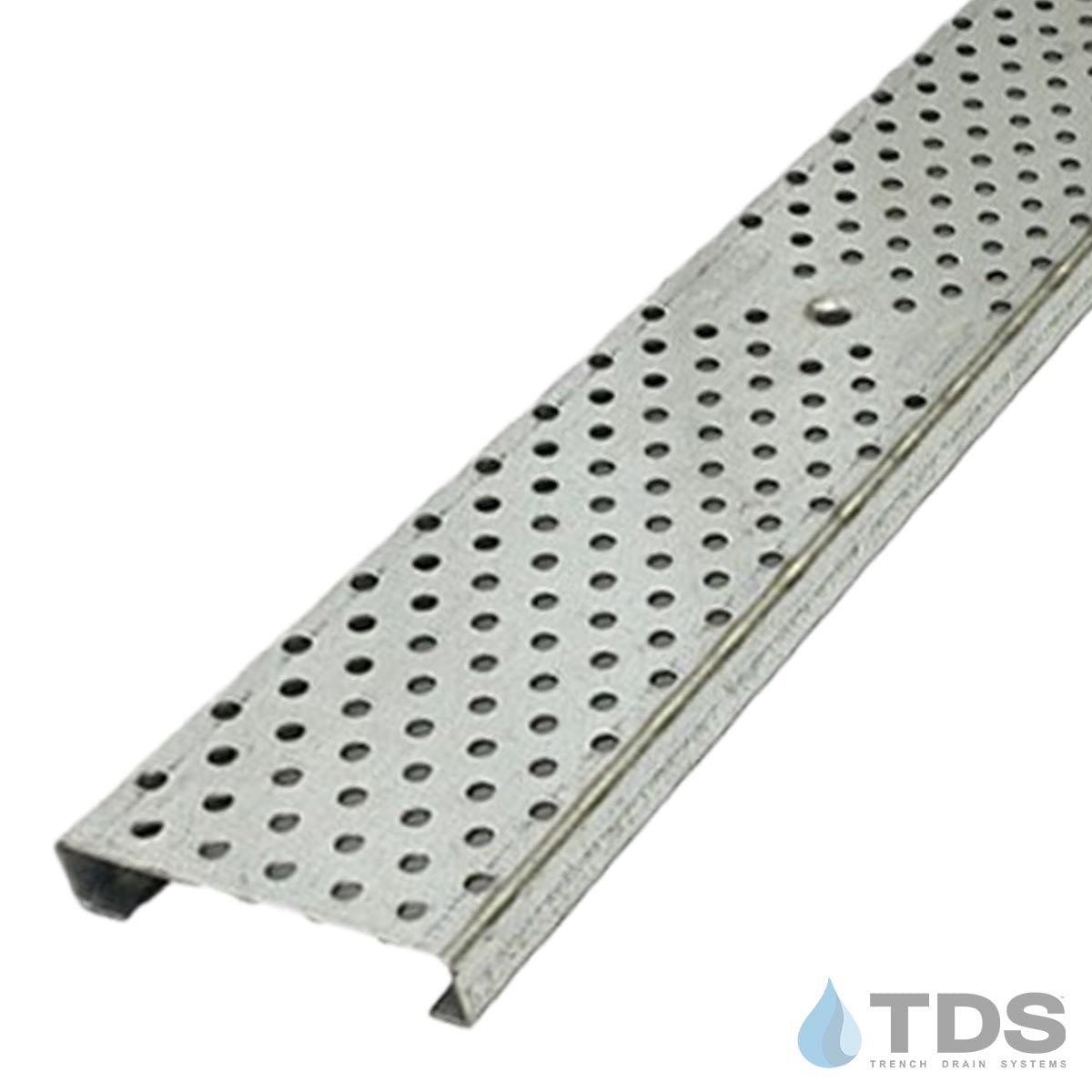

Galvanized perforated non-reinforced grates (P4-PG Grate Specification Sheet) are Load Class A rated for pedestrian traffic.
Rebar stakeholders are molded into the sides of the channel. Channel sections lock together, making your trench drain run easier to handle during installation.
NOTE: Overnight deliveries are not available for this product
Uses: Patios, Sidewalks, Landscapes
Channel Material: HDPE (polyethylene)
Clear Width: 3.25" interior
Total Width: 4.75"
Grating: Galvanized grates (Load Class: A)
Grate Width: 4.125"
Grate Length: 40"
