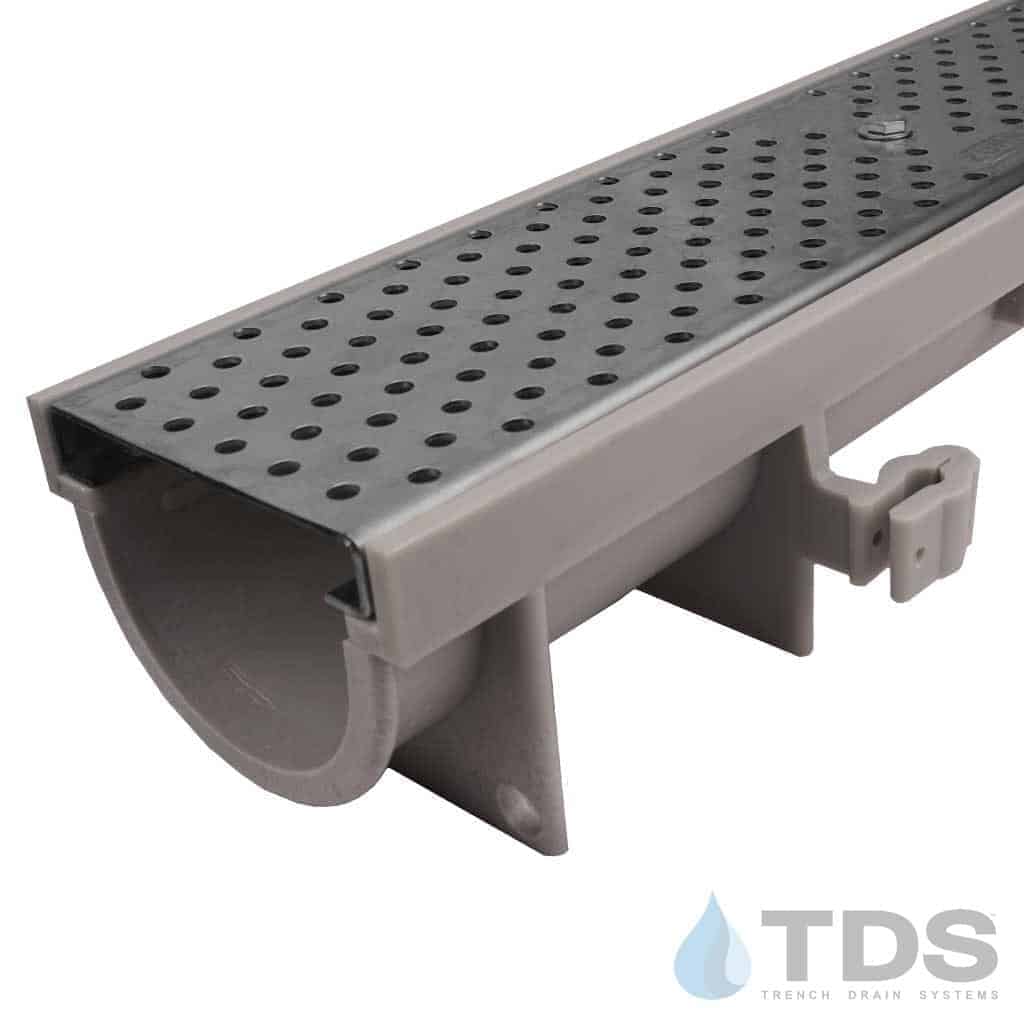

ZURN Z884 Drainage Kit w/ P4-PG Galvanized Perforated Class A Grates

Grate Width: 4.13" for Zurn Z884

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Zurn

System: Z884

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

The ZURN Z884 4.75" wide system is designed for light traffic drainage systems with depth restrictions and a high water flow rate. The Z884 system's smooth HDPE (polyethylene) structural composite drain channel with 3.0" [76mm] depth guarantees efficient drainage and weather resistance. Each channel section is 40" (3.3ft) [1016mm] long, with interlocking ends, and radiused bottom. Our Z884 Drainage Kit is a great drainage solution for many residential and commercial situations.

Galvanized perforated non-reinforced grates (P4-PG Grate Specification Sheet) are Load Class A rated for pedestrian traffic.

Rebar stakeholders are molded into the sides of the channel. Channel sections lock together, making your trench drain run easier to work with during installation.

NOTE: Expedited deliveries are not available for this product

ZURN Z884 Literature

Uses: Patios, Sidewalks, Landscapes
Channel Material: HDPE (polyethylene)
Clear Width: 3.25" interior
Total Width: 4.75"
Grating: Galvanized grates (Load Class: A)
Grate Width: 4.125"
Grate Length: 40"

Our ZURN Z884 kits include:

• 40" drain channel sections
• 40" grate for each section
• Locking Devices for each section
• End cap
• End outlet
• Installation instructions
