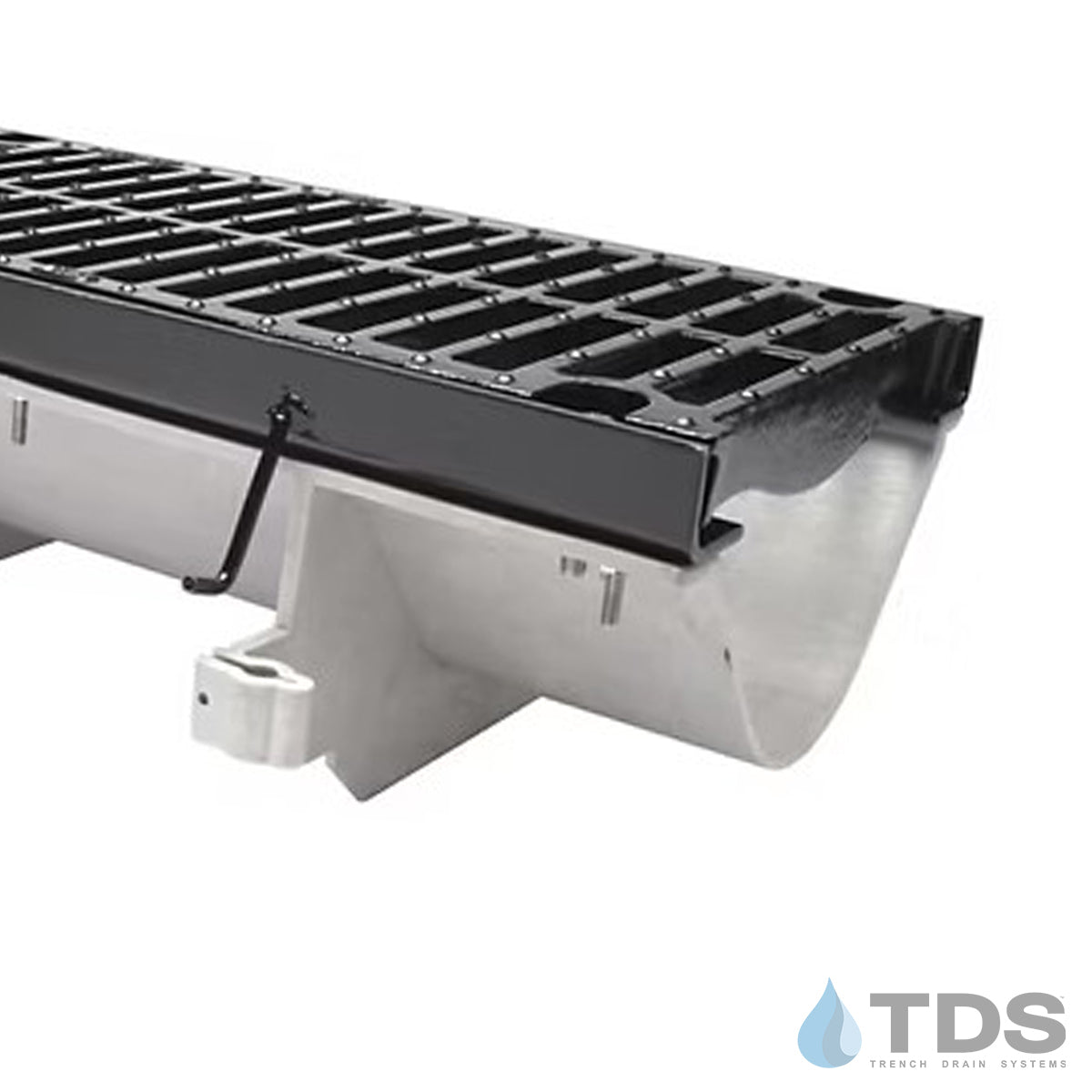

Zurn Z882 Linear Drain Kit w/P12-DGE Ductile Iron Grate & Bottom Outlet

Grate Width:

Grate Thickness:

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Zurn

System: Z882

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging:

Application: General Purpose Drainage - External

The Zurn Z882 Perma-Trench system is made of HDPE and is the high-volume trench drain for fire stations, vehicle maintenance bays, and other heavy-duty situations.

This versatile drainage kit is paired with the Zurn P12-DGE Ductile Iron grate, which has an open area of 60.3 square inches per linear foot, DIN Rating of E, ANSI Rating of Special-Duty, H-20 Load Rated, and FAA Load Rated. Ductile iron conforms to ASTM A536 Grade 80-55-06. Slot size: 49/64" (19mm)

NOTE: Expedited deliveries are not available for this product

Actual Dimensions: 23-15/16" (608mm) L x 11-1/4" (286mm) W

Rebar stakeholders are molded into the channel on the sides. Channel sections lock together, making your trench drain run easier to work with during installation.
