Zurn P6-GHPD 5-3/8" Galvanized Ductile Iron Slotted Grate

Grate Width: 5.38" for Zurn Z886

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel and Ductile/Cast Iron - Raw

Manufacturer: Zurn

System: Z886

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material:

Channel Frame / Edging:

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

Actual Dimensions: 0.75″ [19mm] x 5.38″ [137mm] x 20.00″ [508mm]

Class B Rated, ADA Compliant, Heel-Proof

Large project? Request a Quote

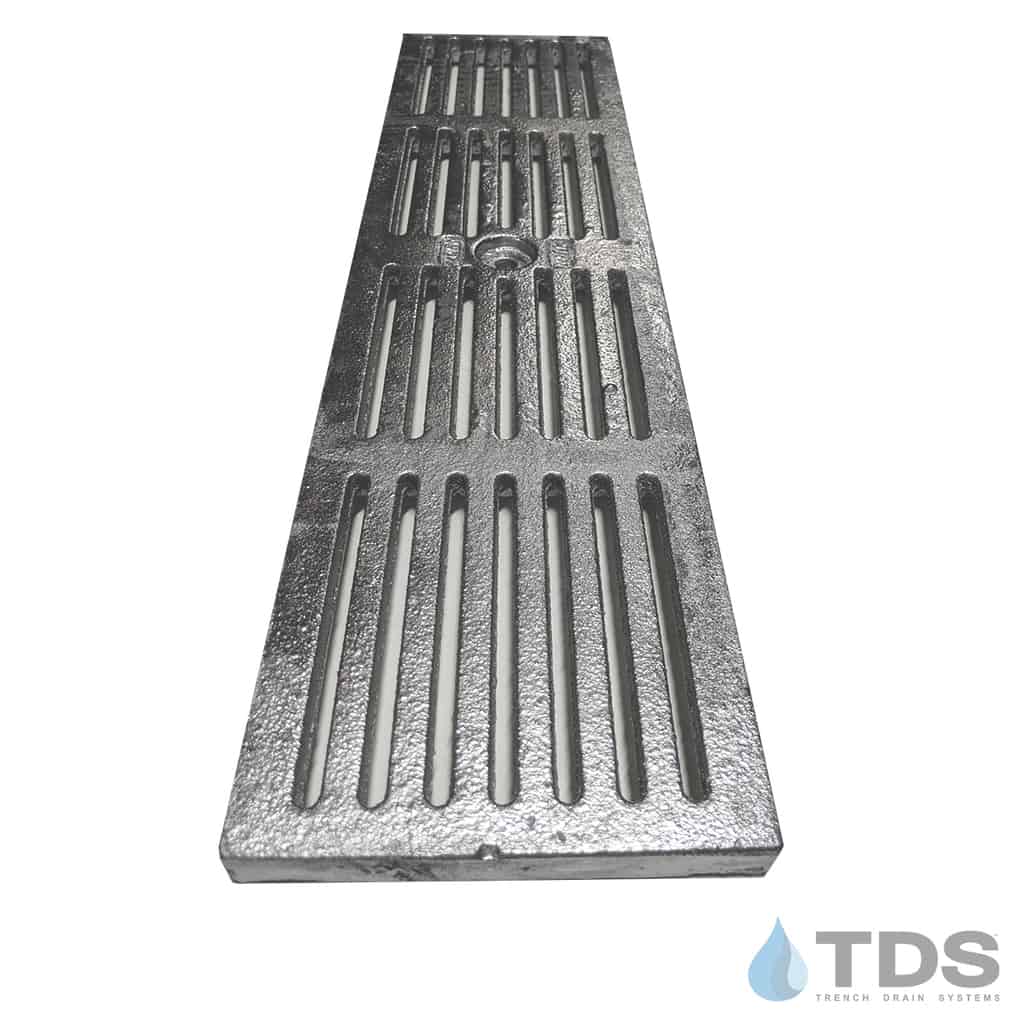

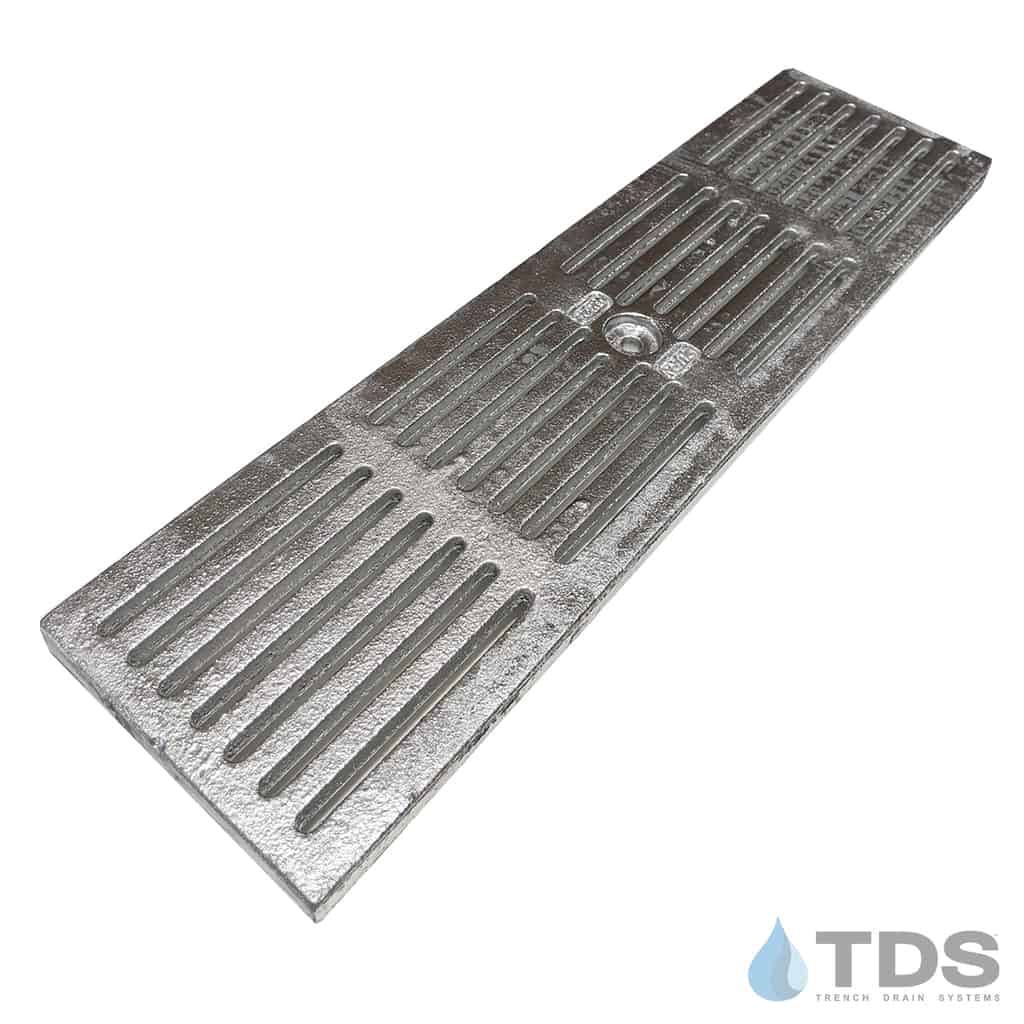

The P6-GHPD is a class B 6″ galvanized ductile iron heel-proof slotted grate.

20” [508mm] X 5-3/8” [137mm] Galvanized ductile Iron heel-proof slotted grate weighing 6.3 lbs per linear
foot [9.5kg/m]. The grate has an open area of 17.0 in² per linear foot [361cm²/m]. Grate conforms to DIN
rating of B, ANSI rating of Medium-Duty, ADA compliant* and ASTM A536 Grade 80-55-06. Galvanized (hot
dip) conforms to ASTM A123.

NOTE: Expedited deliveries are not available for this product

ZURN P6-GHPD-USA Specification Sheet
