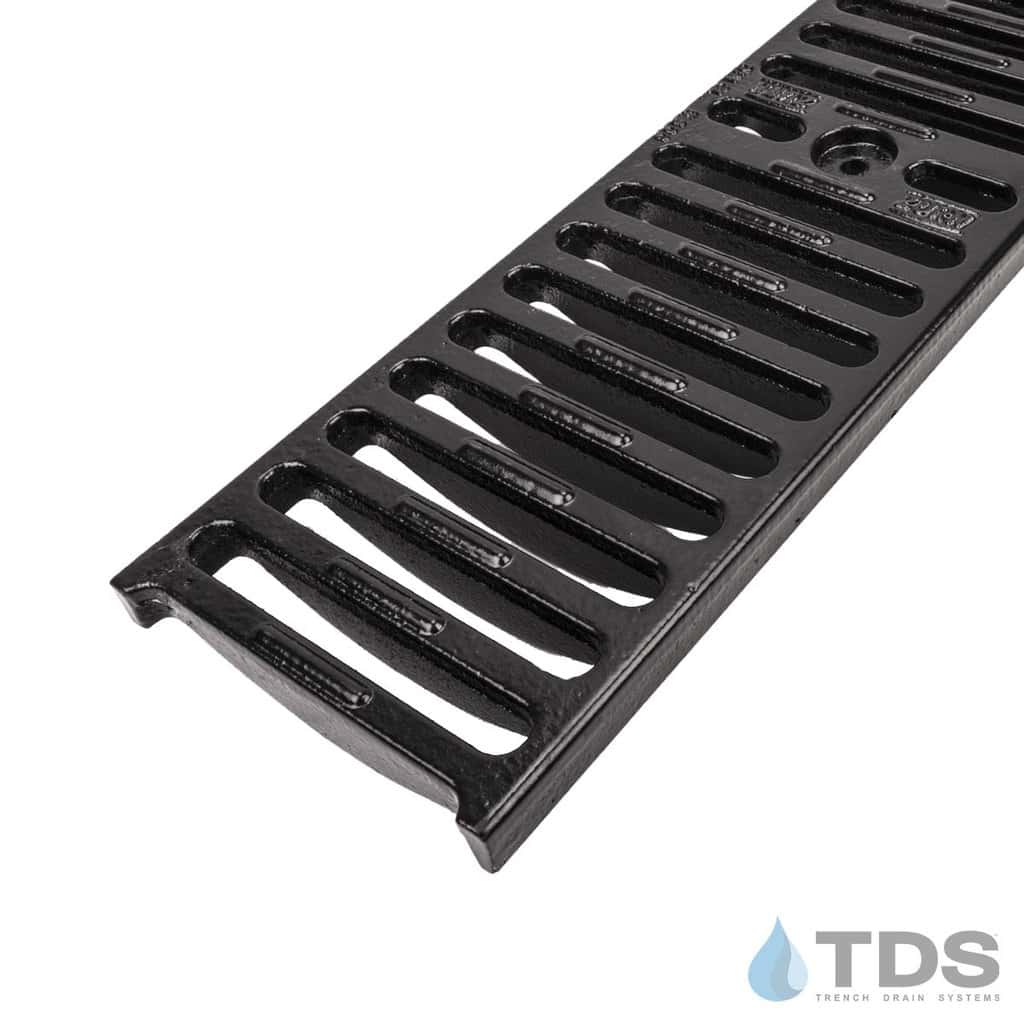

Zurn P6-DGE-USA Class E Slotted Ductile Iron 6" x 20" Grate

Grate Width: 5.38" for Zurn Z886

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Zurn

System: Z886

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material:

Channel Frame / Edging:

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

Ductile Iron Slotted Grate Made in the USA, Load Class E, H-20 and FAA Rated
Large project? Request a Quote

The Zurn® P6-DGE-USA, Ductile Iron Slotted grate, with a open area of 28.2 square inches per linear foot, DIN Rating of E, ANSI Rating of Special Duty. H-20 FAA Load rating. Made to fit the Zurn® Z806, Z886, Z886-ST, Z890 and Zurn Z883 trench drain systems. Slot hole width 0.5"

Measures 5.375"W x 20"L x 1.375"H

*The P6-DGE-USA is a replacement for the discontinued P6-DGC, P6-DGC-NA, P6-DGE and P6-DGC-USA grates.

NOTE: Expedited deliveries are not available for this product

Need an economical version of the same grate? If your project allows for imports, click here for an alternative option.

ZURN P6-DGE-USA Spec Sheet
