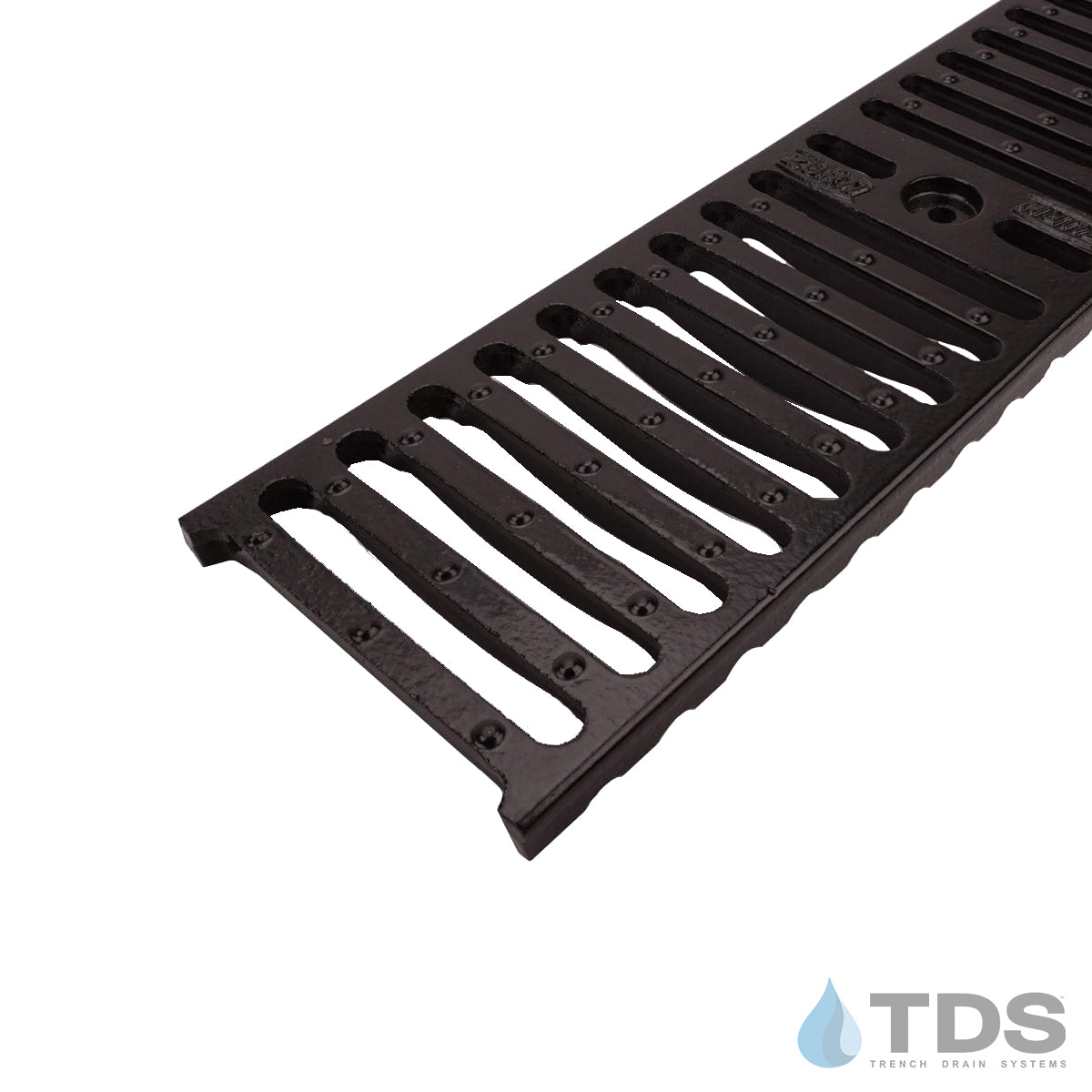

Zurn P6-DGC Class C H-20 Slotted Ductile Iron 6" x 20" Grate

Zurn P6-DGC Class C H-20 Slotted Ductile Iron 6" x 20" Grate

  • Z886-DGC-TDSdrains (1)ductile iron class c grate

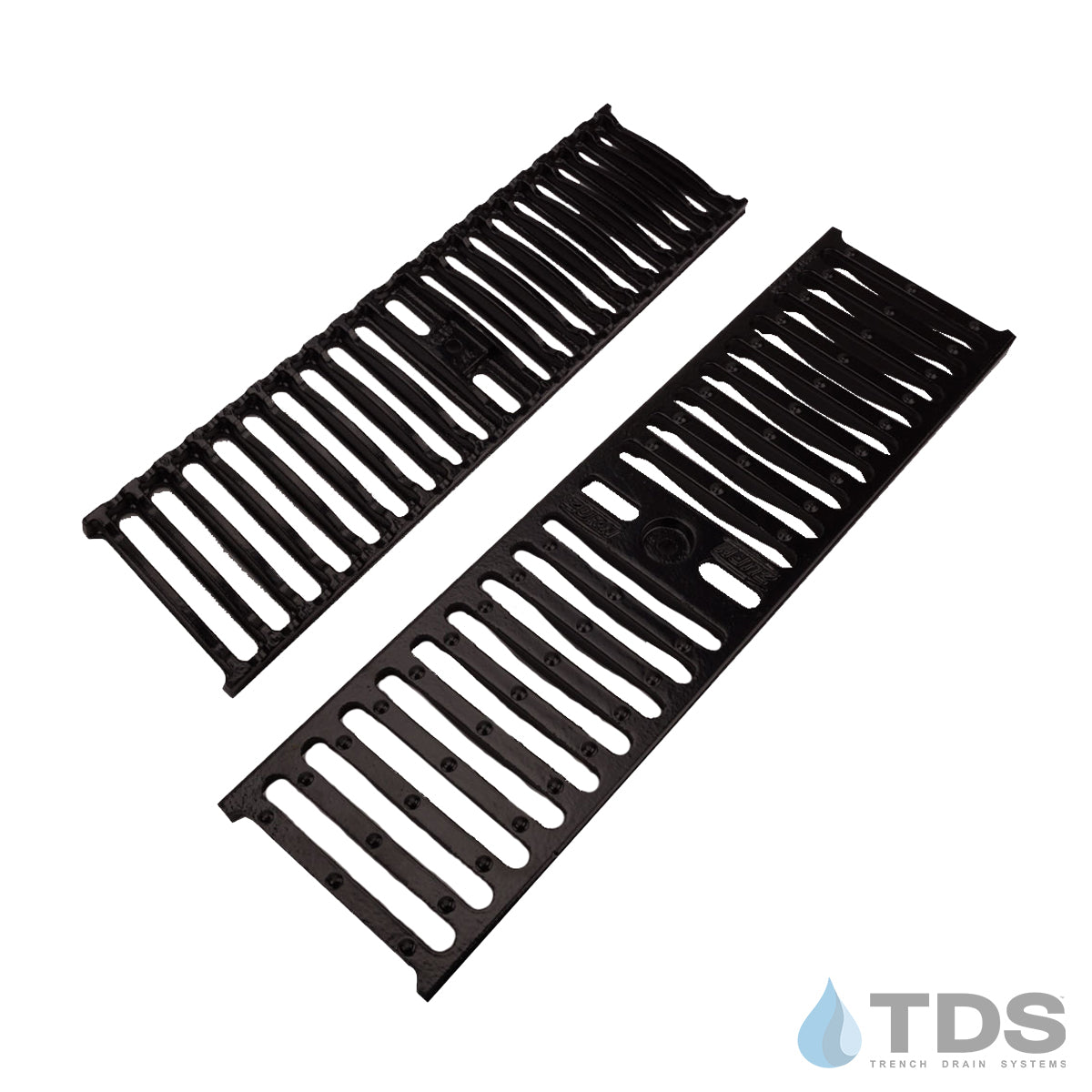

  • Z886 P6-DGC Grate Front and Back for Z886 System
1 2

Drainage Kits

P6-DGC

Large project? Request a Quote
$87.20 USD
$0.00 USD $87.20 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5.38"
  • Grate Thickness: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: ZURN
  • System: Z886
  • Grate Load Class: C
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material:
  • Frame/Edging:
  • Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Transportation

Description

Large project? Request a Quote

The Zurn® P6-DGC Ductile Iron grate has an open area of 18.57 square inches per linear foot. This 5-3/8" x 20" x 3/7" H grate has a DIN Rating of C and an ANSI Rating of Heavy Duty. The floor drain grate is designed to fit the Zurn® Z806, Z886, Z886-ST, Z890, and Zurn Z883 trench drain systems. The P6-DGC grate is typically used in a variety of heavy-duty applications.

Designed to fit: NDS – Spee-D Channel

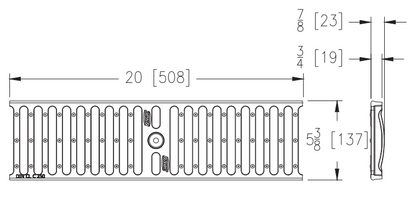

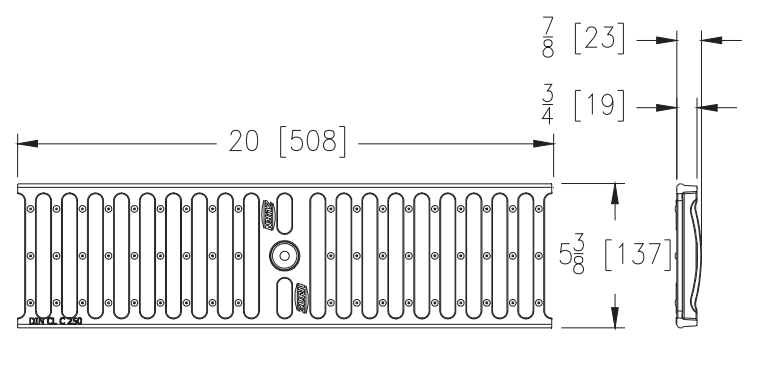

Specification Sheet for P6-DGC

NOTE: Overnight deliveries are not available for this product
