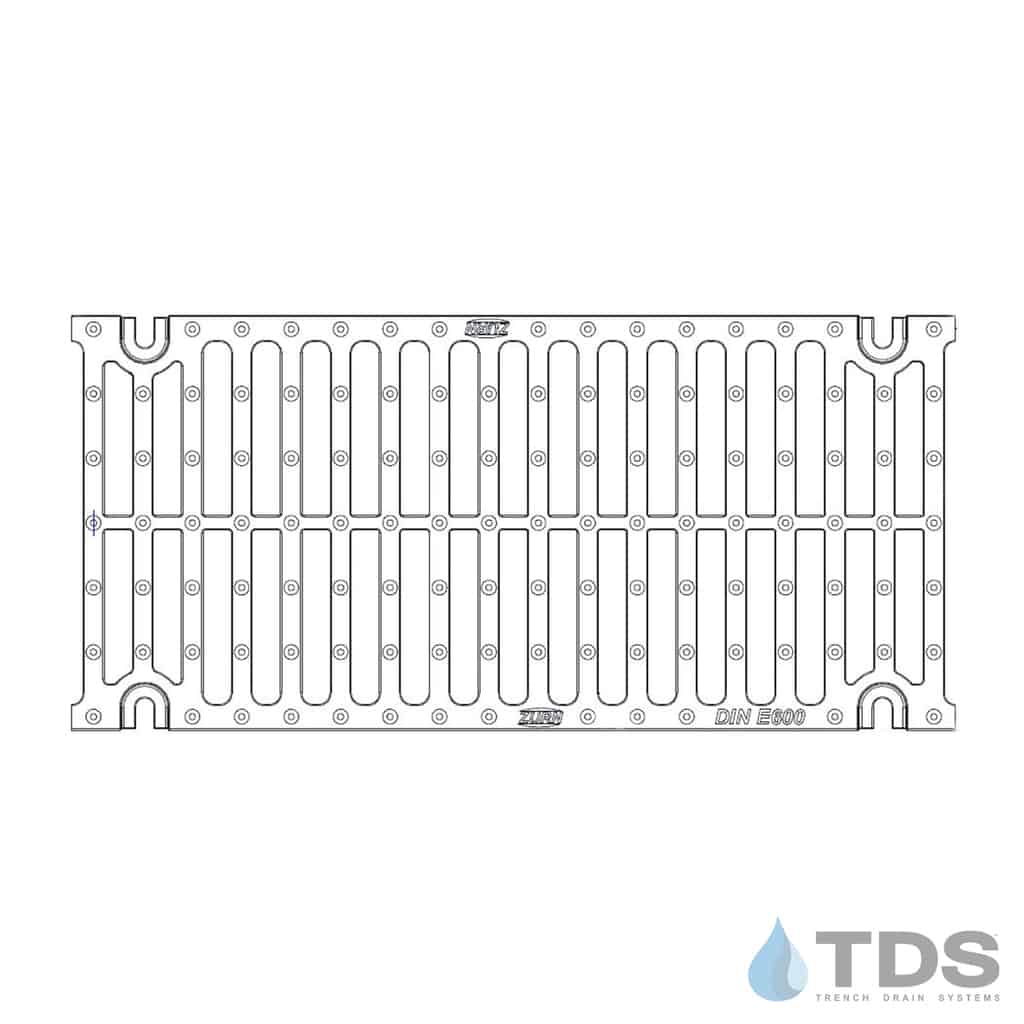

Zurn P12-DGE H-20 Class E Slotted Ductile Iron 12" x 24" Grate

Grate Width: 11.25"

Grate Thickness: 1.44"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Zurn

System: Z882

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material:

Channel Frame / Edging:

Application: Chemical Processing, General Purpose Drainage - External, and Transportation

Class E Ductile Iron Grate.
Large project? Request a Quote

The Zurn P12-DGE Ductile Iron grate has an open area of 60.3 square inches per linear foot, DIN Rating of E, ANSI Rating of Special-Duty, H-20 Load Rated, FAA Load Rated. Ductile iron conforms to ASTM A536 Grade 80-55-06. Slot size: 49/64" (19mm)

Made to fit the Zurn Z882 and Zurn Z812 trench drain systems.

NOTE: Expedited deliveries are not available for this product

Actual Dimensions: 23-15/16" (608mm) L x 11-1/4" (286mm) W
