USF 6235 Slotted Gray Iron 24" X 24" Catch Basin Grate | Load Class D

Grate Width: 24.00" x 24.00"

Grate Thickness:

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: USF

System: Foundry

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application:

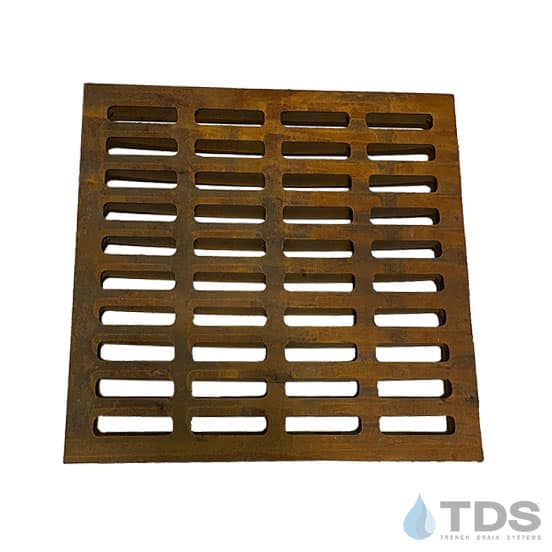

24″ x 24″ Gray Iron Catch Basin Grate

This Heavy-Duty SKU# 6235 Gray Iron Catch Basin Grate is an excellent replacement for any 24" x 24" catch basin grate.

This slotted grate measures 24"W x 24"L. Slots measure 1-1/4" wide. Each grate weighs 155 lbs.

Meets Load Class D load requirements for Extra Heavy Loads.

These grates are ideal for industrial areas, forklifts, traffic ports, dock sides, airports, and more.

This catch basin grate has an ASTM-A48 certification.

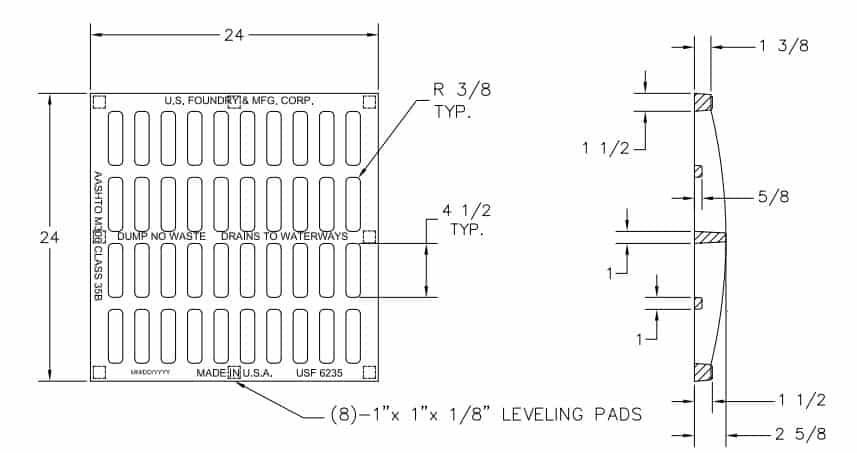

Spec Sheet: US Foundry Grayt Iron 24" x 24" Catch Basin Grate | Load Class D | Made in the USA
