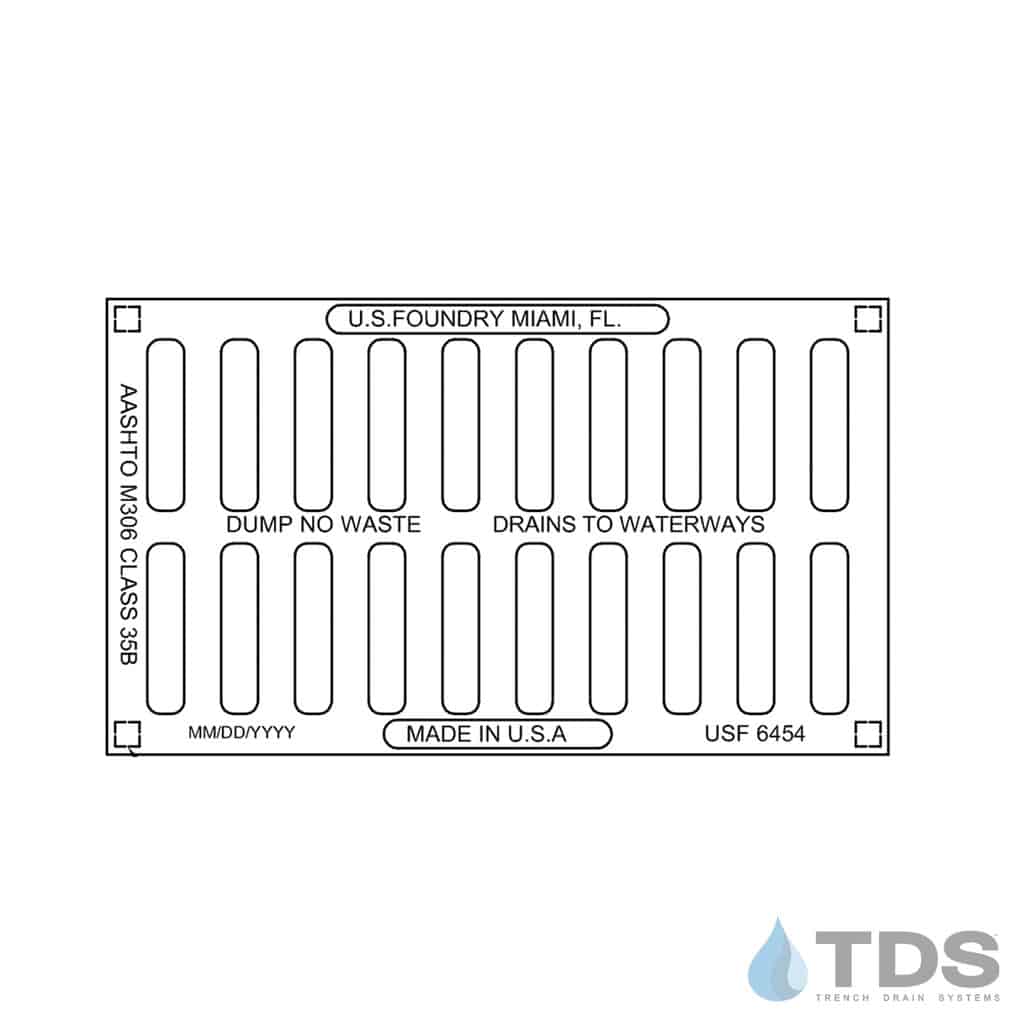

US Foundry 6454 Heavy Duty Cast Iron 14″ x 24″ x 1.5" Grate

Grate Width:

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: USF

System: Foundry

Grate Load Class:

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application:

Heavy Duty Grate
Extended Lead Time
Large project? Request a Quote

Call 610-882-3630 for availability.

NOTE: This item may have an extended Lead Time. Due to the weight of this product, expect higher than normal shipping costs.

SEE J-4223-01 AS AN ALTERNATIVE

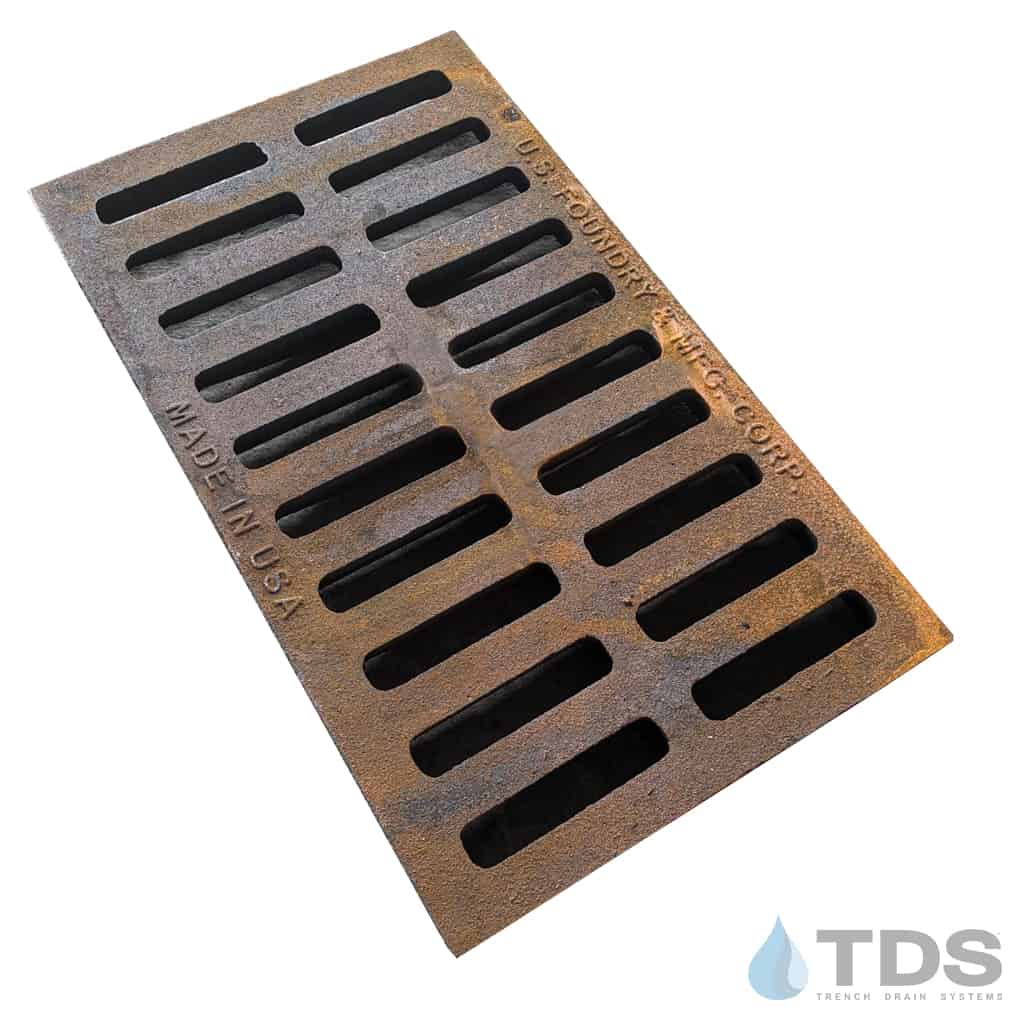

Cast iron heavy-duty grate. Grate openings are 1-1/8" wide. Bottom ' leveling feet' can be ground for proper height adjustment. Each individual grate weighs 66 lbs.

ASTM-A48 Gray Iron Class 35B, Made in the USA

Looking to create a trench drain system with these grates? We have a variety of rails/frames to make the build easier.

ADA Compliant Alternate Available: SKU# 6269

6454 Specification Sheet

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
