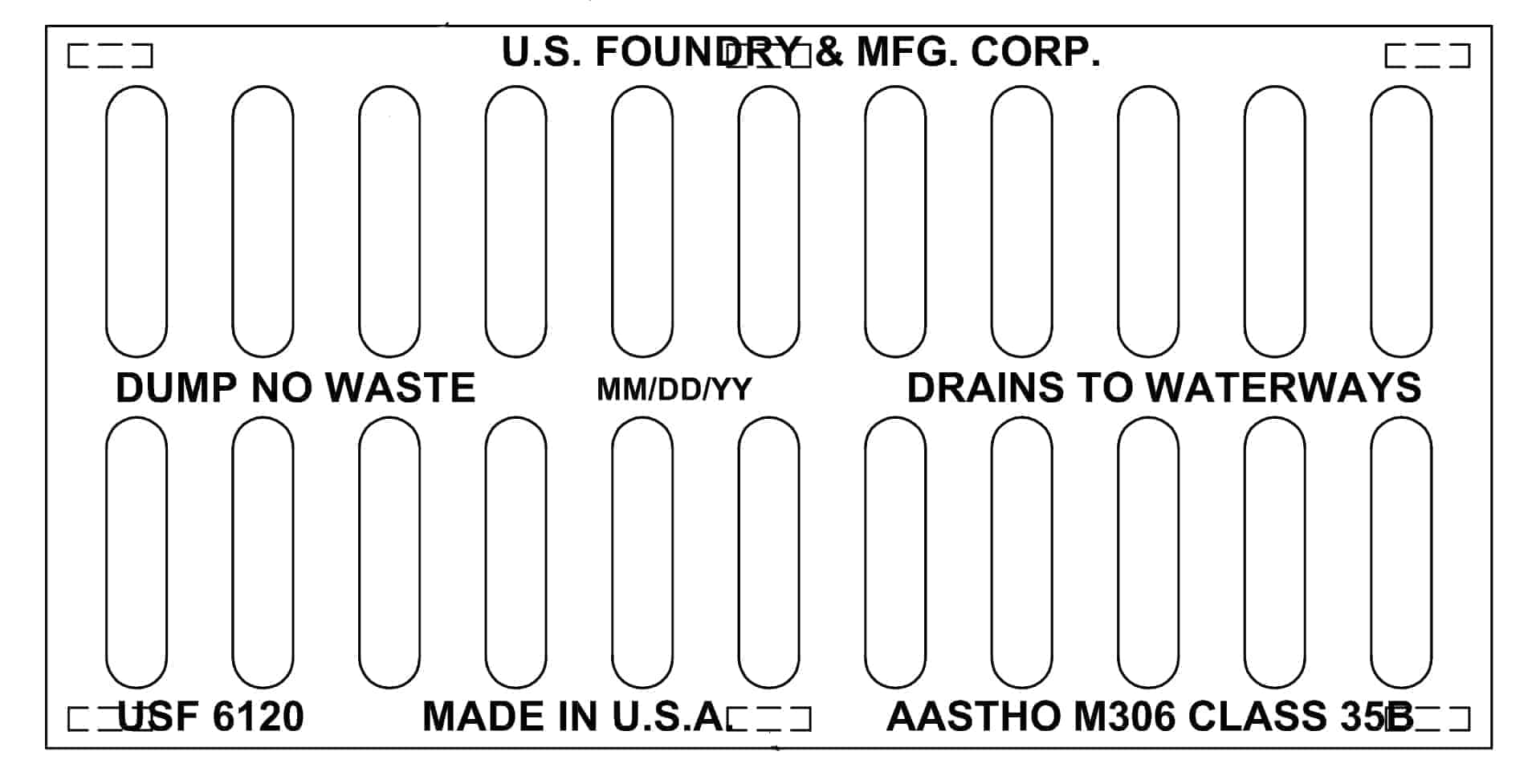

US Foundry 6120 Heavy Duty Cast Iron 12″ x 24″ x 2" Grate

Grate Width: 12.00"

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: USF

System: Foundry

Grate Load Class:

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application:

Extended Lead Time

Heavy Duty Grate

Large project? Request a Quote

NOTE: This item may have an extended lead time. Due to the weight of this product, expect higher than normal shipping costs.

Cast iron heavy duty grate. Grate openings are 1" wide. Bottom ' leveling feet' can be ground for proper height adjustment. Each individual grate weighs 80 lbs each.

Class 35B

Made in the USA

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

6120 Specification Sheet
