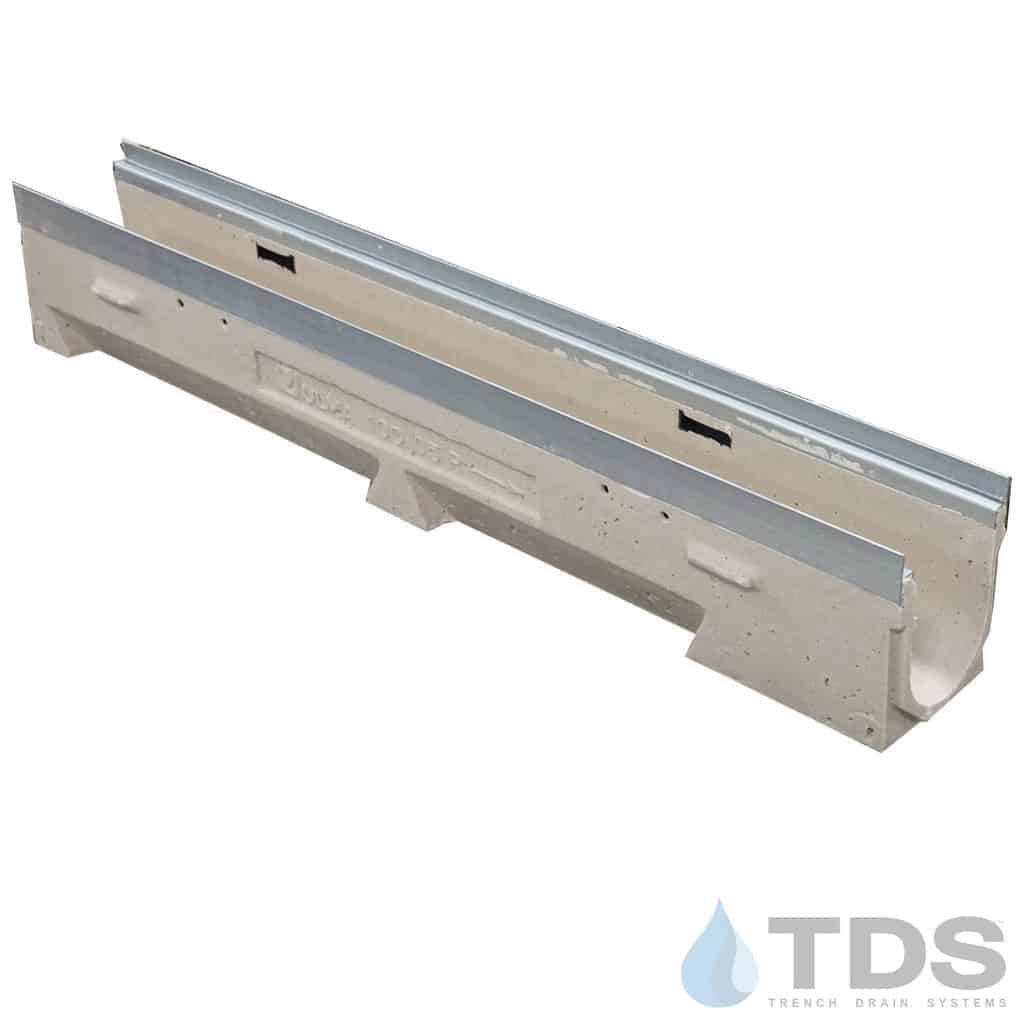

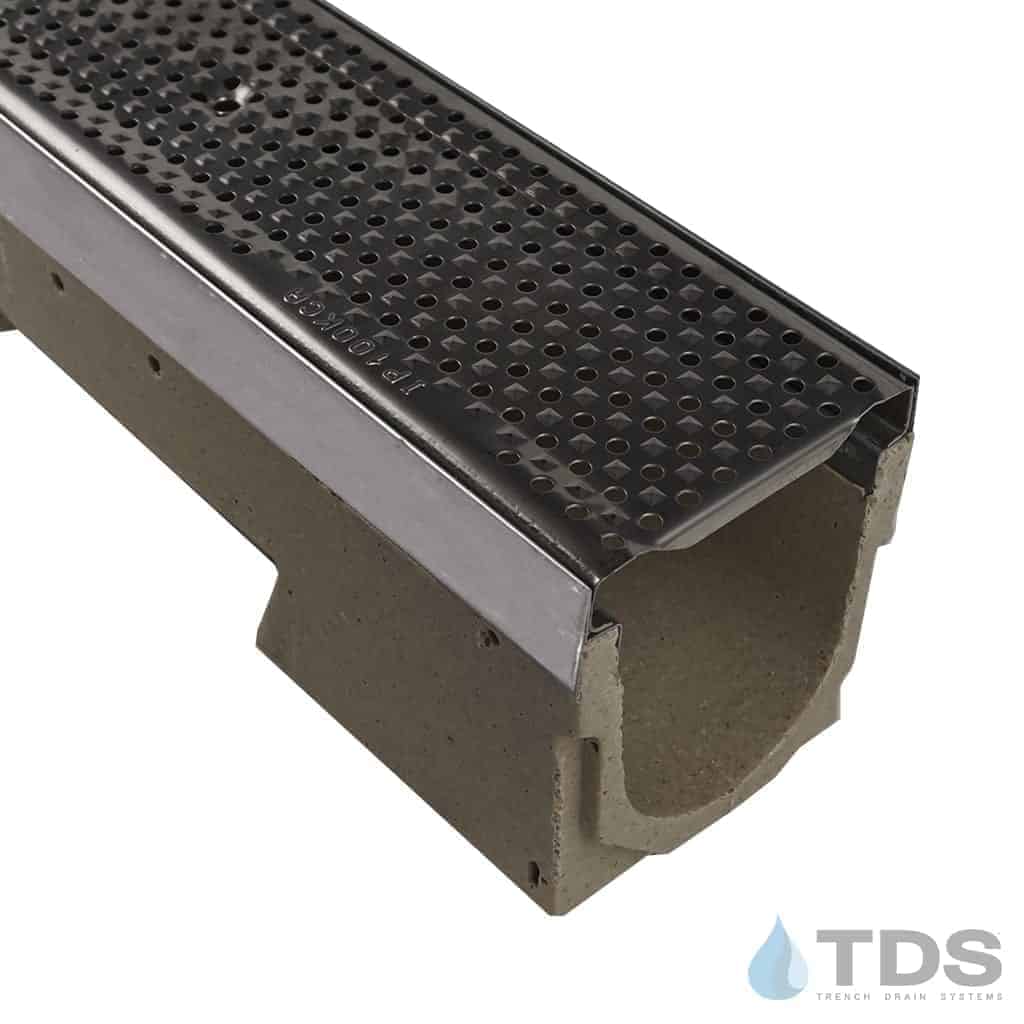

This pre-sloped polymer concrete trench drain kit uses the ULMA Type U100KX channel with integral stainless steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. The locking system consists of the stainless steel locking bar CX100 and hex head screws. Installation hardware is included.

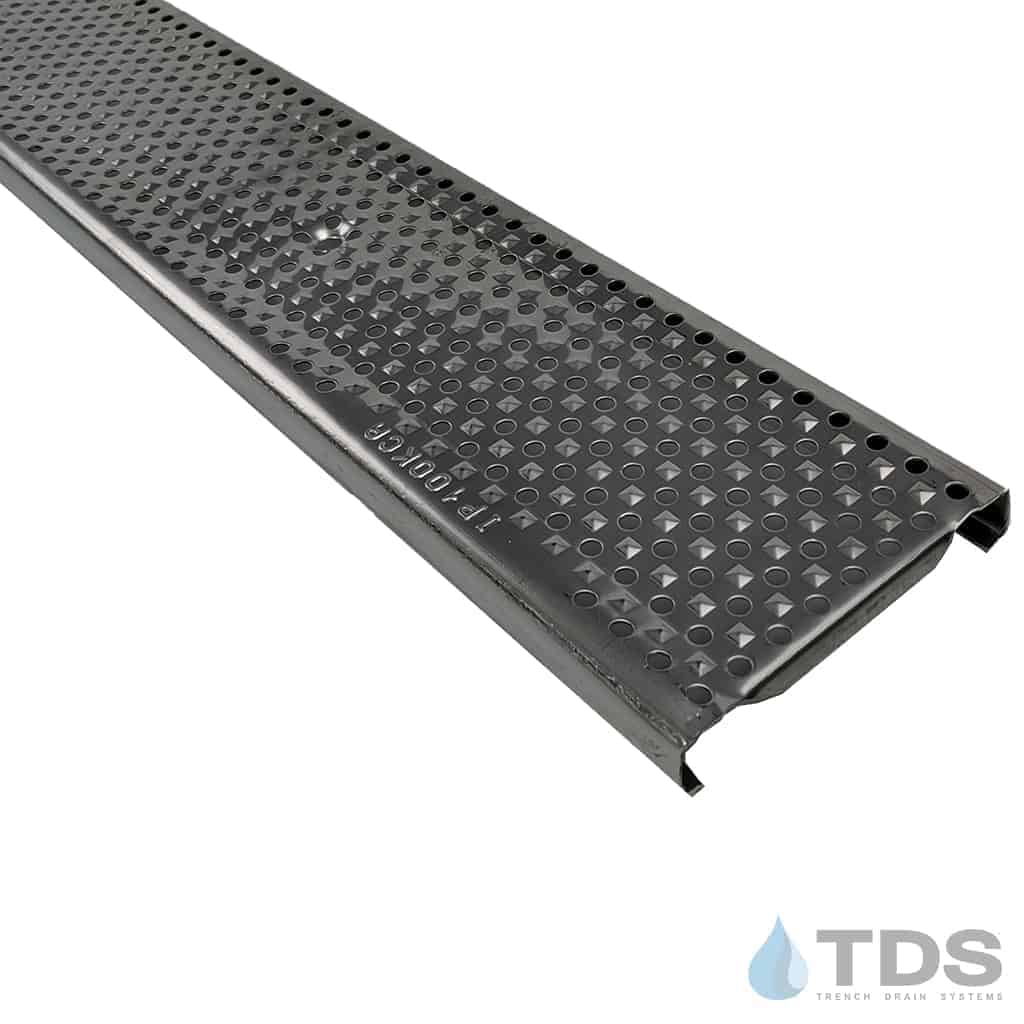

Ulma has a wide variety of drain gratings for their 100 mm wide channels. This kit includes a standard, 440 stainless steel perforated grate (Ulma Number IP100KCA). This grate is 124 mm wide and 999 mm in length. One grate is required for each 1-meter Ulma channel. This grating has a Load Class A rating.
