ULMA U100KX w/ Reinforced Stainless Steel Slotted Grate (454) Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: ULMA

System: U100KX

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

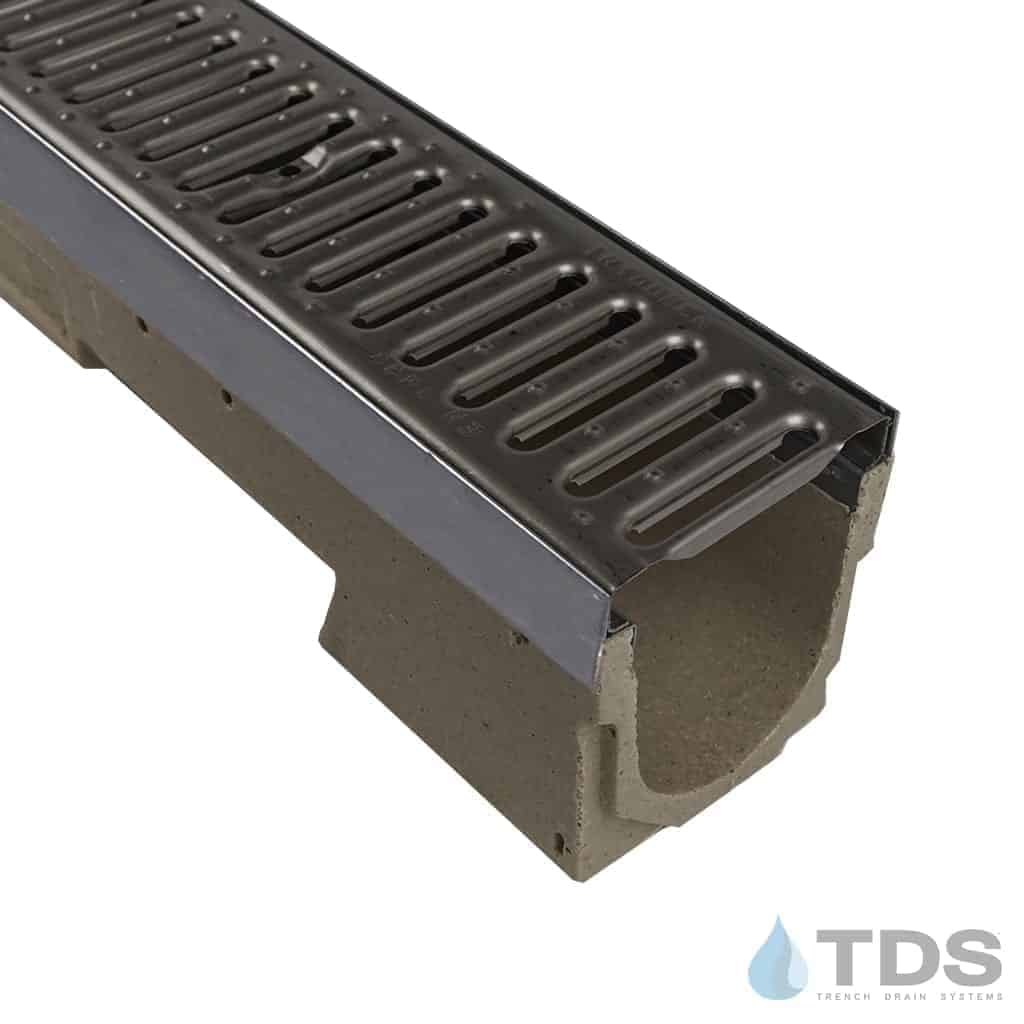

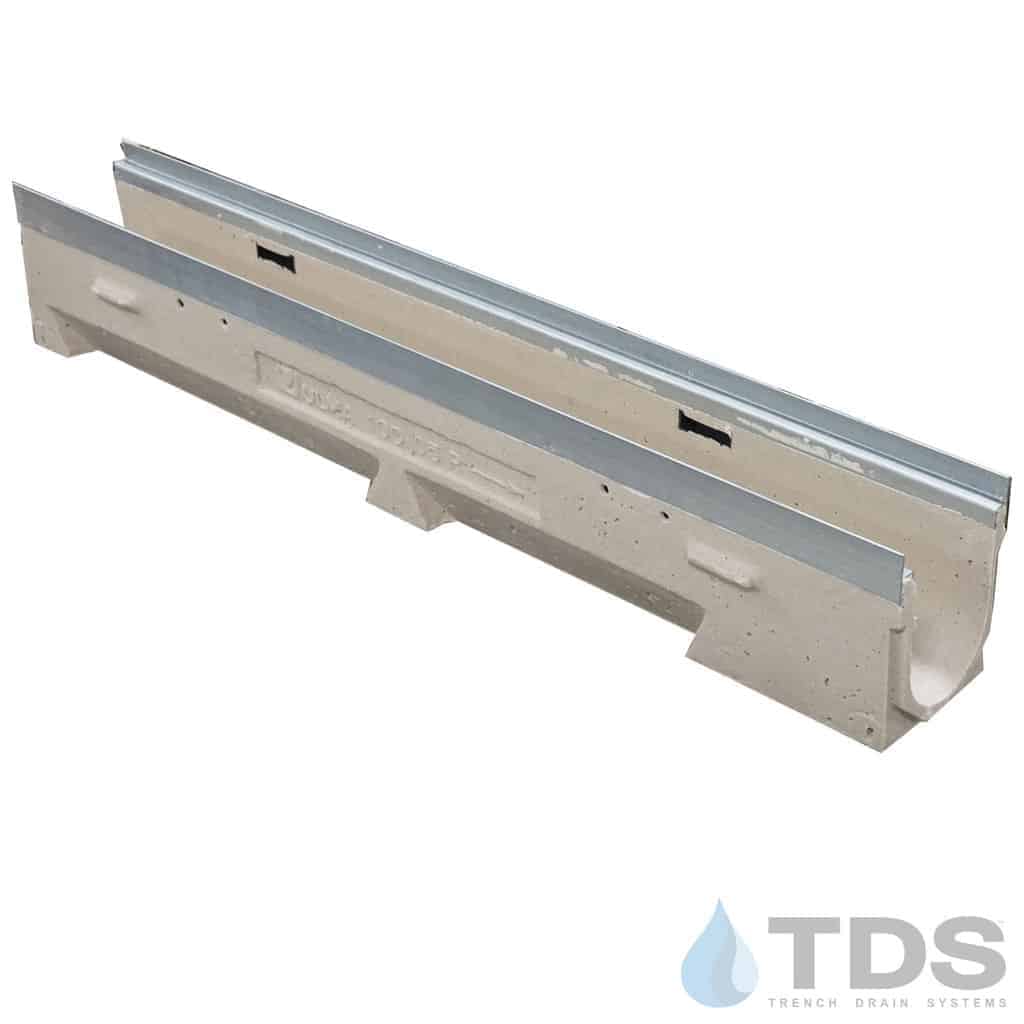

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100KX channel with integral stainless steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. Locking system consists of the stainless steel locking bar CX100 and hex head screws. Installation hardware is included.

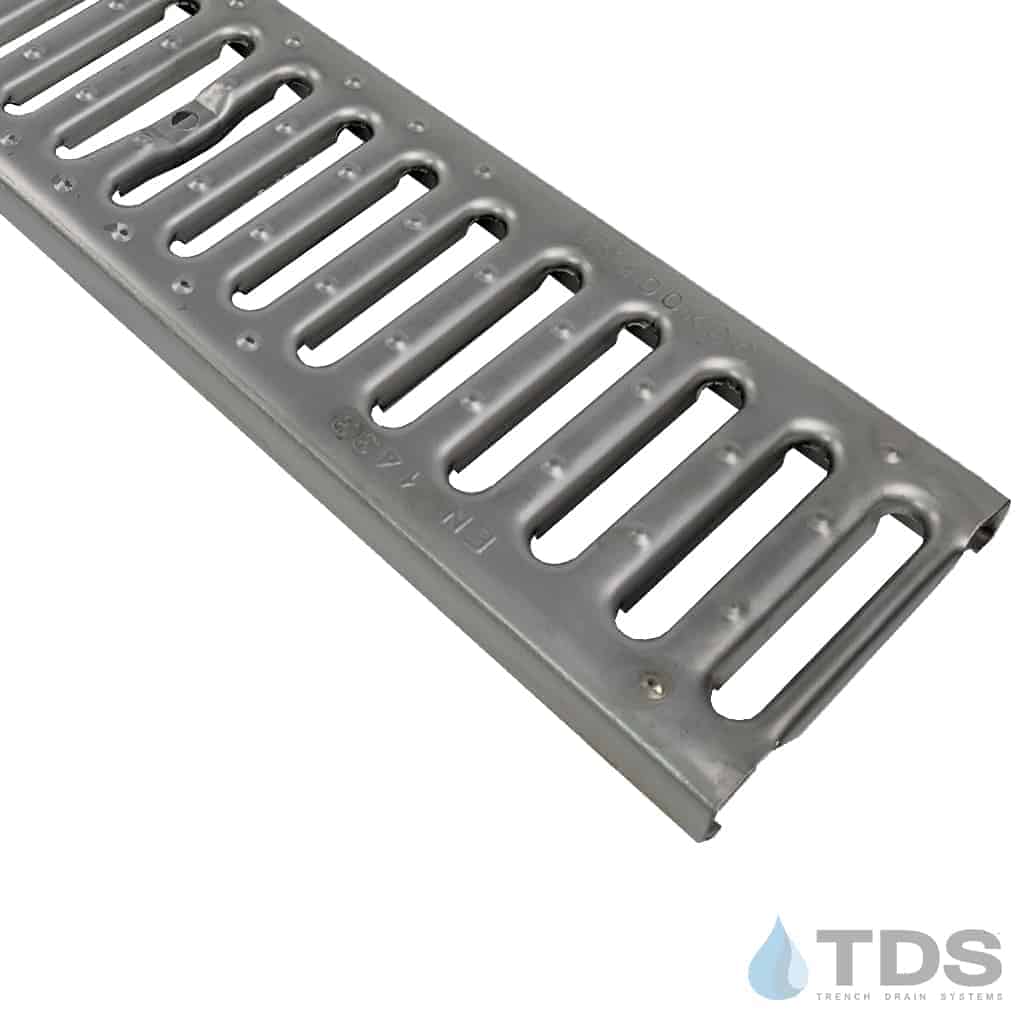

ULMA has a wide variety of drain gratings for their 100 mm wide channels. This kit includes a standard, 454 Stainless steel slotted grate (Ulma Number IN100KCC). This grate is 124 mm wide and 999 mm in length. One grate is required for each one-meter ULMA channel. This grating has a load class C rating.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channels)
• End Outlet (not included with half channels)

Half Meter/2-foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
