ULMA U100KX w/ Ductile Iron Slotted Grate Class C (460)

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA

System: U100KX

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100KX channel with integral stainless steel edging.  It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm.  Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws.  Installation hardware is included.

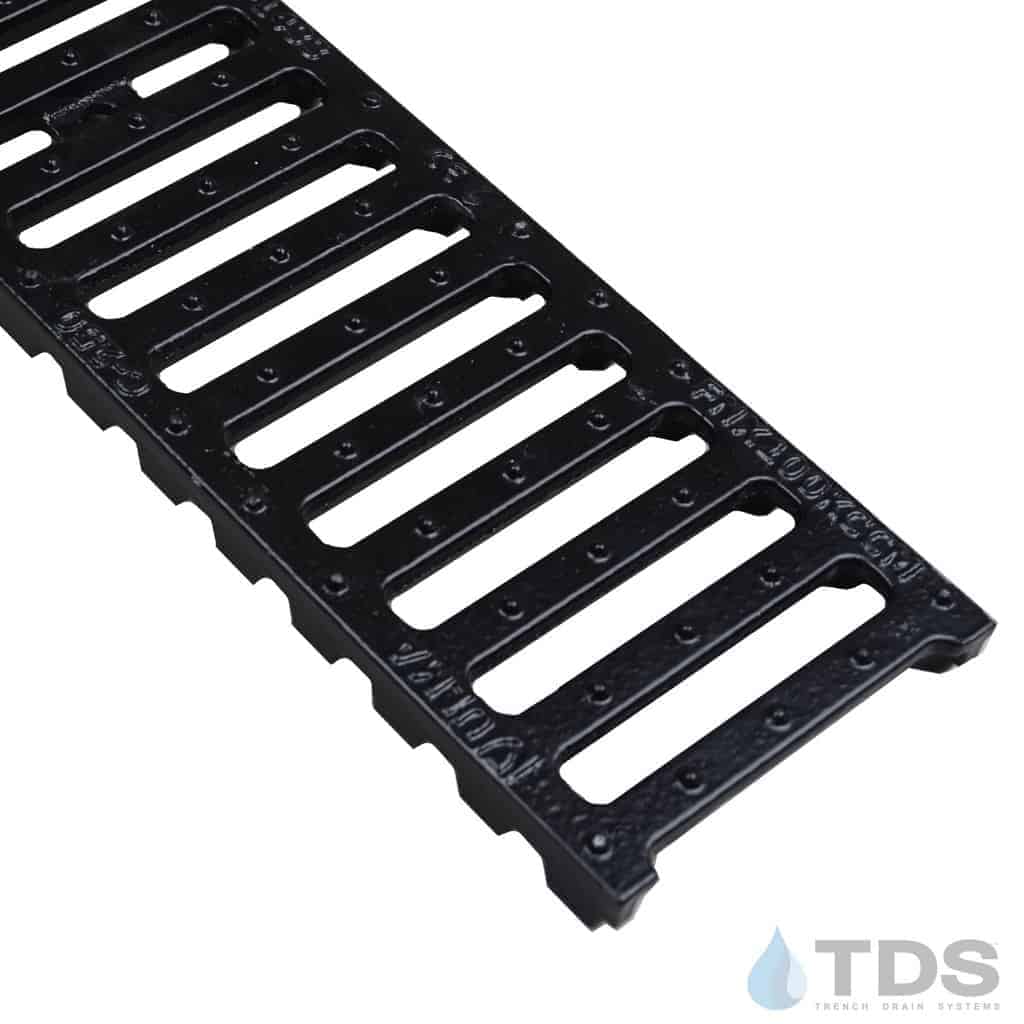

ULMA has a wide variety of drain gratings for their 100 mm wide channels.  This kit includes a standard, 460 ductile iron slotted grate (ULMA Number FNX100KCCM).  This grate is 124 mm wide and 498 mm in length.  Two grates are required for each 1-meter ULMA channel.  This grating has a load class C rating.

U1KX-460-01 U1KX-460-02 U1KX-460-03 U1KX-460-04 U1KX-460-05 U1KX-460-12

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channels)
• End Outlet (not included with half channels)
