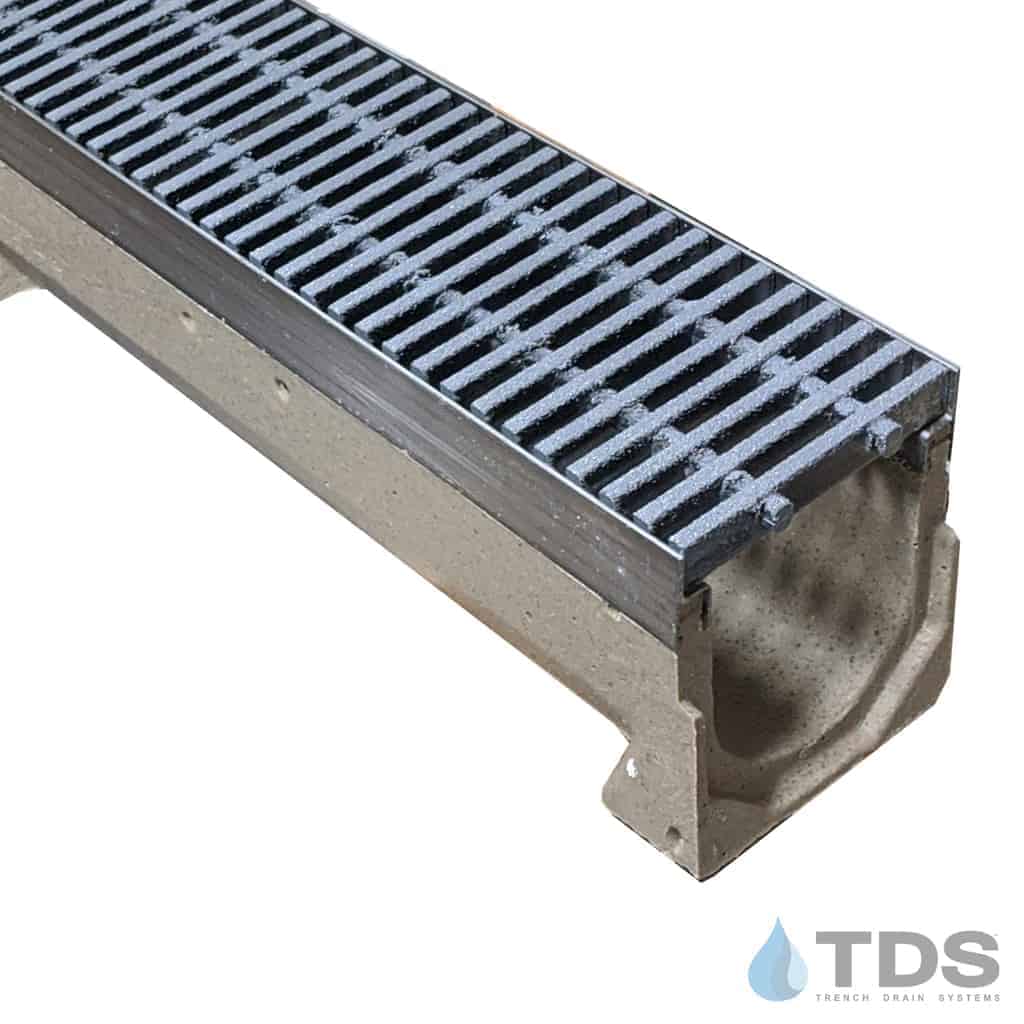

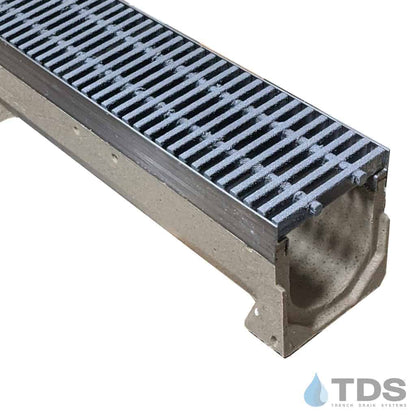

ULMA U100KX Kit with TDS 488 Vinyl Ester Bar Grate 0.6" on Center (1M)

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100KX

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes:

• 1M (3.3 ft) polymer concrete channel sections
• Fiberglass Grate (item# 488) 1M; Qty.1 grate per 1M channel section
• Qty.1, closed end inlet cap (PL-90860-CE) per kit
• Qty.1, open end outlet cap (PL-90860-OE) per kit
• Qty.2 Installation Chairs (ID100) per 1M channel section
• Qty.2 Locking Devices (LD100X-5) per 1M channel section

Kit includes:

• 1M (3.3 ft) polymer concrete channel sections
• Fiberglass Grate (item# 488) 1M; Qty.1 grate per 1M channel section (Load Class C)
• Qty.1, closed end inlet cap (PL-90860-CE) per kit
• Qty.1, open end outlet cap (PL-90860-OE) per kit
• Qty.2 Installation Chairs (ID100) per 1M channel section
• Qty.2 Locking Devices (LD100X-5) per 1M channel section

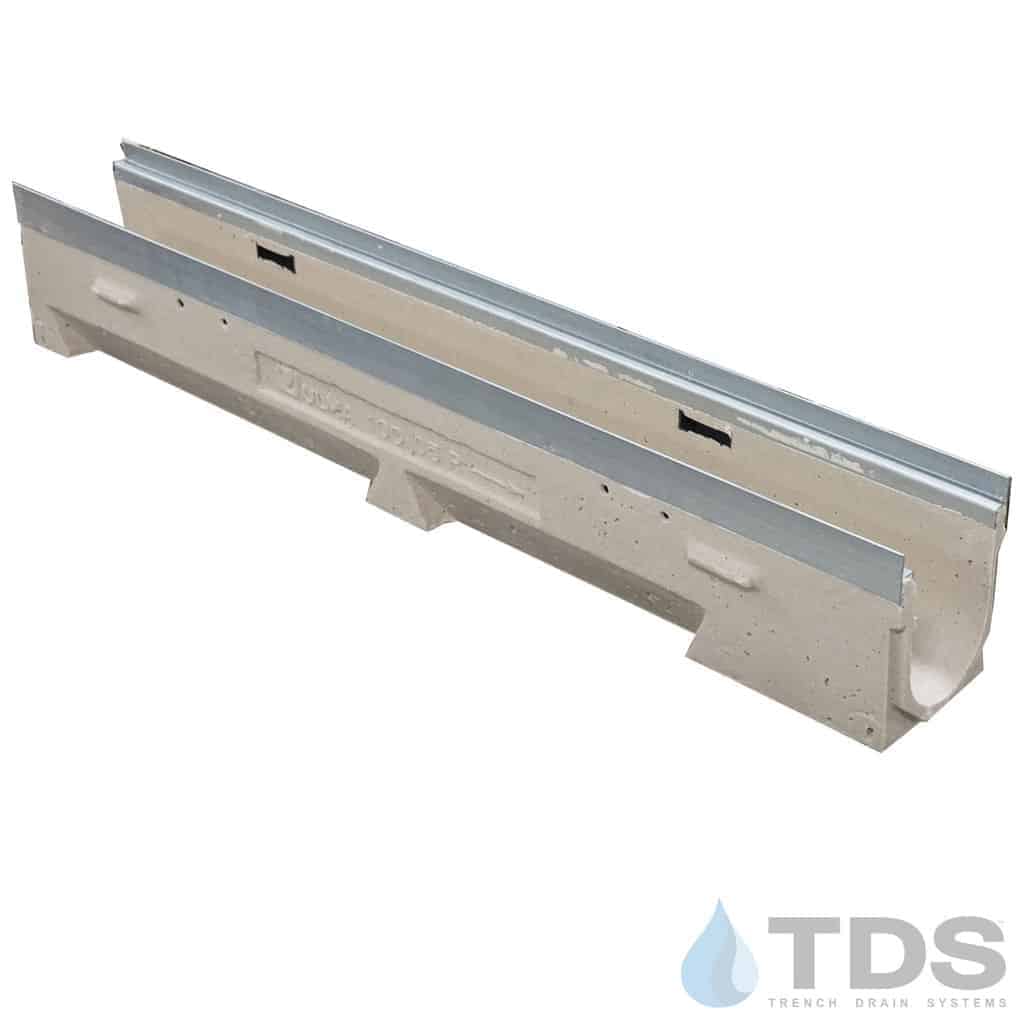

ULMA U100KX Polymer concrete Linear Drainage Channel with integral Stainless Steel Edging. External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rainwater in 1 meter long units. Locking system consists of locking bar CS 100 and screws.

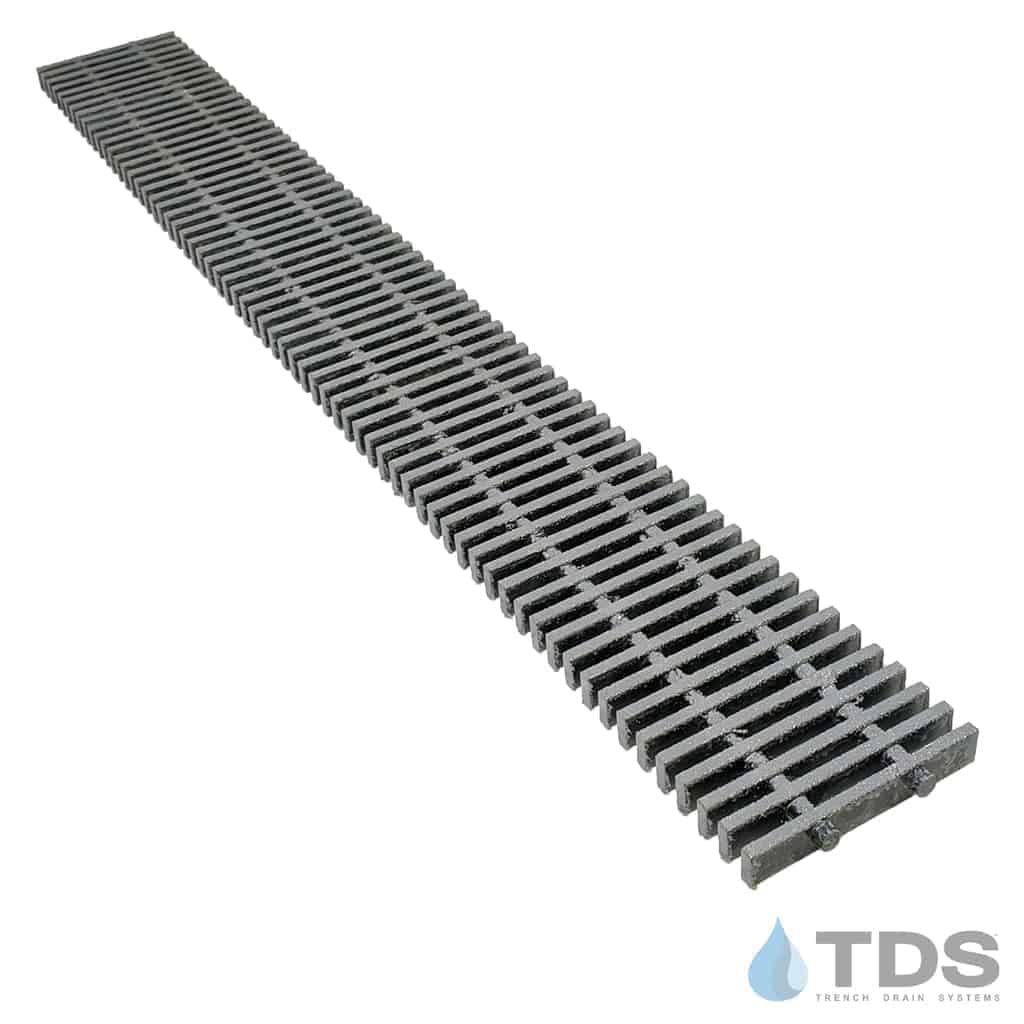

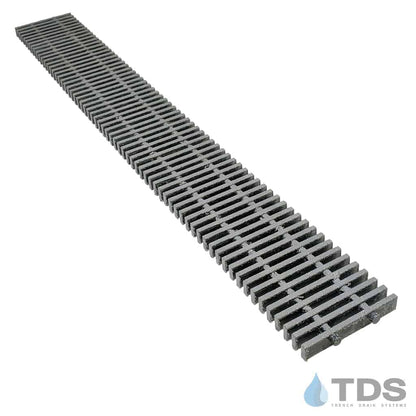

Vinyl Ester FRP 0.6"Center Grate (1M length) has a gritty surface for better traction. The vinyl ester composition allows the grate to have a higher resistance to harsh chemicals and temperatures. Load Class C.

For more information about the ULMA U100KX system, CLICK HERE.
