ULMA U100KX Kit with TDS 486 Vinyl Ester Bar Center Grate 0.9" on Center - Class B

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100KX

Grate Load Class: Class B

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

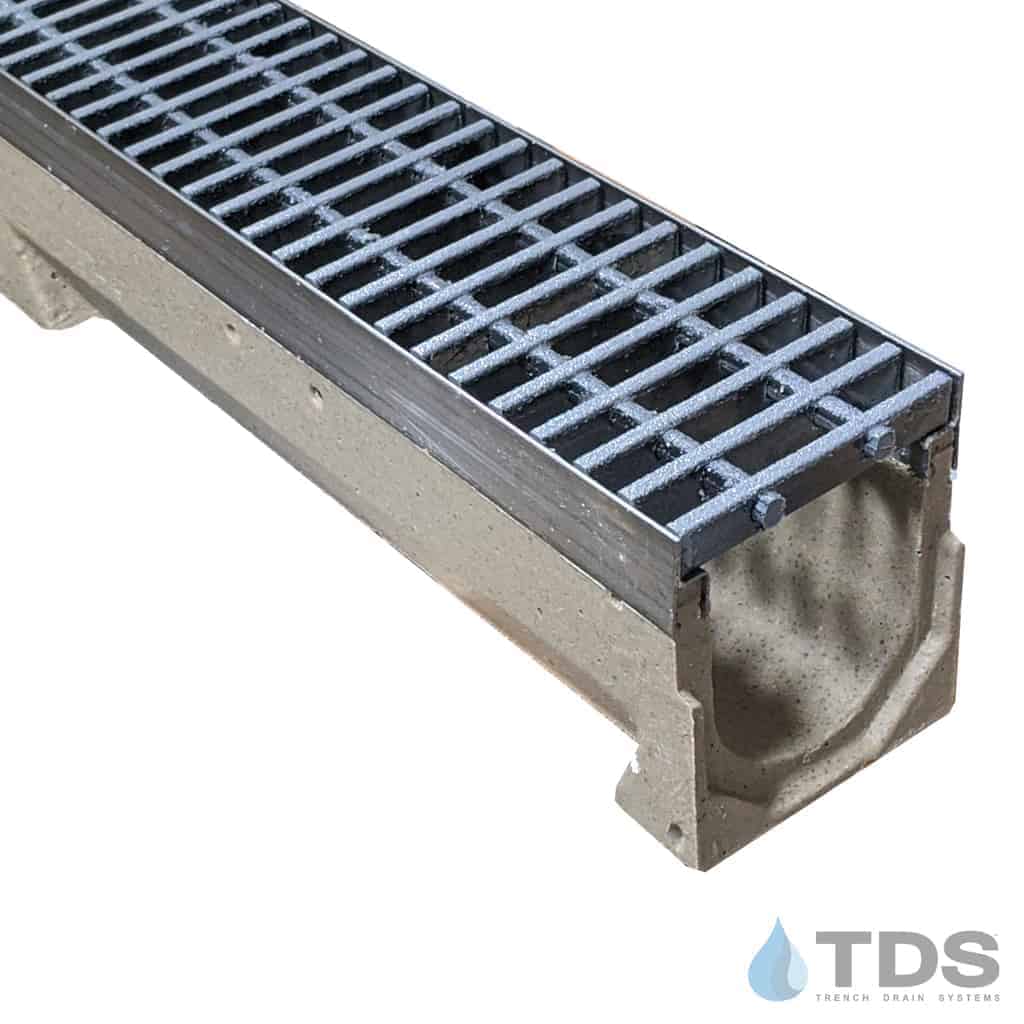

ULMA U100KX channel with Vinyl Ester FRP grate 0.9″ center (1M), Load Class B

ULMA U100KX Polymer concrete Linear Drainage Channel with integral Stainless Steel Edging. External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rainwater in 1 meter long units. Locking system consists of locking bar CS 100 and screws.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channels)
• End Outlet (not included with half channels)

Half Meter/2-foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

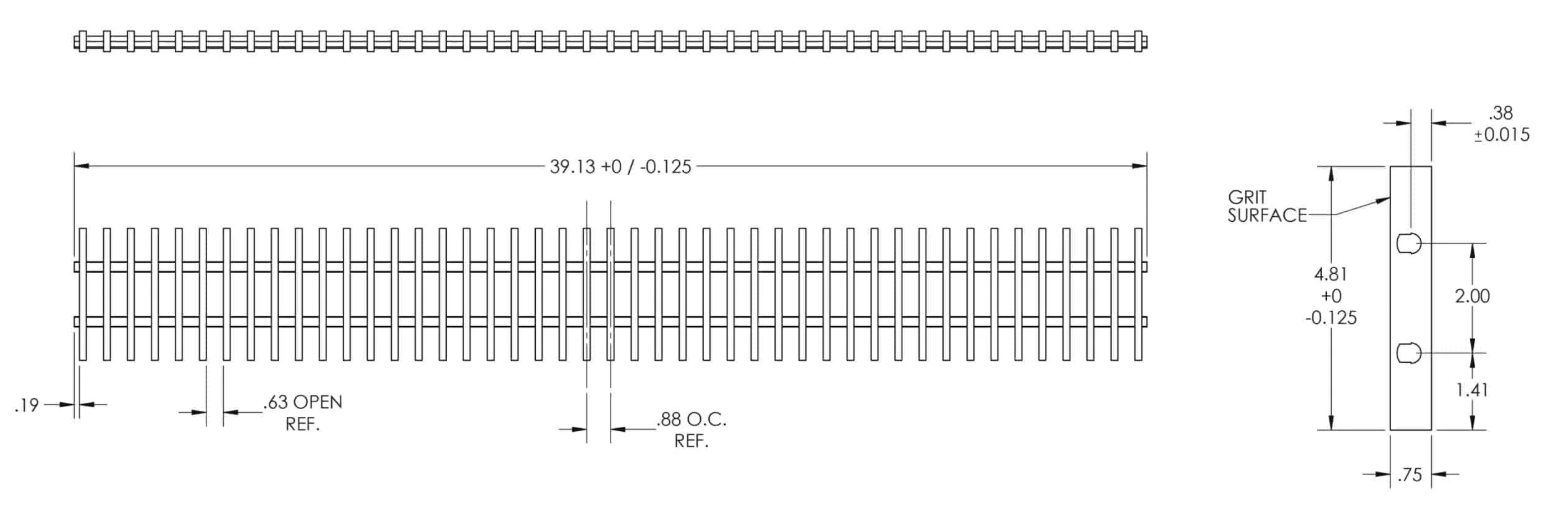

ULMA has a wide variety of grating options for its 100mm (3.94″) wide channels. Included is the Vinyl Ester FRP (1M) 0.9" Center Grate which has a gritty surface for better traction. This grate is 122mm (4.8″) wide and 1M (39.3″) in length and has a Load Class B rating.
