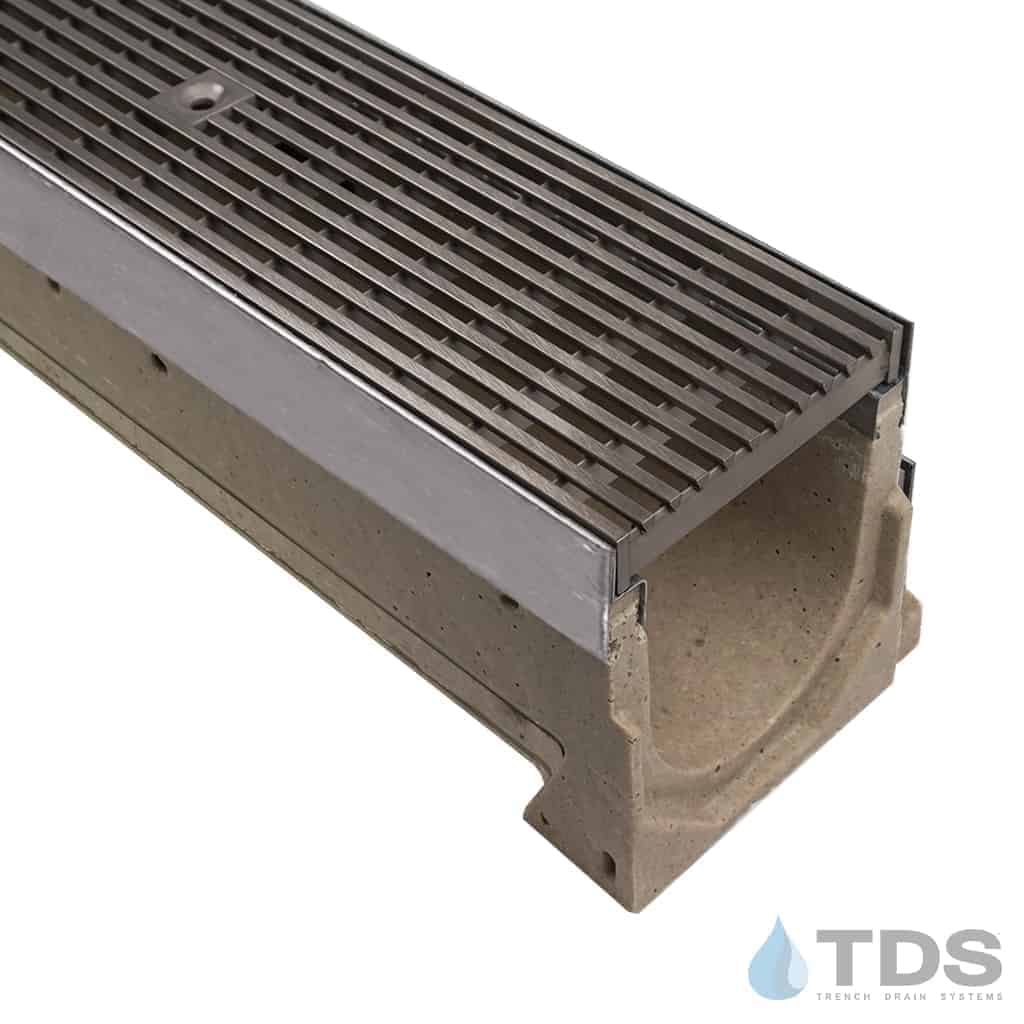

ULMA U100KX Kit with TDS 436 Stainless Steel Wedge Wire Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100KX

Grate Load Class: Class B

Grate Pattern: WEDGE WIRE

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel(s), grates, locking devices, and installation chairs

Class B Load Rating

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% pre-sloped channels to collect rainwater in 1 meter long units. The locking system consists of locking bar CS 100 and screws. Stainless Steel channel edge.

This kit includes the 316L Stainless Steel Wedge Wire Grate which measures 122mm (4.80") wide and 997.84mm (39.29") in length. This ADA compliant grate has a Load Class B rating for walkways, any pedestrian areas, car parks or parking decks where only occasional vehicular access is likely. Ideal for corrosive environments such as pools, spas, kennels, zoos, breweries, wineries and food processing facilities. Grate locking devices are included.

Stainless Steel Wedge Wire 436 (1M) Spec Sheet

ULMA U100K Submittal Package
