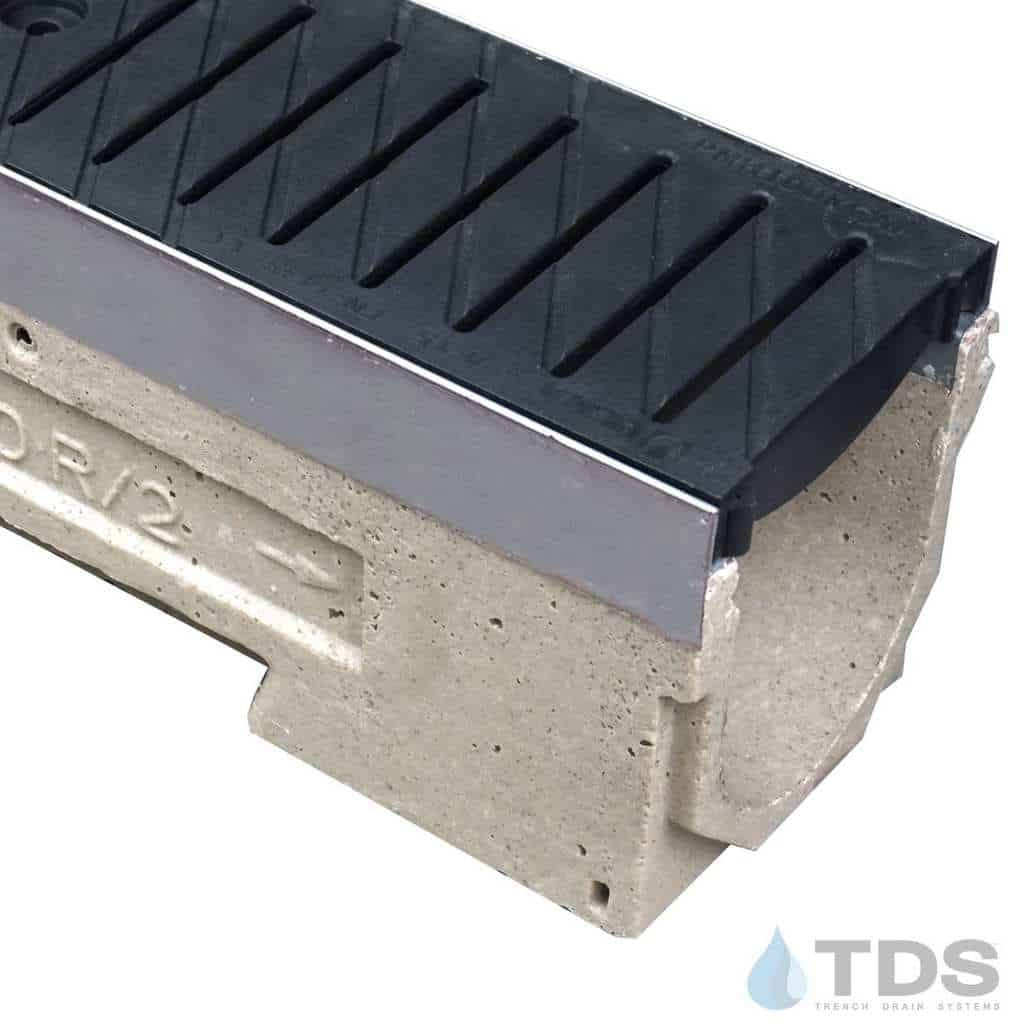

ULMA U100KX Kit with 494 / PNH100KCAM Polypropylene ADA Heel Proof Grate – BLACK

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Black

Manufacturer: ULMA

System: U100KX

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

This pre-sloped polymer concrete trench drain kit uses the ULMA Type U100KX channel with integral stainless steel edging for a smooth look and lateral protection. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. The locking system consists of a locking bar CS100 and hex head screws. Installation hardware is included.

Ulma has a wide variety of drain gratings for their 00 mm wide channels. This kit includes a standard, 494 slotted polypropylene grate (ULMA Number PNH100KCAM). The grates are 123 mm wide and 500 mm in length. Two grates are required for each one-meter Ulma channel. Grates are available in black and gray and have a load class A rating.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)
