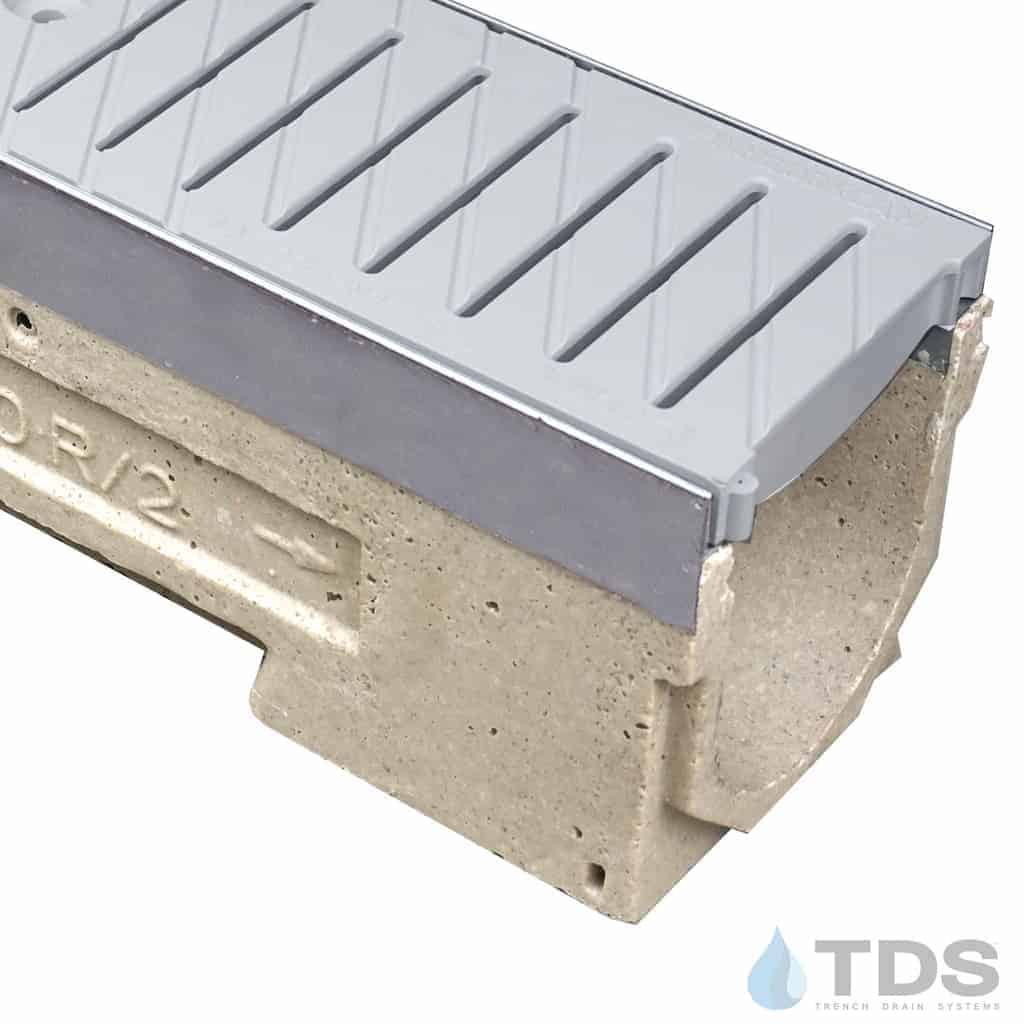

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100KX channel with integral stainless steel edging for a smooth look and lateral protection. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws. Installation hardware is included.
ULMA has a wide variety of drain gratings for their 100 mm wide channels. This kit includes a standard, 495 slotted polypropylene grate (ULMA Number PNH100KCAM). The grates are 123 mm wide and 500 mm in length. Two grates are required for each one-meter ULMA channel. Grates are available in black and gray and have a load class A rating.
The 0.5meter extension kit is intended to be an extension to the standard length kits and do not include the end cap/outlet. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
