ULMA U100KX Drainage Kit with Stainless Steel Mesh 432 Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: ULMA

System: U100KX

Grate Load Class: Class B

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

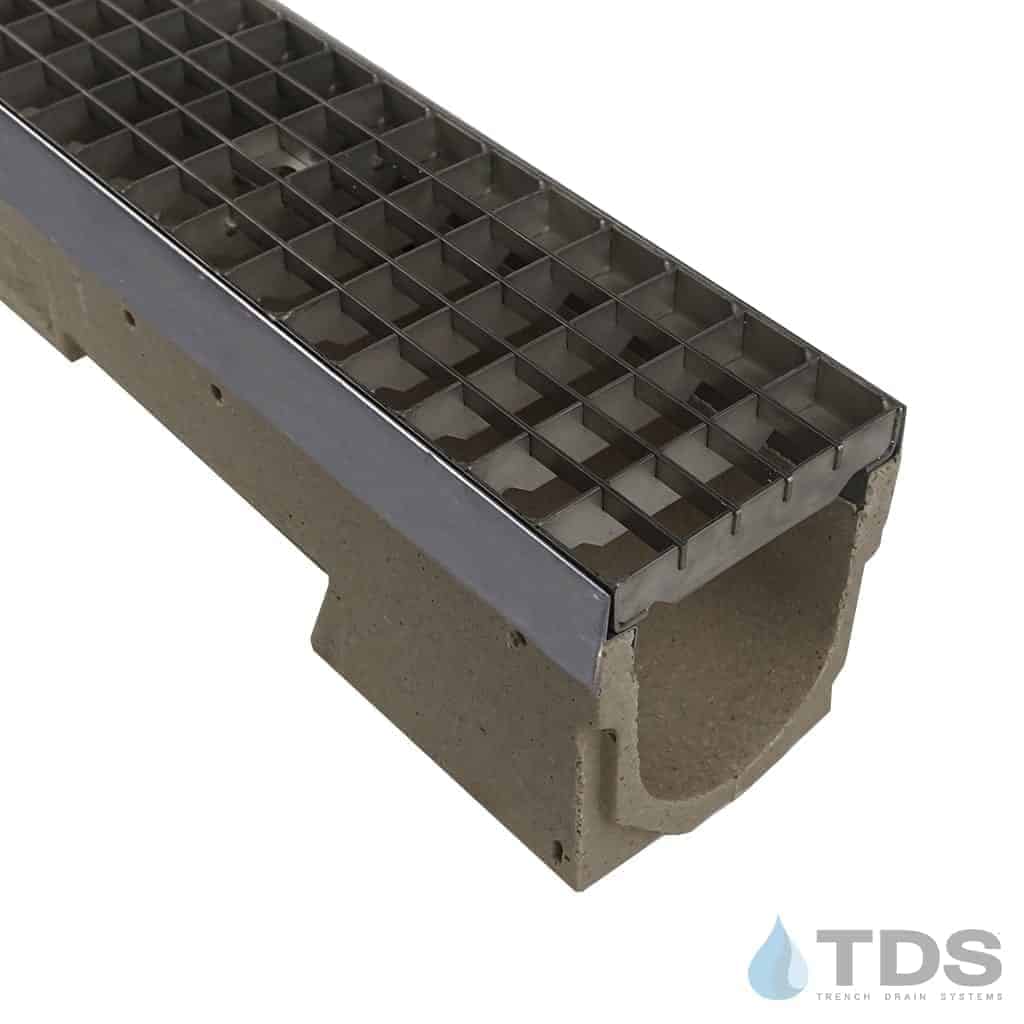

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100KX channel with integral stainless steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. Locking system consists of the stainless steel locking bar CX100 and hex head screws. Installation hardware is included.

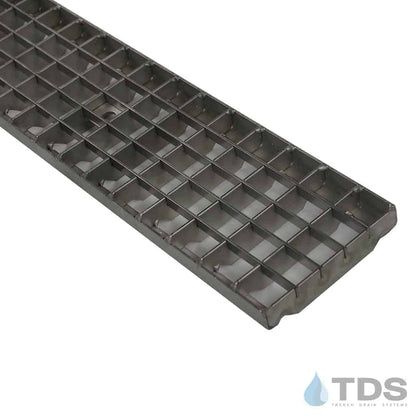

ULMA has a wide variety of drain gratings for their 100 mm  wide channels. This kit includes a standard, 432 stainless steel mesh grate (ULMA Number IEX100KCB). This grate is has a load class B rating and measures 124 mm wide and 999 mm in length. One grate is required for each one meter ULMA channel.

U1KX-450-01 U1KX-450-02 U1KX-450-03 U1KX-450-04  U1KX-450-05 U1KX-450-12
