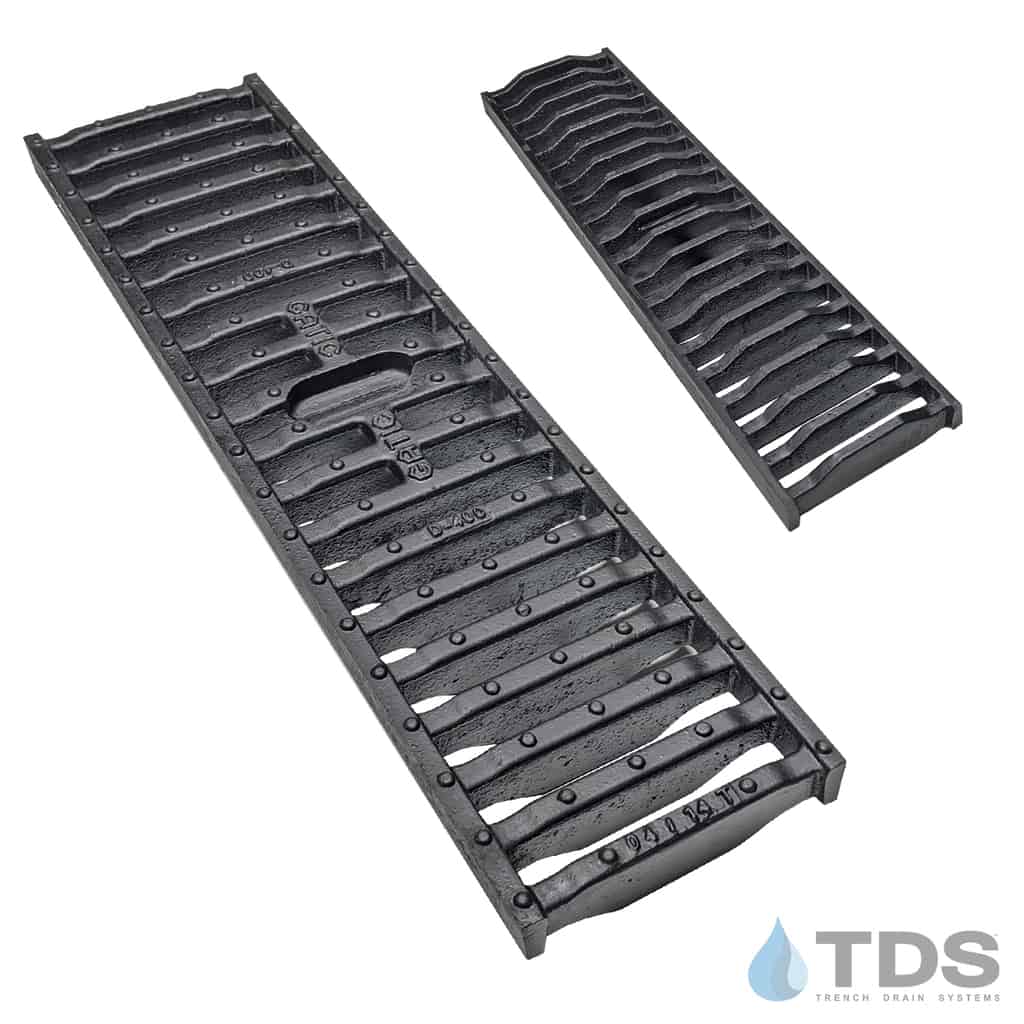

ULMA U100KX Drainage Kit w/TDS 462G Ductile Iron Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100KX

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

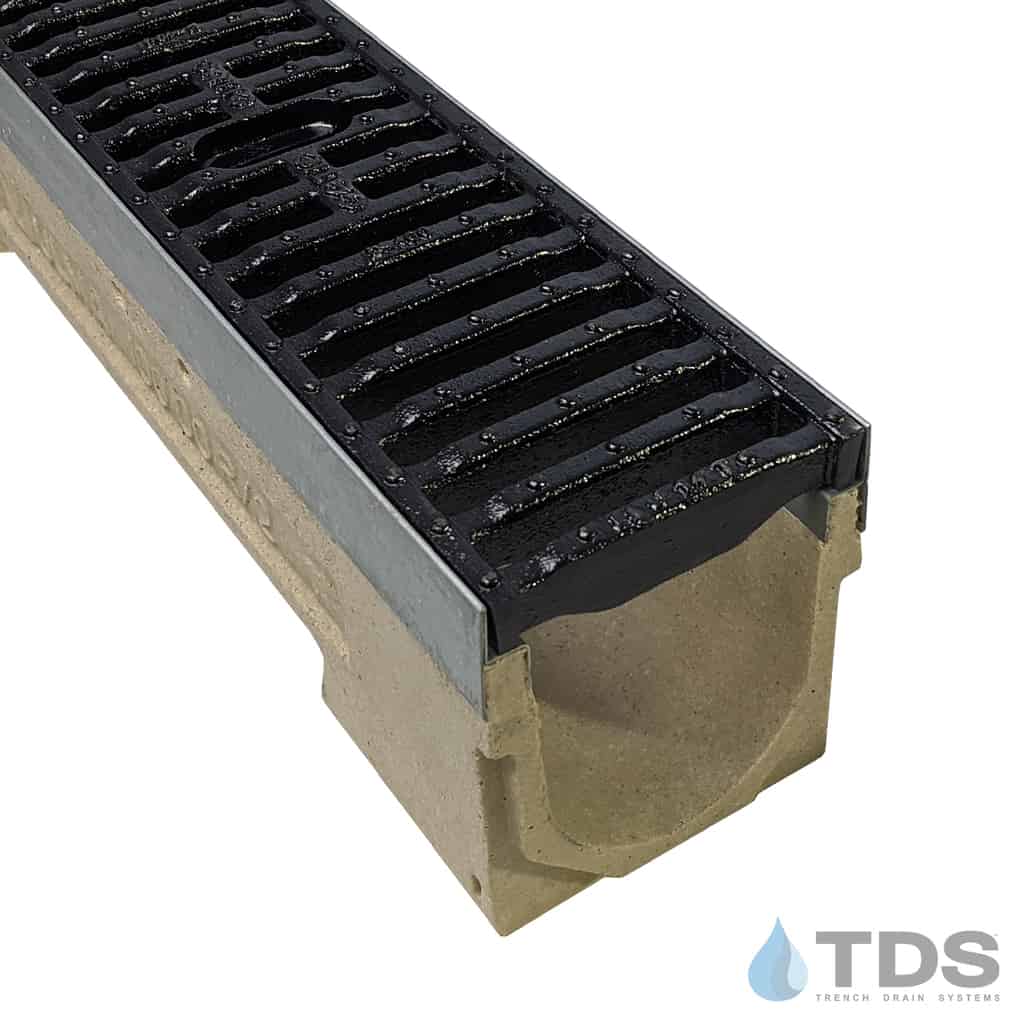

This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100KX channel with integral stainless steel edging.  It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm.  Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws.  Installation hardware is included.

Specification Sheet : TDS 462G Grate

LD100X-3 locking device
