ULMA U100KX Drain Channel w/ Iron Age Minnione Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: U100KX

Grate Load Class: Class B

Grate Pattern: MINNIONE

Grate Pattern Style: ABSTRACT

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

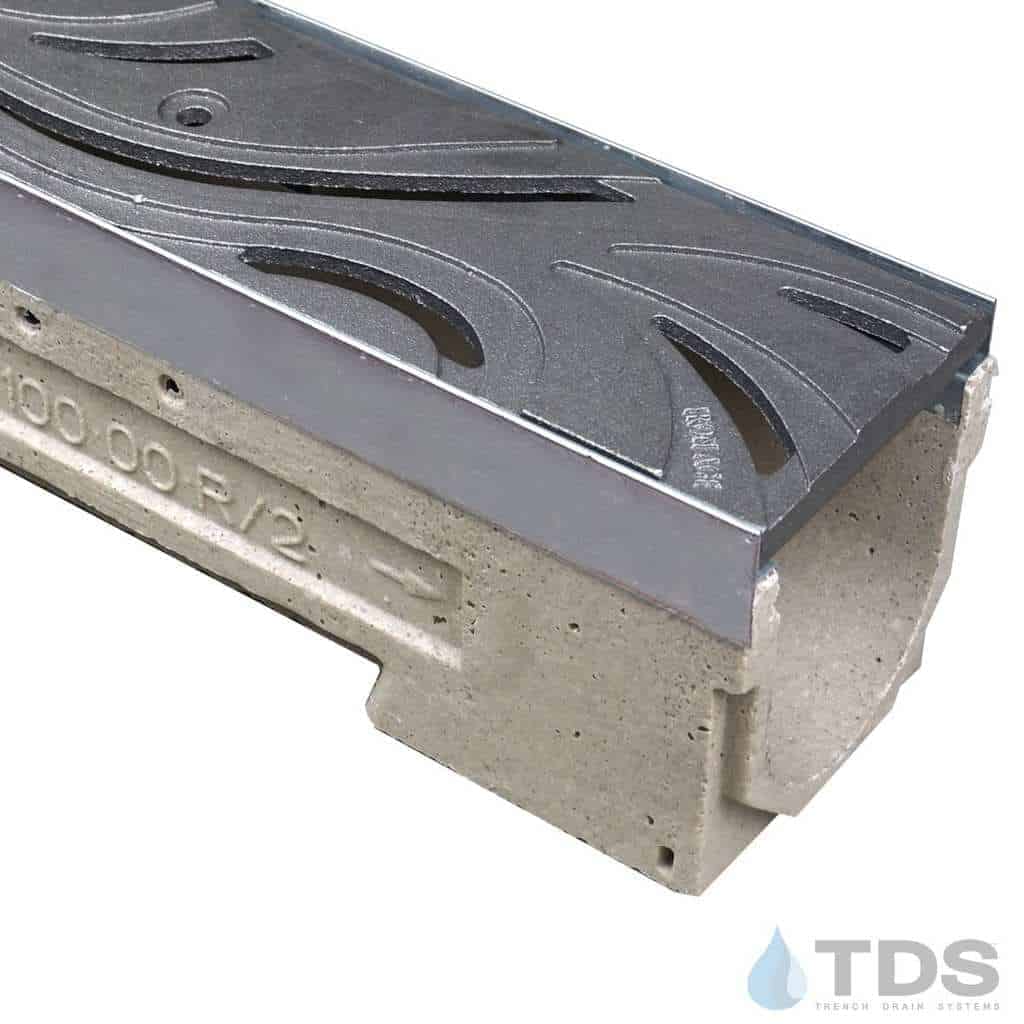

This pre-sloped polymer concrete trench drain kit uses the ULMA U100KX channel with integral stainless steel edging.

Channels are available in 1/2-meter (without end cap or outlet) or a full 1-meter length with a 0.5% slope. It has an external width of 130 mm, an internal width of 100 mm.

The locking system consists of locking bar CS100 and hex head screws. Installation hardware included.

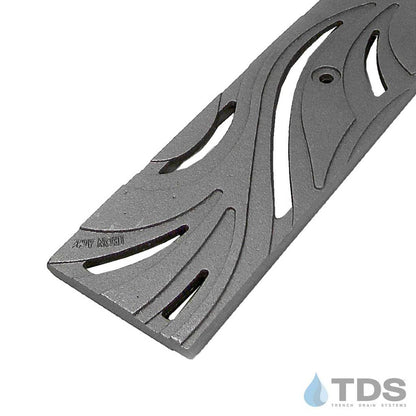

This kit has the Minnione pattern, which is available in either the raw casting or Baked on Oil Finish (BoOF).

Specification Sheet for IA-MIN-0520

Actual Grate Dimensions: 4.81" [122mm] x 19.43" [498mm] x .81" [20.57mm]

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channels)
• End Outlet (not included with half channels)

Half Meter/2-foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
