ULMA U100KX Drain Channel w/ Iron Age Argo Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and Iron Age Designs

System: U100KX

Grate Load Class: Class B

Grate Pattern: ARGO

Grate Pattern Style: ABSTRACT

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

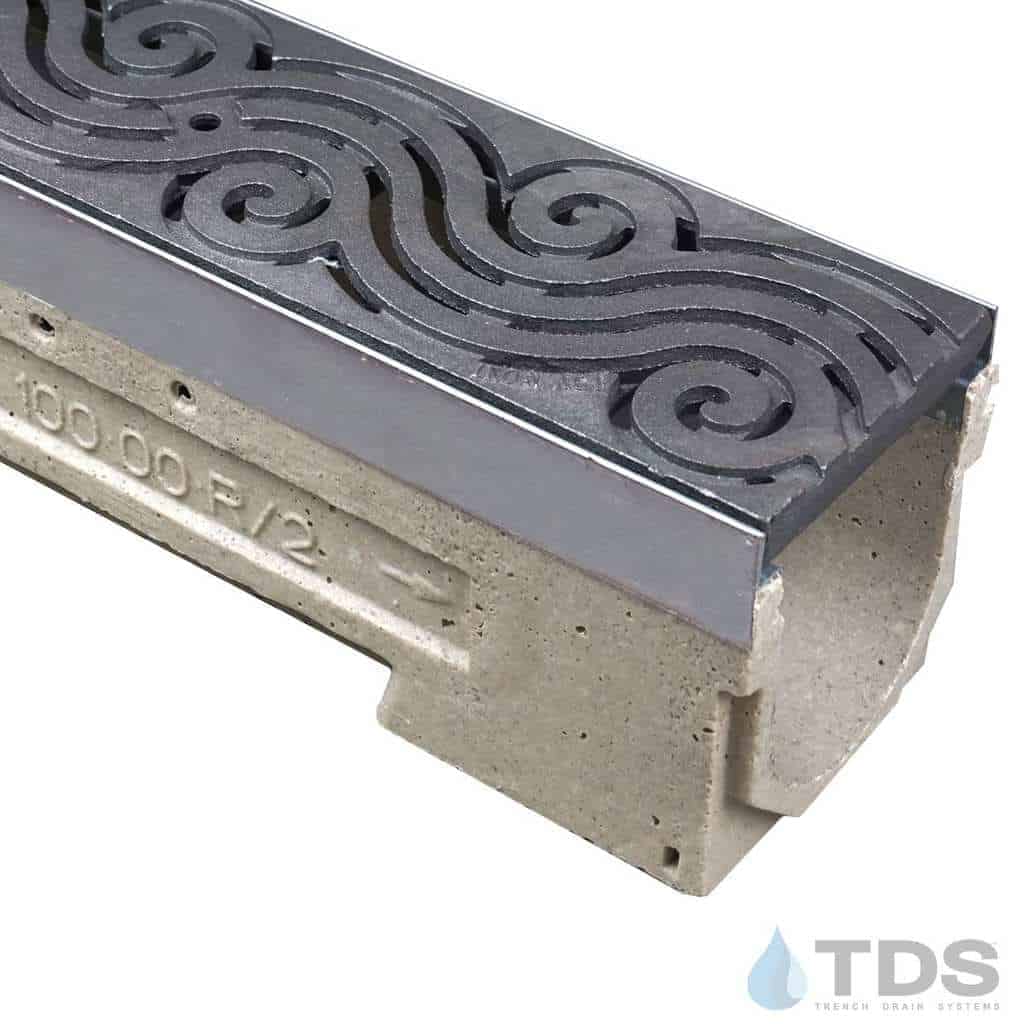

This pre-sloped polymer concrete trench drain kit uses the ULMA Type U100KX channel with integral stainless steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. The locking system consists of a locking bar CS100 and hex head screws. Installation hardware is included.

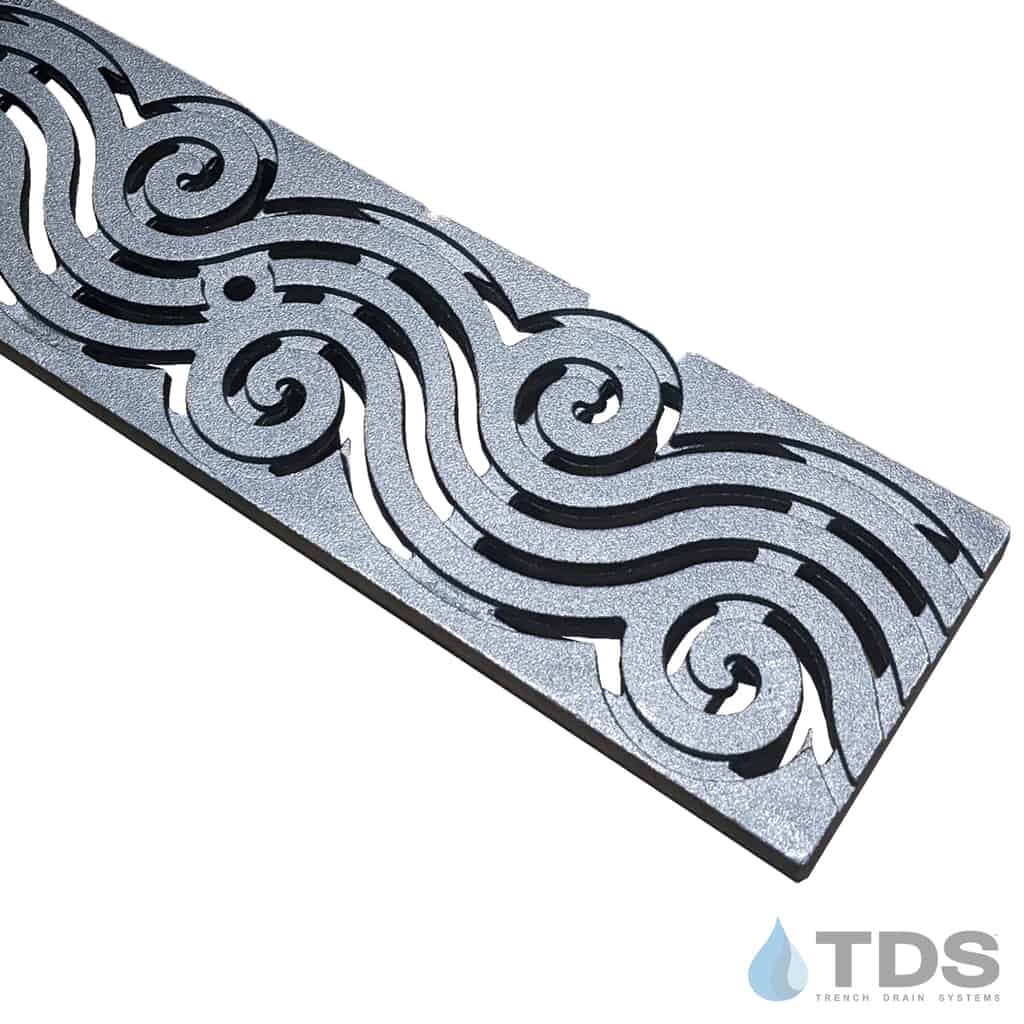

Ulma's U100KX channel fits Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm. This kit has the heel proof Argo pattern, which is available in either the raw casting or Baked on Oil Finish (BooF)

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Half Meter/2-foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
