ULMA U100KX Drain Channel kit w/Bronze Age™ WAVE Grate-RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100KX

Grate Load Class: Class C

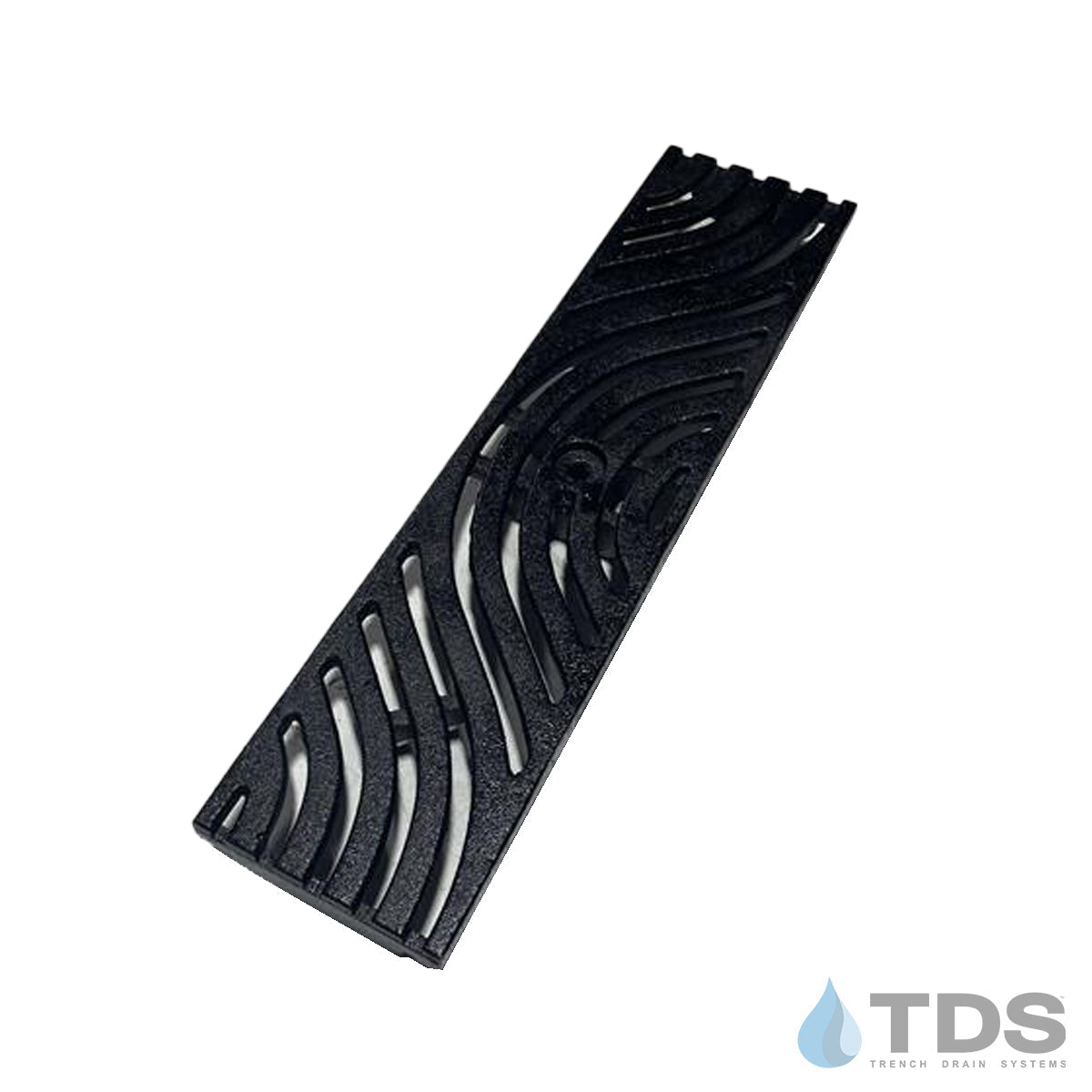

Grate Pattern: WAVE

Grate Pattern Style: NATURE

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

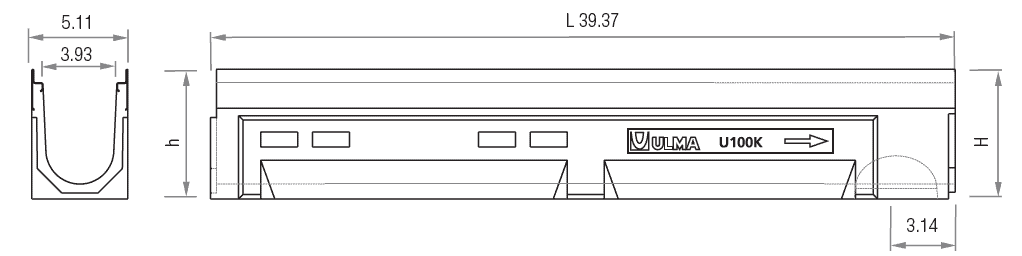

This pre-sloped polymer concrete trench drain kit uses the ULMA U100KX channel with integral stainless steel edging and TDS exclusive Wave pattern decorative grating. The channel has an external width of 130 mm (5.11") and an internal width of 100 mm (3.93"). Channels are 1 meter (approximately 3.3') in length and have a 0.5% slope.

Specification Sheet for BA-WAVE-0520

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)

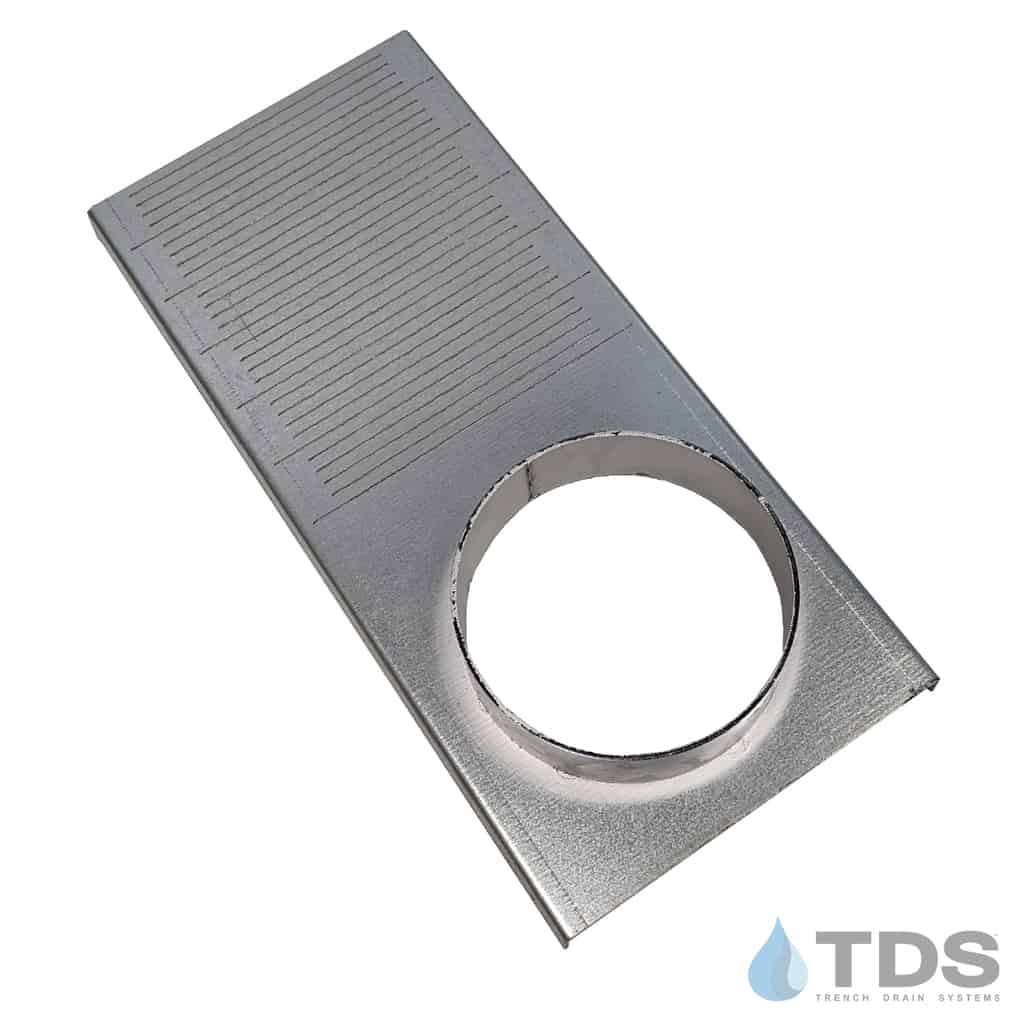

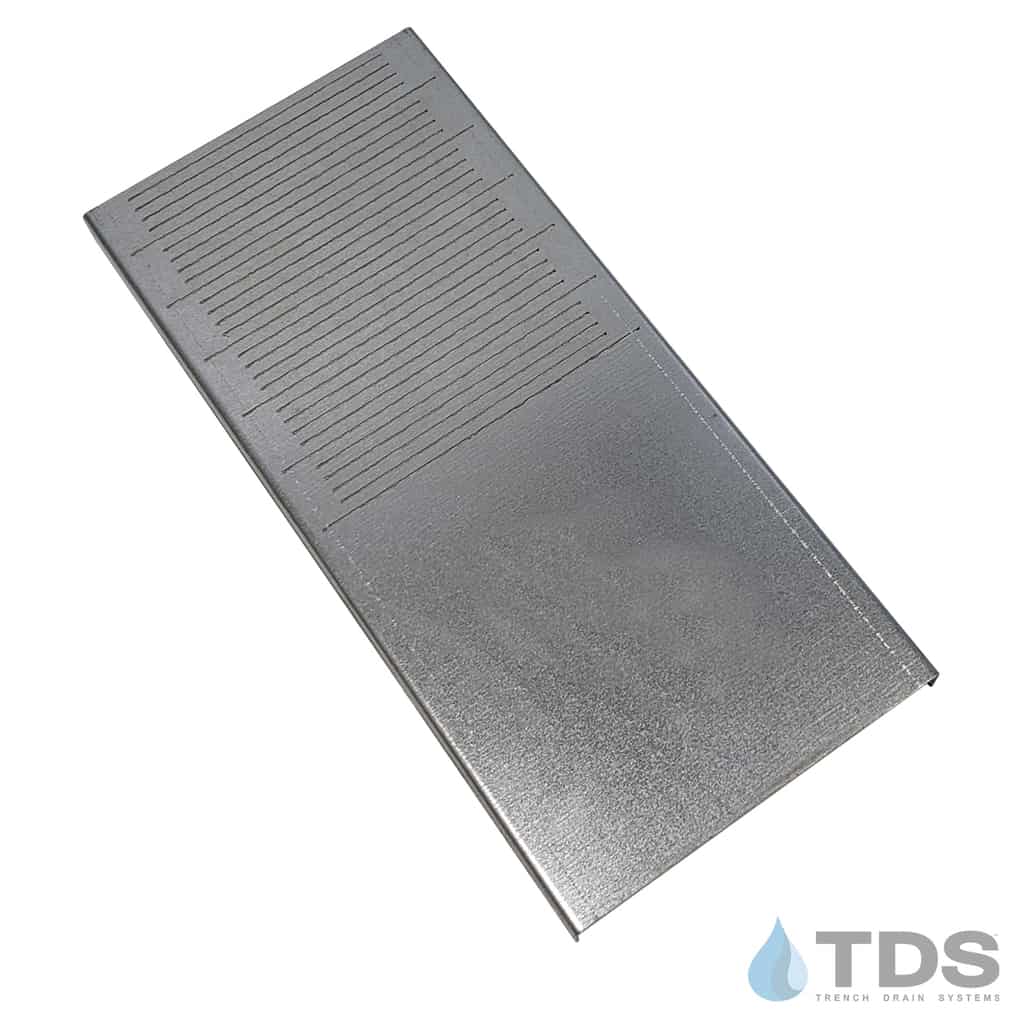

• End Cap (not included with half channels)
• End Outlet (not included with half channels)

Half Meter/2-foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Large Project? Request Quote!

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

Grating is also available in a Baked-on Oil Finish. Request your quote today!
