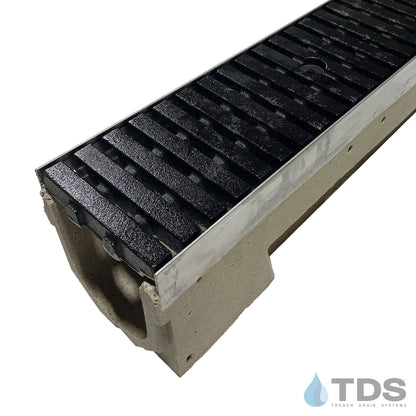

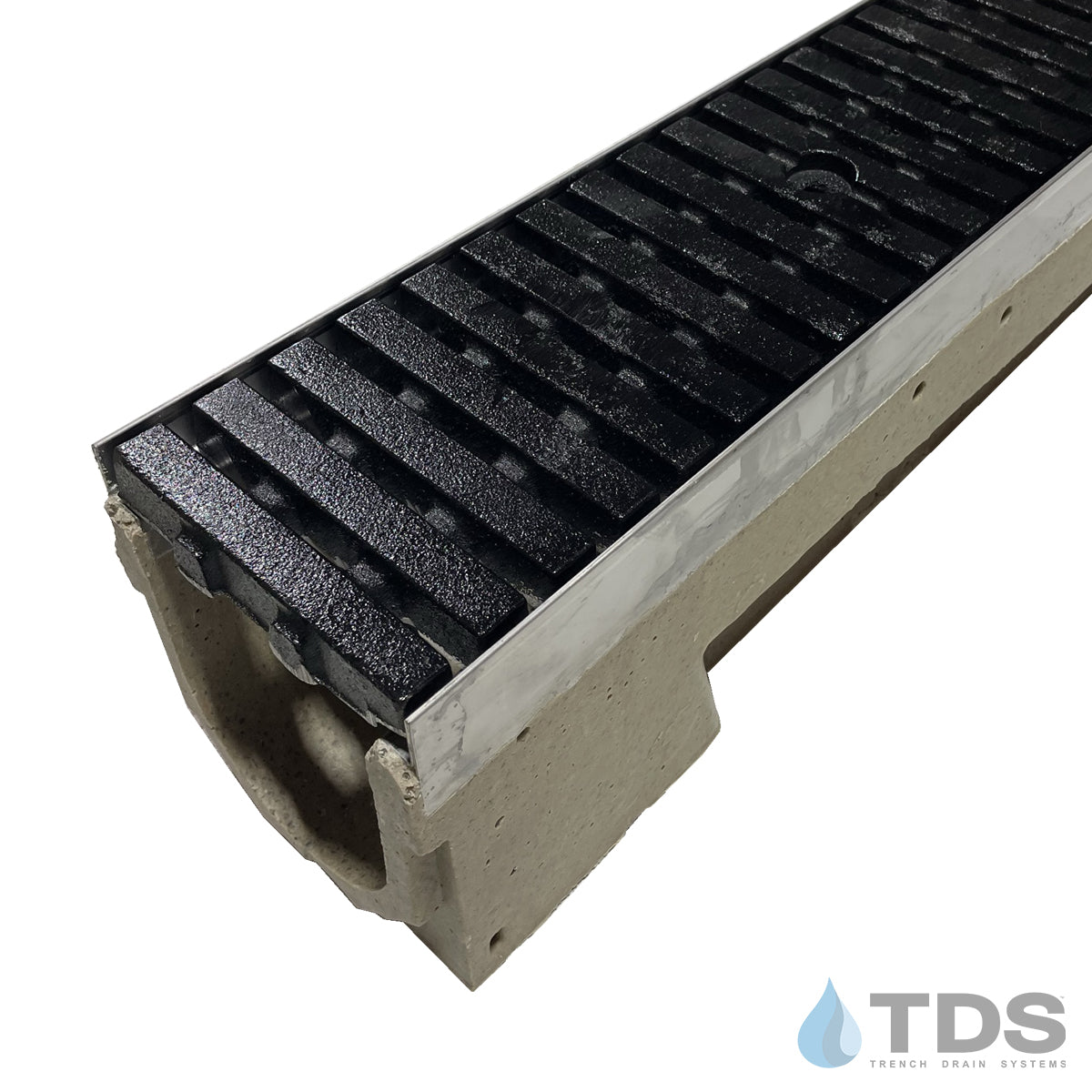

ULMA U100KX Drain Channel kit w/Bronze Age™ PEDREDA Grate-RAW

Additional Information

Grate Width: 4.81"
Grate Thickness: 0.75"
Product Type: Channel Kit, Kit
Grate Material / Color / Finish: Ductile/Cast Iron - Raw
Manufacturer: ULMA, TDS
System: U100KX, Bronze Age
Grate Load Class: D
Grate Pattern: PEDREDA
Grate Pattern Style: SLOTTED
Channel Material: Polymer Concrete - Polyester
Channel Frame / Edging: Stainless
Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

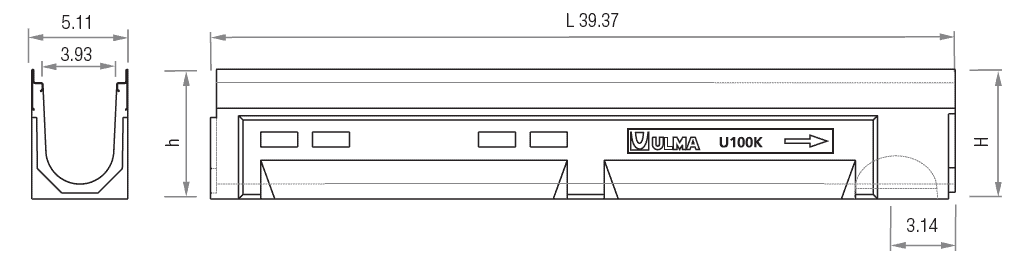

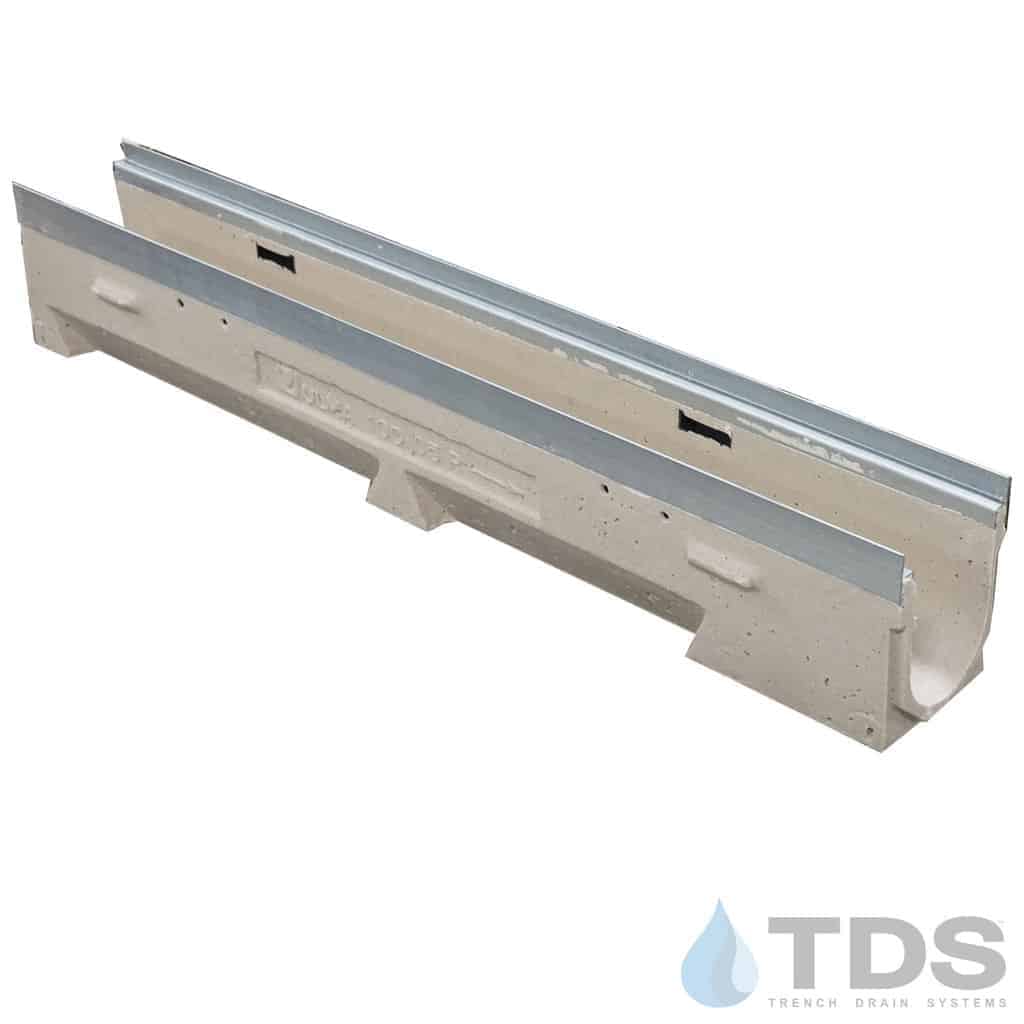

This pre-sloped polymer concrete trench drain kit uses the ULMA U100KX channel with integral stainless steel edging and TDS-exclusive Pedreda pattern decorative grating. The channel has an external width of 130 mm (5.11") and an internal width of 100 mm (3.93"). Channels are 1 meter (approximately 3.3') in length and have a 0.5% slope.

Each Kit Includes :

Channel(s)
Grate(s)
Installation chair(s)
Locking device(s)

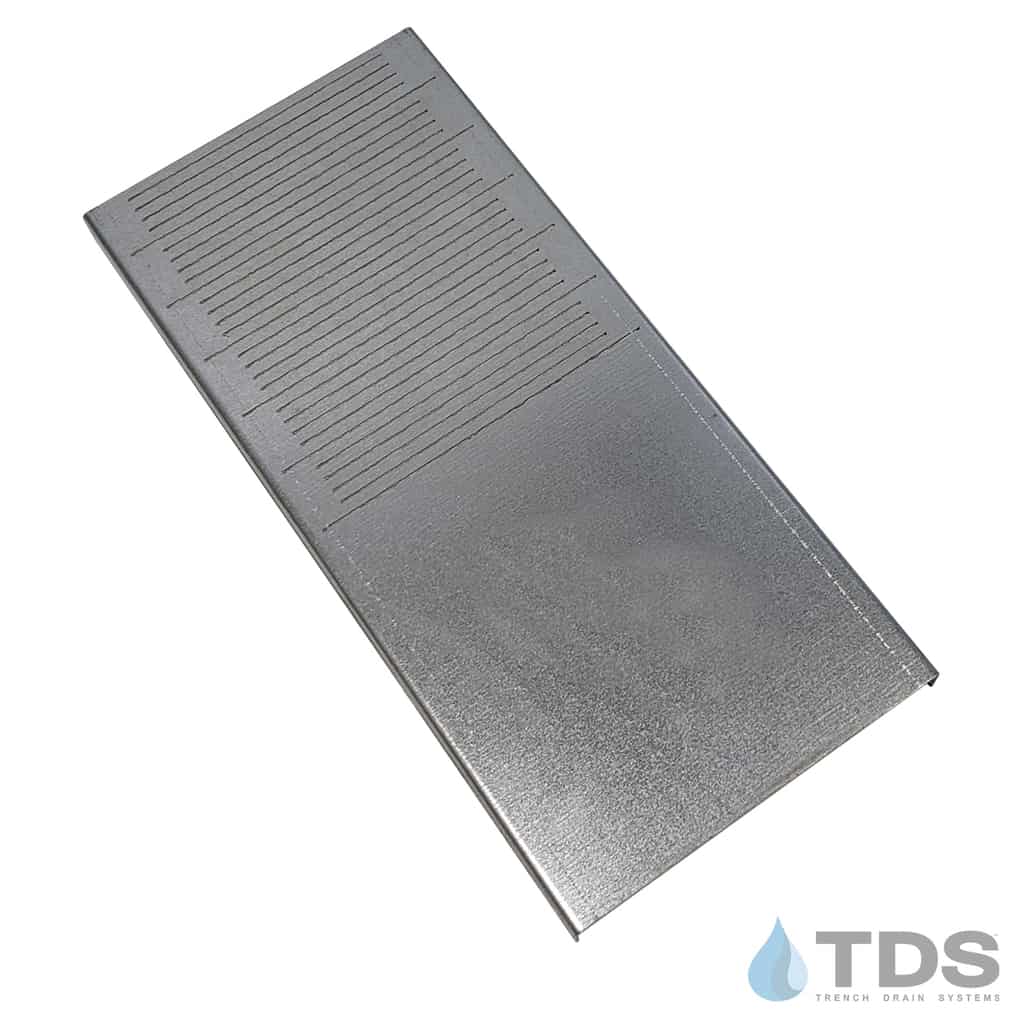

End Cap (not included with half channels)

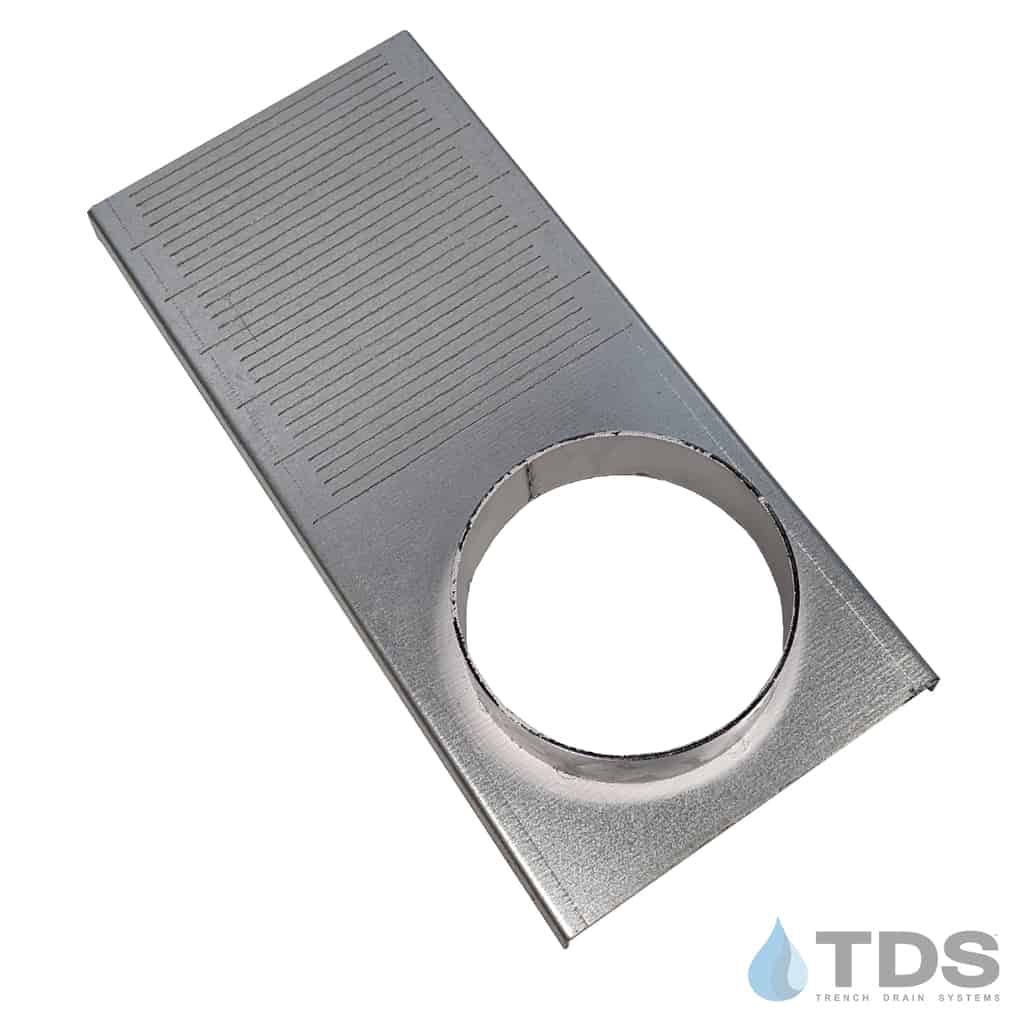

End Outlet (not included with half channels)

Specification Sheet for BA-PED-0520

Also available in Baked on Oil Finish. Click here for a quote request.

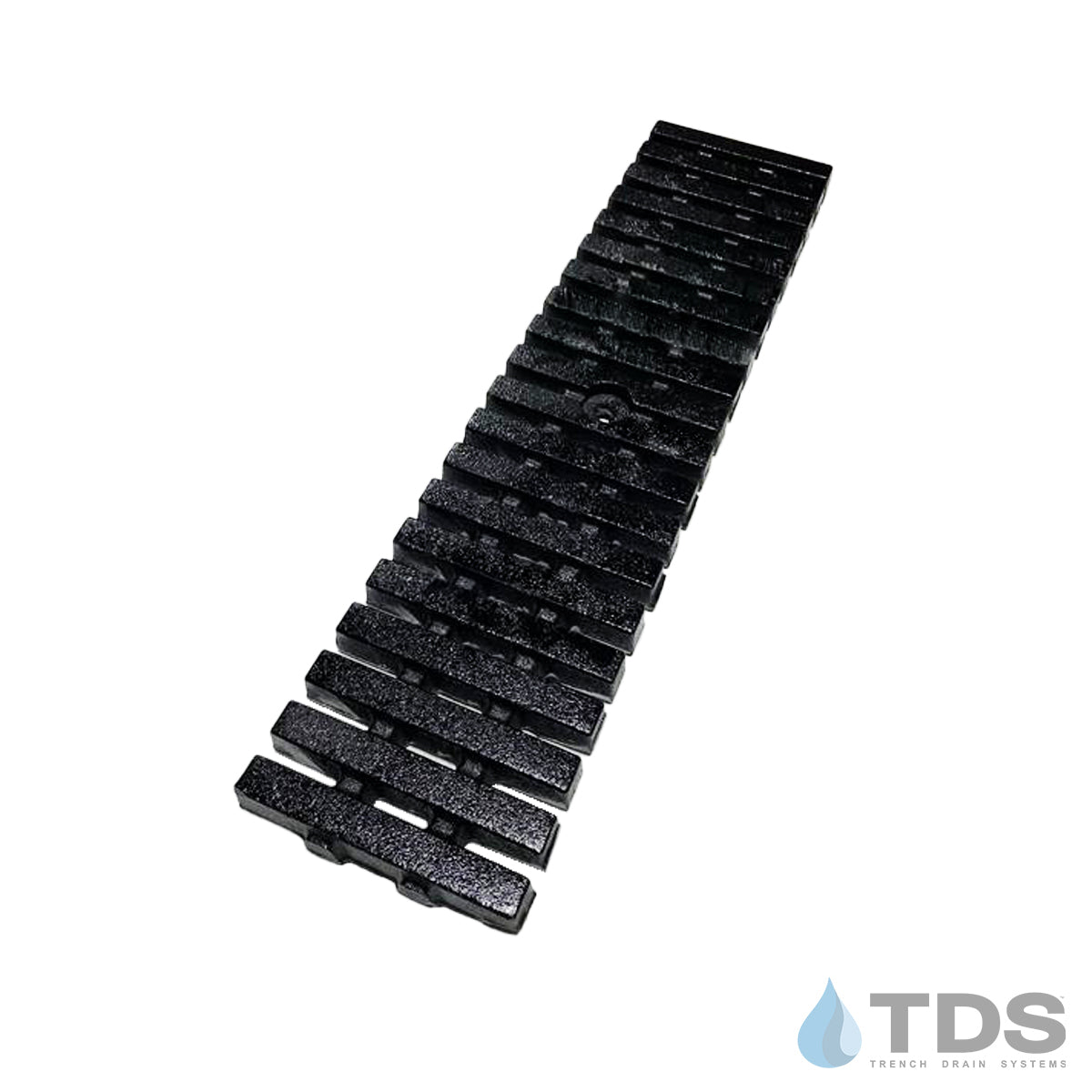

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.
