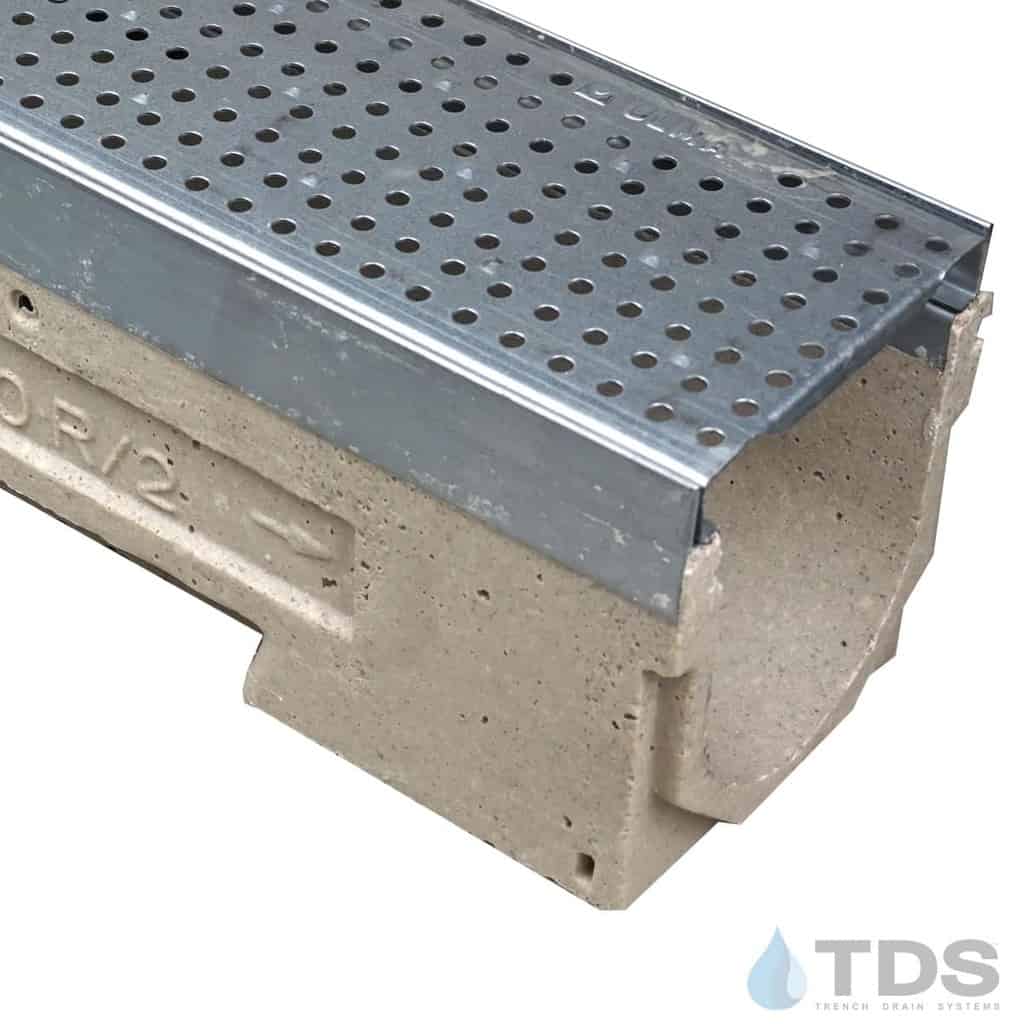

ULMA U100K Drainage Kit with ULMA 410 Perforated Grate | Galvanized Class A

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: U100K

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% Pre-sloped channels to collect rain water in 1 meter long units. Locking system consists of locking bar CS 100 and screws. Grate has a traffic Load Class rating of A.

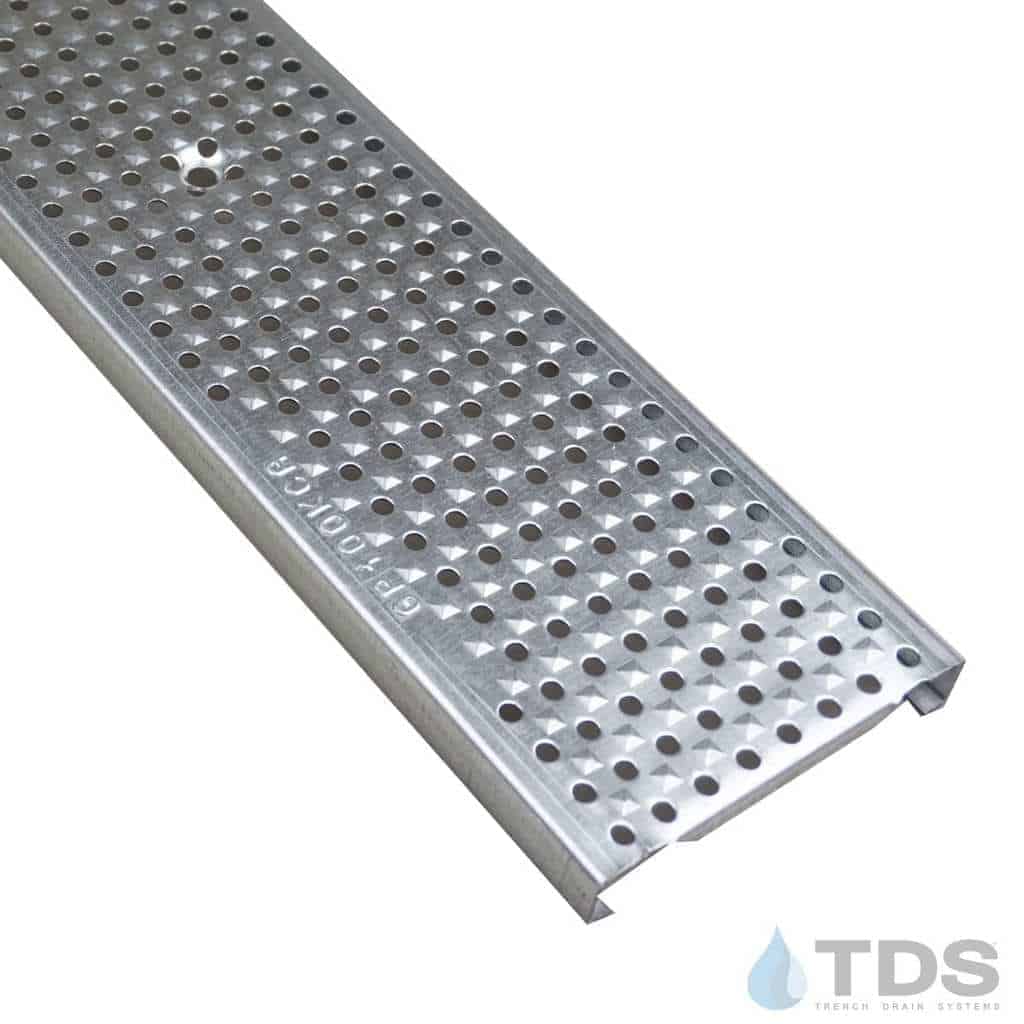

ULMA grate part no.: GP100KCA
TDS grate part no.: 410
Load Class A
