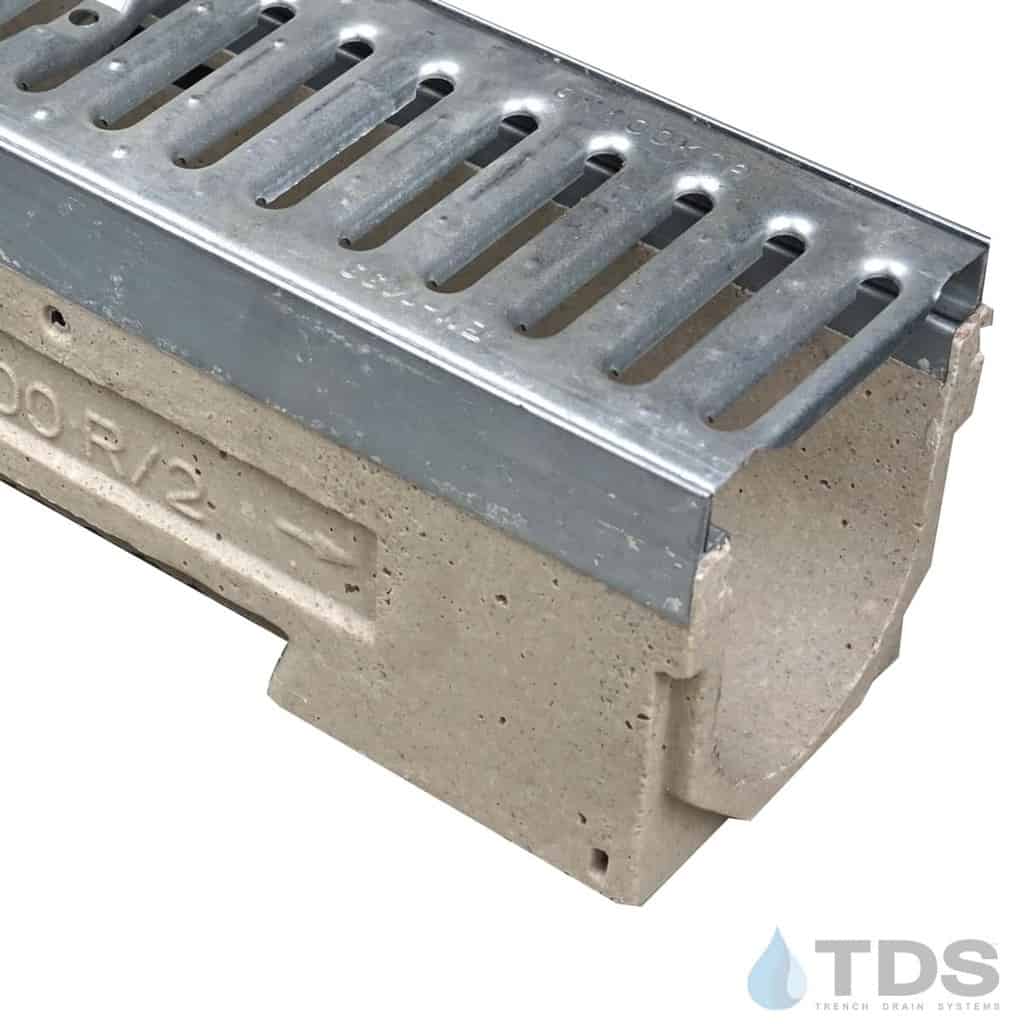

ULMA U100K Drainage Kit with ULMA 420 Slotted Grate | Galvanized Load Class A

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: ULMA

System: U100K

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% Pre-sloped channels to collect rainwater in 1 meter-long units. Locking system consists of locking bar CS 100 and screws.

ULMA grate part no.: GN100KCA
TDS grate part no.: 420

Galv. Steel Slotted Grate.
