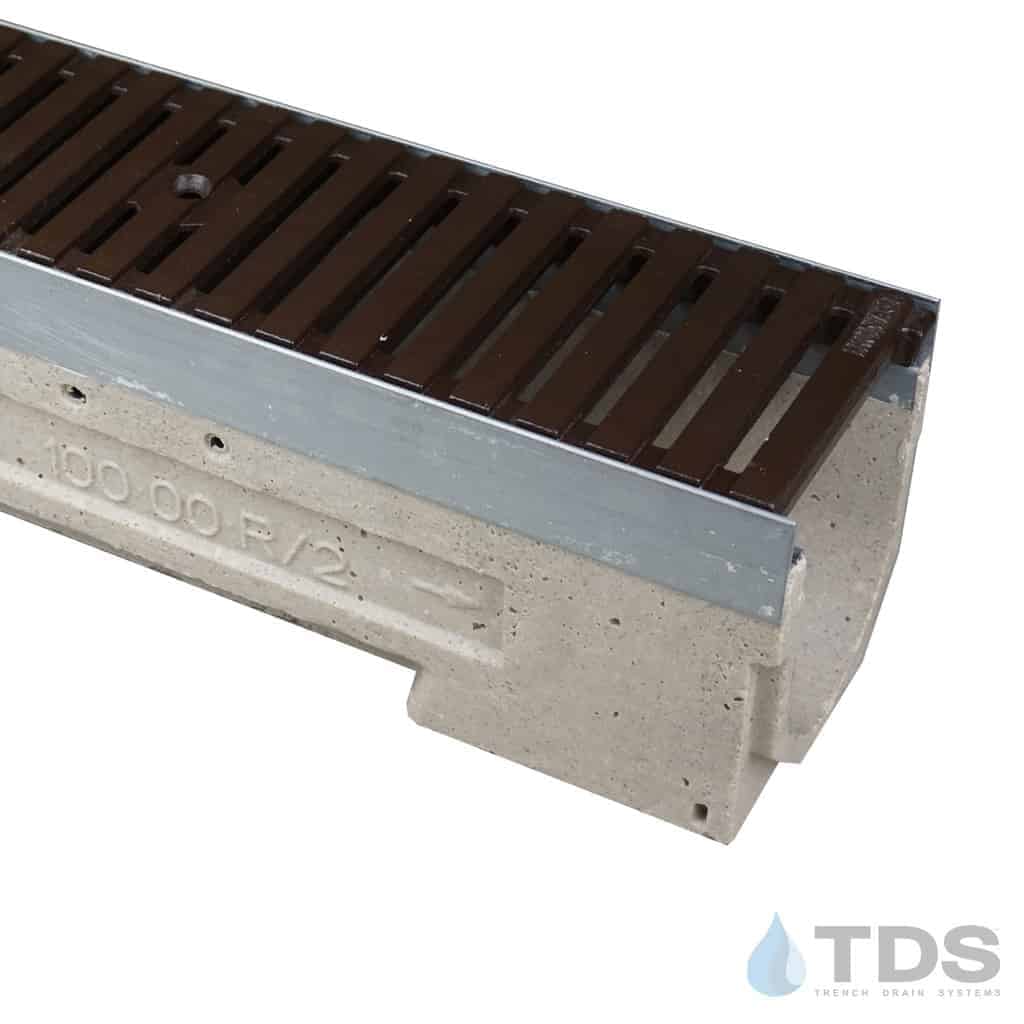

ULMA U100K Drainage Kit with Iron Age Regular Joe Grate | Baked on Oil Finish

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: ULMA and Iron Age Designs

System: U100K

Grate Load Class: Class B

Grate Pattern: REGULAR JOE

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kit includes channel section(s), grate(s), end inlet cap, end outlet cap, locking devices

Polymer concrete Linear Drainage Channel ULMA, type U 100: External width 130 mm; Internal width 100 mm; Available with overall heights between 130 mm and 280 mm, 0.5% Pre-sloped channels to collect rain water in 1 meter long units. Locking system consists of locking bar CS 100 and screws.

Decorative cast iron trench grate designed to fit the ULMA system and others. The Regular Joe pattern is available in either the raw casting or Baked on Oil Finish (BooF).

What is Baked On Oil Finish (BooF)? Click Here to learn more.
